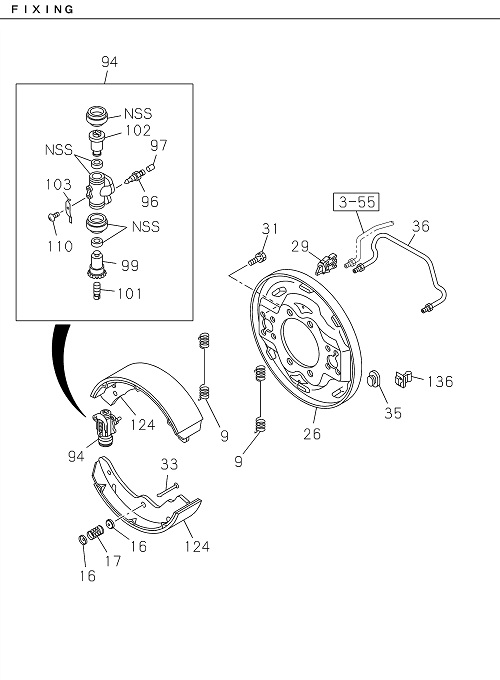

3-05 | REAR WHEEL BRAKE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 026 | I8-97134 732-0 | PLATE BACK,RR BRK | 1 | 1907- | NQR81 | |||
| 124 | I8-97201 061-A | SHOE ASM BRK,RR | 4 | 1907- | NPS81 | |||

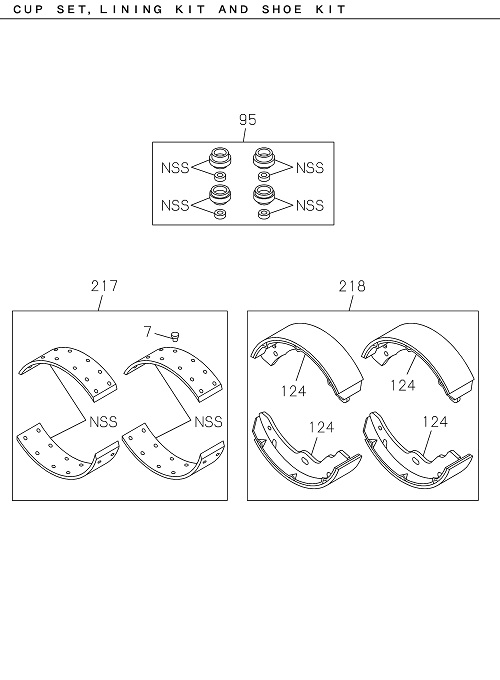

| 218 | I5-87831 693-0 | SHOE KIT BRK,RR | 1 | 1907- | NQR81 | |||
| 110 | I8-94128 727-0 | SCREW LOCK SPRING,RR WHEEL CYL | 4 | 1907- | ALL | |||
| 026 | I8-97223 575-0 | PLATE BACK,RR BRK | 1 | 1907- | NPS81 | |||
| 097 | I8-98050 479-0 | CAP BLEEDER,RR WHEEL CYL | 1 | 1907- | ALL | |||
| 102 | I8-97353 578-0 | PISTON REAR WHEEL CYL | 4 | 1907- | NQR81 | |||
| 124 | I8-97188 455-0 | SHOE ASM BRK,RR | 4 | 1907- | NQR81 | |||
| 036 | I8-97079 847-A | PIPE OIL,RR BRK | 2 | 1907- | NPS81 | |||
| 218 | I6-87831 775-0 | SHOE KIT BRK,RR | 1 | 1907- | NPS81 | (IADG) | ||
| 095 | I5-87832 080-0 | CUP SET RR WHEEL CYL | 2 | 1907- | NQR81 | |||
| 099 | I8-97353 579-0 | PISTON RR WHEEL CYL | 4 | 1907- | NQR81 | |||
| 136 | I8-97044 742-A | GROMMET | 4 | 1907- | ALL | |||
| 094 | I8-97353 570-0 | CYLINDER WHEEL,RR BRK | 2 | 1907- | NQR81 | |||
| 009 | I8-97022 087-A | SPRING RETURN,BRK SHOE | 4 | 1907- | NPS81 | |||
| 026 | I8-97134 731-0 | PLATE BACK,RR BRK | 1 | 1907- | NQR81 | |||
| 103 | I8-94128 486-0 | SPRING LK,RR WHEEL CYL,ADJ | 4 | 1907- | ALL | |||
| 094 | I8-97332 226-0 | CYLINDER WHEEL,RR BRK | 1 | 1907- | NPS81 | REAR | ||
| 101 | I8-94414 702-0 | SCREW ADJ,RR WHEEL CYL | 4 | 1907- | ALL | |||
| 035 | I8-97044 742-A | GROMMET CHECK HOLE | 2 | 1907- | ALL | |||
| 036 | I8-97079 847-A | PIPE OIL,RR BRK | 2 | 1907- | NQR81 | |||
| 218 | I5-87831 775-0 | SHOE KIT BRK,RR | 1 | 1907- | NPS81 | |||
| 124 | I6-97201 061-1 | SHOE ASM BRK,RR | 4 | 1907- | NPS81 | (IADG) | ||
| 016 | I9-47165 096-A | CUP SHOE HOLDING | 8 | 1907- | ALL | |||
| 029 | I8-97022 086-2 | CLIP PIPE,BRK | 2 | 1907- | ALL | |||
| 099 | I8-97332 229-0 | PISTON RR WHEEL CYL | 4 | 1907- | NPS81 | |||
| 096 | I8-98050 477-0 | SCREW BLEEDER,RR BRK | 1 | 1907- | NQR81 | |||
| 102 | I8-97332 043-0 | PISTON REAR WHEEL CYL | 4 | 1907- | NPS81 | |||
| 007 | I1-09732 029-0 | RIVET LINING,RR BRK | 64 | 1907- | NQR81 | |||
| 009 | I8-97122 869-0 | SPRING RETURN,BRK SHOE | 4 | 1907- | NQR81 | |||
| 094 | I8-97353 571-0 | CYLINDER WHEEL,RR BRK | 1 | 1907- | NQR81 | REAR | ||
| 026 | I8-97223 576-0 | PLATE BACK,RR BRK | 1 | 1907- | NPS81 | |||
| 217 | I6-87831 692-0 | LINING KIT RR BRK | 1 | 1907- | NQR81 | (IADG) | ||
| 031 | I8-97081 305-0 | BOLT RR WHEEL CYL | 16 | 1907- | ALL | |||
| 217 | I5-87831 692-0 | LINING KIT RR BRK | 1 | 1907- | NQR81 | |||
| 033 | I8-97122 870-0 | PIN SHOE HOLD DOWN | 4 | 1907- | NQR81 | |||
| 094 | I8-97332 225-0 | CYLINDER WHEEL,RR BRK | 1 | 1907- | NPS81 | FRONT | ||
| 017 | I5-09580 101-A | SPRING SHOE HOLD DOWN | 4 | 1907- | ALL | |||
| 095 | I5-87832 051-0 | CUP SET RR WHEEL CYL | 2 | 1907- | NPS81 | |||
| 007 | I1-09732 029-0 | RIVET LINING,RR BRK | 48 | 1907- | NPS81 | |||
| 217 | I6-87831 774-0 | LINING KIT RR BRK | 1 | 1907- | NPS81 | (IADG) | ||
| 217 | I5-87831 774-0 | LINING KIT RR BRK | 1 | 1907- | NPS81 | |||
| 094 | I8-97353 572-0 | CYLINDER WHEEL,RR BRK | 1 | 1907- | NQR81 | FRONT | ||
| 094 | I8-97332 227-0 | CYLINDER WHEEL,RR BRK | 2 | 1907- | NPS81 | |||
| 033 | I8-97022 089-A | PIN SHOE HOLD DOWN | 4 | 1907- | NPS81 | |||
| 096 | I8-98050 476-0 | SCREW BLEEDER,RR BRK | 1 | 1907- | NPS81 |
