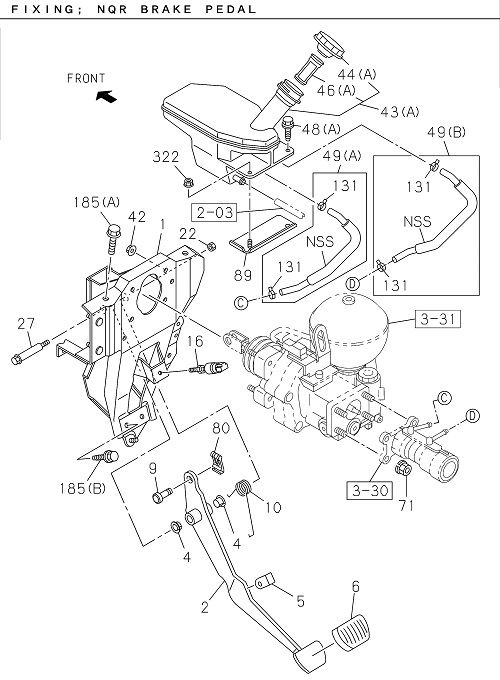

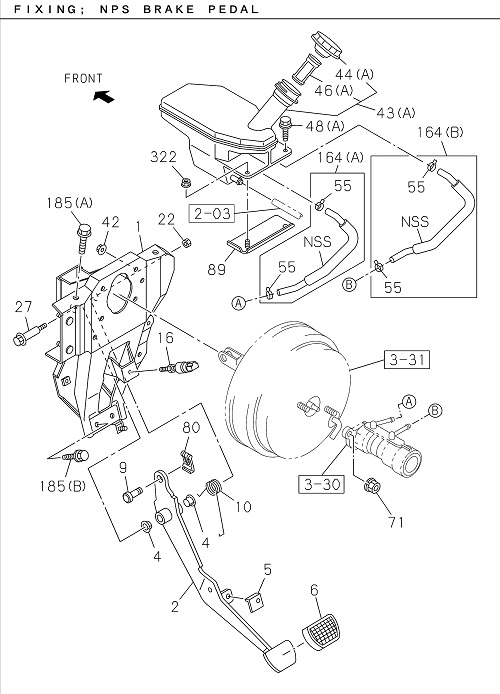

3-10 | BRAKE PEDAL AND CONTROL
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 046 | I8-98022 269-0 | FILTER RESERVOIR,BRK | 1 | 1907- | ALL | (A) | ||
| 048 | I8-97370 668-0 | BOLT OIL TANK TO BRKT | 1 | 1907- | ALL | (A) M6X20 W/PL WASHER | ||
| 005 | I8-98029 187-0 | STOPPER BRK PEDAL | 1 | 1907- | NQR81 | |||
| 185 | I0-28650 825-0 | BOLT BRKT | 4 | 1907- | NQR81 | (C) M8X25 FLANGE | ||
| 042 | I8-94279 050-0 | NUT BRK PEDAL | 4 | 1907- | ALL | M8 W/LK WASHER | ||
| 016 | I8-98000 028-0 | SWITCH STOP LAMP | 1 | 1907- | ALL | |||
| 022 | I0-91380 010-0 | NUT SHAFT | 1 | 1907- | ALL | M10 LOCK NUT FLANGE | ||
| 203 | I0-91610 708-0 | WASHER PL,OIL TANK | 2 | 1907- | NQR81 | ID=8.4 OD=22 | ||
| 001 | I8-98091 563-0 | BRACKET ASM PEDAL | 1 | 1907- | NQR81 | |||
| 164 | I8-98167 345-2 | HOSE RUBBER,OIL TANK | 1 | 1907- | NPS81 | (B) | ||
| 044 | I8-94146 153-2 | CAP OIL TANK | 1 | 1907- | NQR81 | (B) | ||
| 001 | I8-98003 148-5 | BRACKET ASM PEDAL | 1 | 1907- | NPS81 | |||
| 197 | I8-97333 555-2 | BRACKET OIL TANK | 1 | 1907- | NQR81 | (B) | ||
| 322 | I0-91180 106-0 | NUT OIL TANK | 1 | 1907- | ALL | M6 FLANGE | ||
| 044 | I8-98022 268-0 | CAP OIL TANK | 1 | 1907- | ALL | (A) | ||
| 049 | I8-97387 667-1 | HOSE OIL TANK TO BRK M/CYL | 1 | 1907- | NQR81 | (B) | ||
| 002 | I8-98003 156-0 | PEDAL BRK | 1 | 1907- | NPS81 | |||
| 010 | I8-97853 212-1 | SPRING RETURN,BRK PEDAL | 1 | 1907- | ALL | |||
| 055 | I8-98168 080-0 | CLIP RUBBER HOSE | 4 | 1907- | NPS81 | |||
| 002 | I8-98011 432-0 | PEDAL BRK | 1 | 1907- | NQR81 | |||
| 131 | I8-98031 178-0 | CLIP RUBBER HOSE,OIL TANK TO BRK M/CYL | 4 | 1907- | NQR81 | |||
| 080 | I8-98007 161-0 | PIN SNAP,BRK PEDAL | 1 | 1907- | ALL | |||
| 006 | I8-97853 413-2 | COVER BRK PEDAL | 1 | 1907- | ALL | |||
| 089 | I8-98014 337-1 | BRACKET M/CYL | 1 | 1907- | ALL | |||
| 185 | I8-97313 188-0 | BOLT BRKT | 2 | 1907- | ALL | (B) M10X22 W/PL WASHER | ||
| 071 | I8-94279 050-0 | NUT BRK M/CYL | 4 | 1907- | ALL | M8 W/LK WASHER | ||
| 200 | I0-91180 108-0 | NUT BRKT | 2 | 1907- | NQR81 | M8 FLANGE | ||
| 046 | I8-97094 732-0 | FILTER RESERVOIR,BRK | 1 | 1907- | NQR81 | (B) | ||
| 009 | I8-98147 657-0 | PIN JAW JOINT | 1 | 1907- | ALL | |||

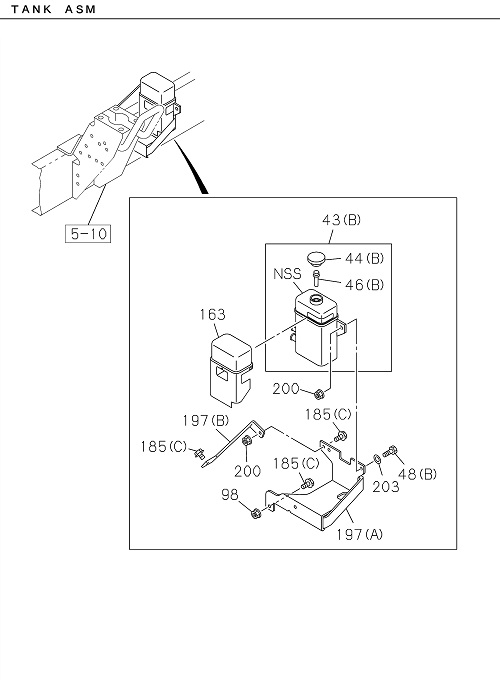

| 043 | I8-97306 217-0 | TANK ASM OIL | 1 | 1907- | NQR81 | (B) | ||
| 164 | I8-98167 344-2 | HOSE RUBBER,OIL TANK | 1 | 1907- | NPS81 | (A) | ||
| 197 | I8-97173 342-2 | BRACKET OIL TANK | 1 | 1907- | NQR81 | (A) | ||
| 098 | I0-91180 108-0 | NUT BRKT | 3 | 1907- | NQR81 | M8 FLANGE | ||
| 004 | I8-94238 596-0 | BUSHING BRK PEDAL | 2 | 1907- | ALL | |||
| 049 | I8-97387 666-1 | HOSE OIL TANK TO BRK M/CYL | 1 | 1907- | NQR81 | (A) | ||
| 043 | I8-97387 217-3 | TANK ASM OIL | 1 | 1907- | ALL | (A) | ||
| 027 | I8-97866 667-0 | SHAFT BRK PEDAL | 1 | 1907- | ALL | |||
| 048 | I0-28650 825-0 | BOLT OIL TANK TO BRKT | 2 | 1907- | NQR81 | (B) M8X25 FLANGE | ||
| 185 | I0-28661 025-0 | BOLT BRKT | 2 | 1907- | ALL | (A) M10X25 FLANGE | ||
| 163 | I8-97164 749-1 | COVER OIL TANK | 1 | 1907- | NQR81 | |||
| 005 | I8-97302 305-0 | STOPPER BRK PEDAL | 1 | 1907- | NPS81 |
