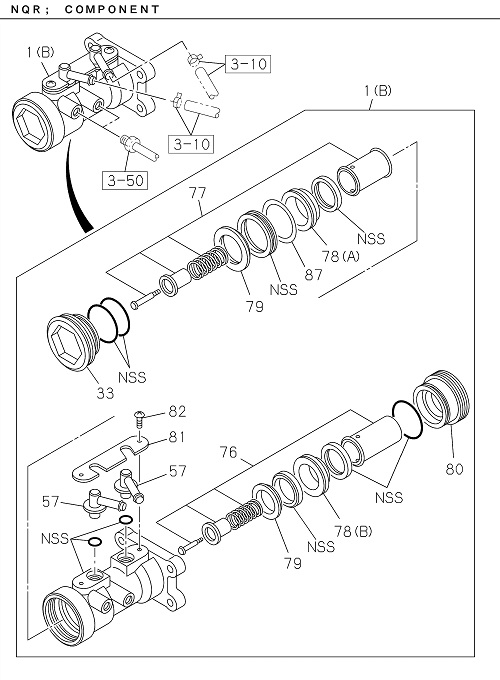

3-30 | BRAKE MASTER CYLINDER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 078 | I8-97170 695-0 | BUSHING MASTER CYL | 1 | 1907- | NQR81 | (A) | ||
| 078 | I8-97207 685-0 | BUSHING MASTER CYL | 1 | 1907- | NQR81 | (B) | ||
| 080 | I8-97170 692-0 | COVER MASTER CYL | 1 | 1907- | NQR81 | |||
| 001 | I8-98032 618-1 | CYLINDER ASM BRK MASTER | 1 | 1907- | NQR81 | (B) | ||
| 081 | I8-97130 444-0 | HOLDER NIPPLE | 1 | 1907- | NQR81 | |||
| 057 | I8-97130 441-0 | NIPPLE BRK M/CYL | 2 | 1907- | NQR81 | |||
| 033 | I8-97186 699-0 | PLUG END,M/CYL | 1 | 1907- | NQR81 | |||
| 087 | I8-97170 696-0 | SPACER CUP | 1 | 1907- | NQR81 | |||
| 076 | I8-97224 641-0 | PISTON ASM PRIMARY | 1 | 1907- | NQR81 | |||
| 077 | I8-97224 640-0 | PISTON ASM SECONDARY | 1 | 1907- | NQR81 | |||
| 082 | I8-97130 446-0 | SCREW HOLDER | 2 | 1907- | NQR81 | |||

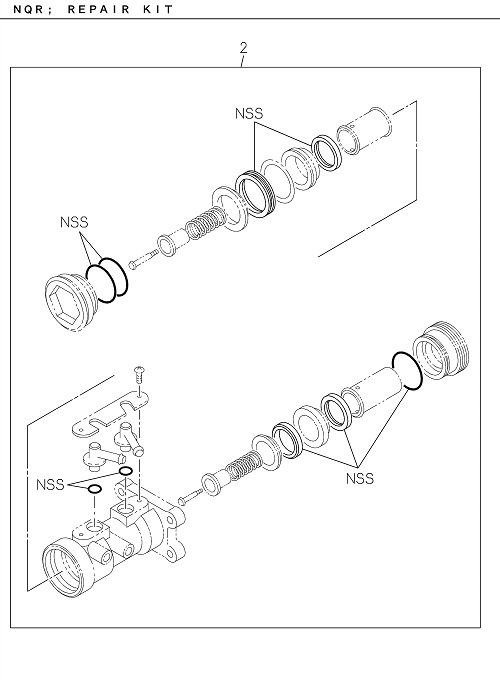

| 002 | I8-97254 775-0 | REPAIR KIT BRK,M/CYL | 1 | 1907- | NQR81 | |||
| 079 | I8-97170 698-0 | SUPPORTER CUP | 2 | 1907- | NQR81 | |||

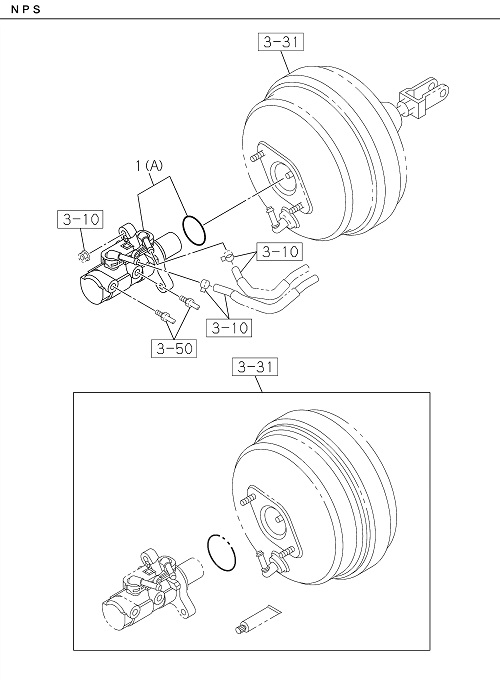

| 001 | I8-98127 461-5 | CYLINDER ASM BRK MASTER | 1 | 1907- | NPS81 | (A) |
