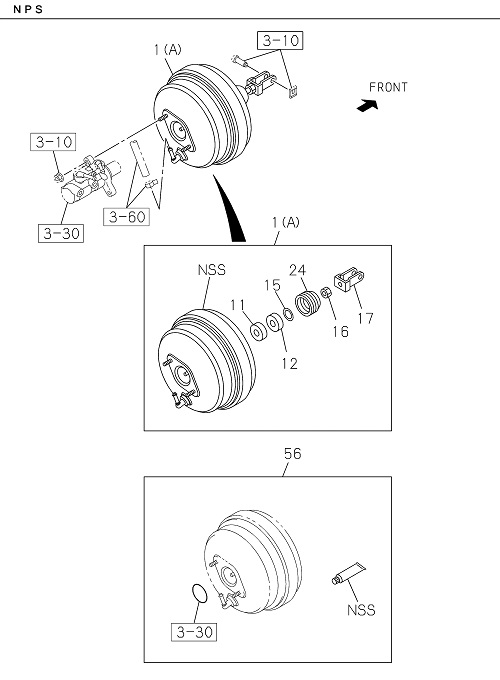

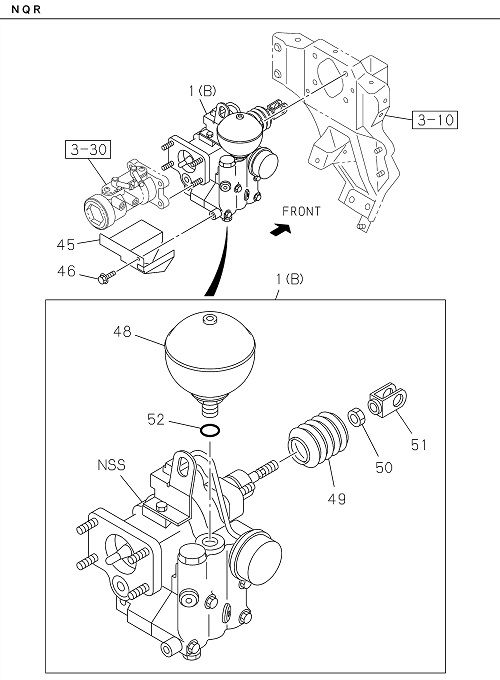

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 011 | I8-97205 576-0 | FILTER M/VAC | 1 | 1907- | NPS81 | |||
| 024 | I8-98184 421-0 | GUARD VLV BODY,M/VAC | 1 | 1907- | NPS81 | |||
| 045 | I8-98031 415-1 | PROTECTOR HEAT | 1 | 1907- | NQR81 | |||
| 001 | I8-98234 822-0 | MASTER VAC ASM BRK | 1 | 1907- | NPS81 | (A) | ||
| 052 | I1-33739 065-0 | GASKET HYDRO BRK BOOSTER | 1 | 1907- | NQR81 | |||
| 049 | I8-97191 043-0 | GUARD HYDRO BRK BOOSTER | 1 | 1907- | NQR81 | |||
| 050 | I8-98038 349-0 | NUT HYDRO BRK BOOSTER | 1 | 1907- | NQR81 | |||
| 051 | I8-98038 347-0 | CLEVIS HYDRO BRK BOOSTER | 1 | 1907- | NQR81 | |||
| 048 | I8-98038 346-0 | ACCUMULATOR HYDRO BOOSTER | 1 | 1907- | NQR81 | |||
| 056 | I8-98184 424-0 | GASKET KIT M/CYL TO SERVO UNIT | 1 | 1907- | NPS81 | |||
| 012 | I8-97205 577-0 | SILENCER M/VAC | 1 | 1907- | NPS81 | |||
| 015 | I8-94375 083-0 | RETAINER GUARD,M/VAC | 1 | 1907- | NPS81 | |||
| 016 | I1-52139 008-0 | NUT VLV ROD,M/VAC | 1 | 1907- | NPS81 | M10 | ||
| 017 | I8-97224 610-0 | CLEVIS YOKE,M/VAC | 1 | 1907- | NPS81 | |||
| 001 | I8-97532 751-0 | MASTER VAC ASM BRK | 1 | 1907- | NQR81 | (B) | ||
| 046 | I0-28050 610-0 | BOLT HEAT PROTECTOR | 2 | 1907- | NQR81 | M6X10 FLANGE |
