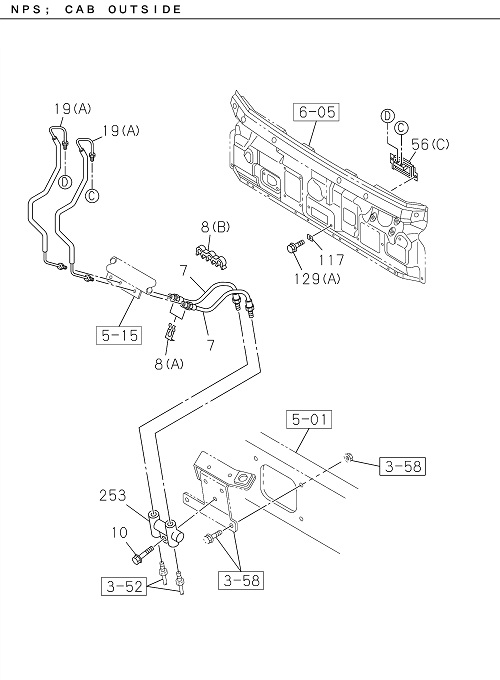

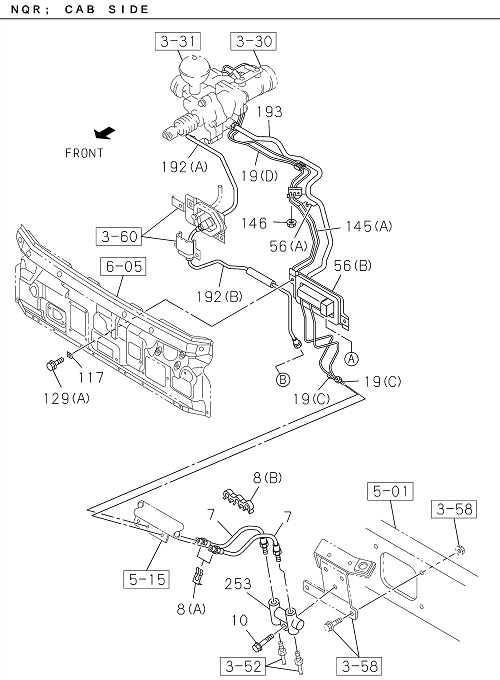

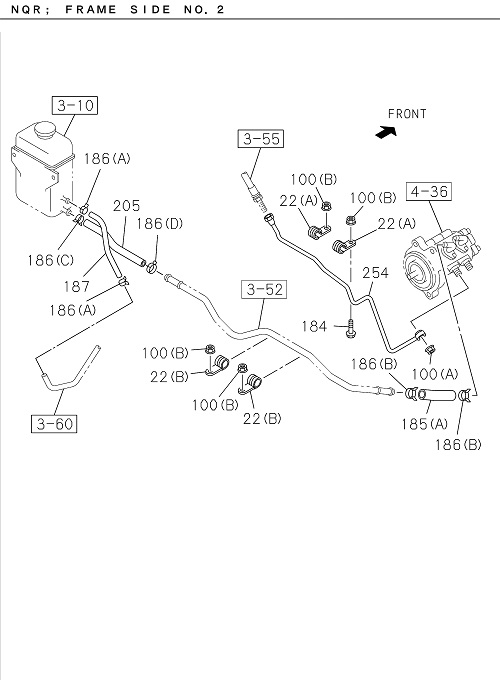

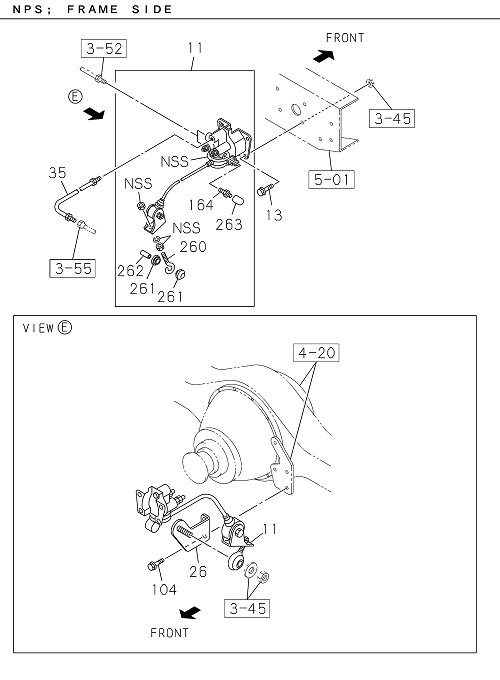

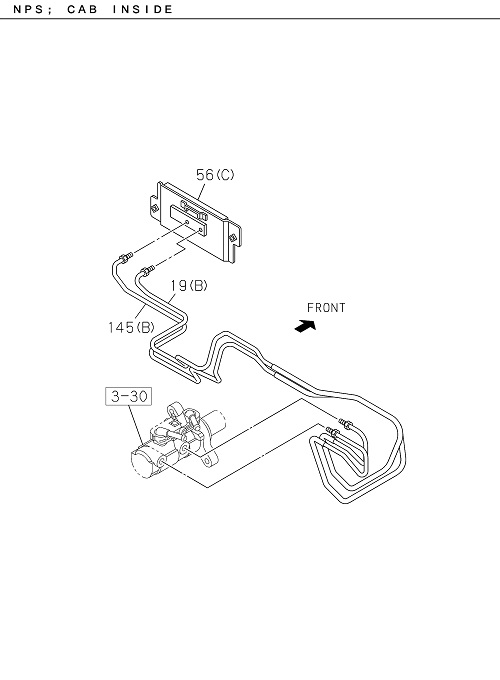

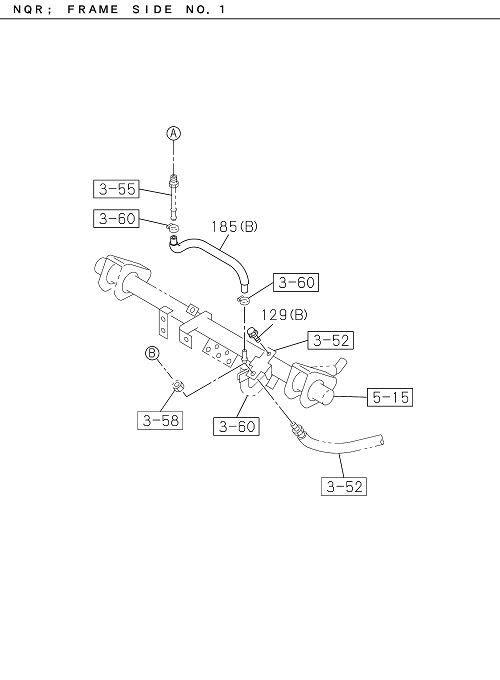

3-50 | BRAKE PIPING OIL,MASTER CYLINDER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 186 | I8-98150 355-0 | CLIP HOSE | 1 | 1907- | NQR81 | (D) ID=21 | ||
| 262 | I8-97139 186-0 | COLLAR LSPV | 1 | 1907- | NPS81 | |||
| 056 | I8-98154 264-1 | BRACKET UNION,BRK | 1 | 1907- | NPS81 | (C) | ||
| 129 | I8-98081 030-0 | BOLT BRKT | 2 | 1907- | ALL | (A) M6X20 W/LK&PL WASHER | ||
| 253 | I8-97120 033-2 | JOINT | 1 | 1907- | NPS81 | |||
| 022 | I0-95235 025-0 | CLIP | 2 | 1907- | NQR81 | (A) ID=11 L=16 | ||
| 019 | I8-97389 366-1 | PIPE BRK,M/CYL TO UNION | 2 | 1907- | NPS81 | (A) L=580 | ||
| 007 | I8-98029 865-0 | HOSE FLEX,PIPE TO 5 WAY JOINT | 2 | 1907- | ALL | |||
| 254 | I8-98319 373-1 | PIPE BRAKE,2WAY | 1 | 1907- | NQR81 | |||
| 117 | I8-97856 616-0 | SEAL UNION,BRK PIPE JOINT | 2 | 1907- | ALL | |||
| 253 | I5-47456 009-1 | JOINT | 1 | 1907- | NQR81 | |||
| 205 | I0-09814 300-0 | HOSE TANK TO PIPE | 1 | 1907- | NQR81 | |||
| 187 | I0-19809 300-0 | HOSE RUBBER,OIL TANK | 1 | 1907- | NQR81 | L=220 | ||
| 100 | I0-91180 108-0 | NUT HYDRAULIC UNIT | 5 | 1907- | NQR81 | (B) M8 FLANGE | ||
| 035 | I8-98159 735-0 | PIPE BRK,VLV TO RR AXLE | 1 | 1907- | NPS81 | L=674 | ||
| 145 | I8-98115 269-A | PIPE BRK,METERING VLV TO UNION | 1 | 1907- | NPS81 | (B) L=1371 | ||
| 026 | I8-98057 012-0 | BRACKET PROPORTIONING VLV | 1 | 1907- | NPS81 | |||
| 056 | I8-98098 679-0 | BRACKET UNION,BRK | 1 | 1907- | NQR81 | (A) | ||
| 019 | I8-98098 682-1 | PIPE BRK,M/CYL TO UNION | 1 | 1907- | NQR81 | (D) L=1067 | ||
| 185 | I8-98085 720-0 | HOSE RUBBER,SUCTION | 1 | 1907- | NQR81 | (B) | ||
| 184 | I0-28050 816-0 | BOLT CLIP | 2 | 1907- | NQR81 | M8X16 FLANGE | ||
| 013 | I0-28050 816-0 | BOLT VLV TO BRKT | 4 | 1907- | NPS81 | M8X16 FLANGE | ||
| 019 | I8-98043 501-2 | PIPE BRK,M/CYL TO UNION | 2 | 1907- | NQR81 | (C) L=317 | ||
| 185 | I8-97330 513-0 | HOSE RUBBER,SUCTION | 1 | 1907- | NQR81 | (A) | ||
| 008 | I8-97365 304-0 | CLIP FLEX HOSE,CABLE SIDE | 2 | 1907- | ALL | (A) | ||
| 056 | I8-98154 266-1 | BRACKET UNION,BRK | 1 | 1907- | NQR81 | (B) | ||
| 192 | I8-98193 137-0 | PIPE PRESSURE | 1 | 1907- | NQR81 | (B) | ||
| 100 | I8-97358 958-0 | NUT HYDRAULIC UNIT | 1 | 1907- | NQR81 | (A) | ||
| 129 | I0-28050 612-0 | BOLT BRKT | 1 | 1907- | NQR81 | (B) M6X12 FLANGE | ||
| 192 | I8-98127 262-0 | PIPE PRESSURE | 1 | 1907- | NQR81 | (A) | ||
| 263 | I8-97093 662-0 | CAP BLEEDER | 1 | 1907- | NPS81 | |||
| 104 | I0-28050 816-0 | BOLT BRKT TO BODY | 2 | 1907- | NPS81 | M8X16 FLANGE | ||
| 261 | I8-97145 631-0 | BUSHING LSPV | 2 | 1907- | NPS81 | |||
| 019 | I8-98115 279-A | PIPE BRK,M/CYL TO UNION | 1 | 1907- | NPS81 | (B) L=1274 | ||
| 011 | I8-94427 224-2 | VALVE BRK CONT | 1 | 1907- | NPS81 | |||
| 010 | I0-28650 640-0 | BOLT JOINT | 1 | 1907- | ALL | M6X40 FLANGE | ||
| 260 | I8-97173 366-0 | SHACKLE LSPV | 1 | 1907- | NPS81 | |||
| 186 | I8-98150 355-0 | CLIP HOSE | 2 | 1907- | NQR81 | (B) ID=21 | ||
| 008 | I8-97076 471-0 | CLIP FLEX HOSE,CABLE SIDE | 1 | 1907- | ALL | (B) | ||
| 186 | I8-97359 141-0 | CLIP HOSE | 1 | 1907- | NQR81 | (C) ID=22 | ||
| 022 | I8-98293 938-0 | CLIP | 3 | 1907- | NQR81 | (B) ID=16 L=20 | ||
| 186 | I8-98008 098-0 | CLIP HOSE | 2 | 1907- | NQR81 | (A) ID=16 | ||
| 146 | I8-94279 050-0 | NUT BRKT | 1 | 1907- | NQR81 | M8 W/LK WASHER | ||
| 193 | I8-97538 419-0 | PIPE RETURN | 1 | 1907- | NQR81 | |||
| 145 | I8-98098 680-1 | PIPE BRK,METERING VLV TO UNION | 1 | 1907- | NQR81 | (A) L=1168 | ||
| 164 | I8-97093 663-0 | SCREW BLEEDER | 1 | 1907- | NPS81 |
