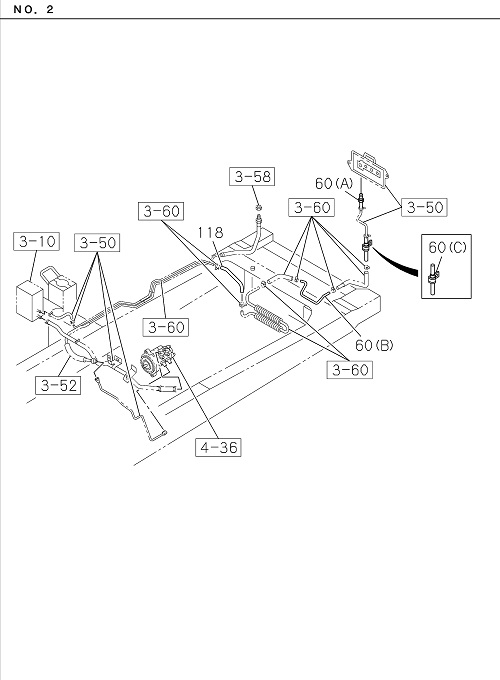

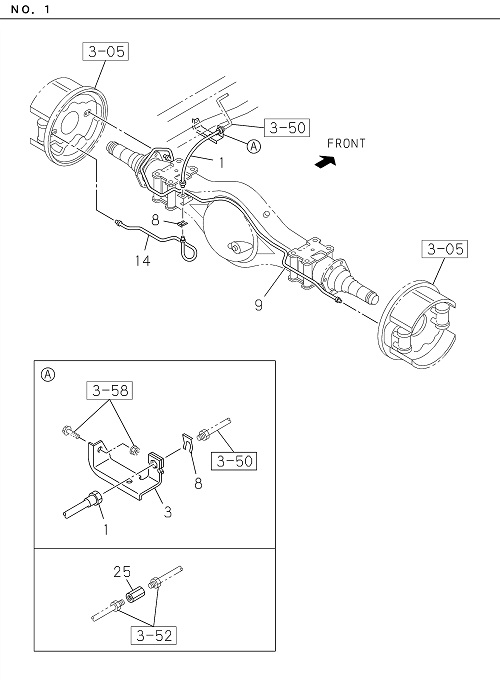

3-55 | BRAKE PIPING OIL,REAR
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 060 | I8-98041 326-1 | PIPE ASM BRK | 1 | 1907- | NQR81 | (B) | ||
| 003 | I8-97205 714-1 | BRACKET FLEX HOSE,RR BRK | 1 | 1907- | ALL | |||
| 001 | I8-98049 265-0 | HOSE FLEX,RR BRK | 1 | 1907- | NPS81 | |||
| 008 | I8-97360 054-0 | CLIP RR BRK | 2 | 1907- | ALL | |||
| 060 | I8-98080 549-0 | PIPE ASM BRK | 1 | 1907- | NQR81 | (A) | ||
| 025 | I0-92107 005-0 | CONNECTOR | 1 | 1907- | ALL | M10X2 STRAIGHT | ||
| 025 | I0-92107 005-0 | CONNECTOR | 1 | 1907- | NPS81 | M10X2 STRAIGHT | ||
| 009 | I8-98026 057-0 | PIPE BRK,RR AXLE | 1 | 1907- | NPS81 | |||
| 014 | I8-97359 746-0 | PIPE BRK,FLEX HOSE TO WHEEL CYL | 1 | 1907- | NPS81 | |||
| 009 | I8-98026 057-0 | PIPE BRK,RR AXLE | 1 | 1907- | NQR81 | |||
| 118 | I8-98158 200-0 | HOSE PIPE TO PIPE | 1 | 1907- | NQR81 | |||
| 060 | I8-98088 313-1 | PIPE ASM BRK | 1 | 1907- | NQR81 | (C) | ||
| 014 | I8-97359 748-0 | PIPE BRK,FLEX HOSE TO WHEEL CYL | 1 | 1907- | NQR81 | |||
| 001 | I8-97089 061-0 | HOSE FLEX,RR BRK | 1 | 1907- | NQR81 | L=405 |
