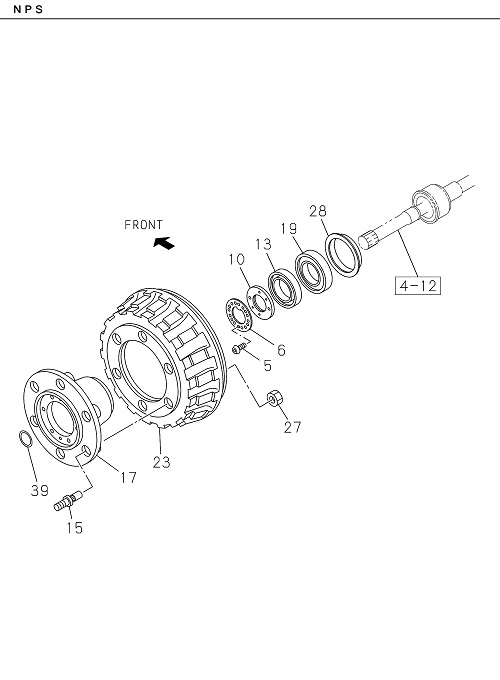

4-11 | FRONT HUB AND DRUM OR ROTOR
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 017 | I8-98338 183-0 | HUB FRT AXLE | 2 | 1907- | NQR81 | |||
| 002 | I0-81125 040-0 | PIN SPLIT,HUB TO AXLE SHAFT | 2 | 1907- | NQR81 | OD=4.6 L=40 | ||
| 039 | I8-94441 491-0 | SHIM AXLE SHAFT OUTER | AR | 1907- | NPS81 | T=1.0 | ||
| 005 | I8-94477 783-0 | BOLT LK WASHER | 4 | 1907- | NPS81 | M6X12 | ||
| 015 | I8-97131 284-3 | PIN WHEEL,FRT AXLE | 6 | 1907- | NQR81 | M20X28 LH THREAD,M22X50 RH THREAD | ||
| 019 | I8-98171 254-A | BEARING HUB INNER,FRT AXLE | 2 | 1907- | NQR81 | (IADG) | ||
| 029 | I8-97234 513-0 | DISTANCE PIECE HUB BRKT | 2 | 1907- | NQR81 | |||
| 019 | I9-00093 149-A | BEARING HUB INNER,FRT AXLE | 2 | 1907- | NQR81 | |||
| 039 | I8-94441 489-0 | SHIM AXLE SHAFT OUTER | AR | 1907- | NPS81 | T=0.3 | ||
| 010 | I8-98236 851-0 | NUT FRT HUB BRG | 2 | 1907- | NPS81 | |||
| 015 | I8-97131 283-3 | PIN WHEEL,FRT AXLE | 6 | 1907- | NQR81 | M20X28,M22X50 RH THREAD | ||
| 028 | I6-94440 904-0 | SEAL OIL,FRT HUB | 2 | 1907- | NPS81 | (IADG) | ||
| 015 | I8-97081 584-4 | PIN WHEEL,FRT AXLE | 6 | 1907- | NPS81 | M20X28,M22X57 RH THREAD | ||
| 023 | I8-97138 110-0 | DRUM BRK,FRT | 2 | 1907- | NPS81 | |||
| 007 | I0-91110 522-0 | NUT FRT HUB | 12 | 1907- | NQR81 | M22 | ||
| 017 | I8-97116 500-0 | HUB FRT AXLE | 2 | 1907- | NPS81 | |||
| 019 | I8-98171 254-0 | BEARING HUB INNER,FRT AXLE | 2 | 1907- | NQR81 | |||
| 006 | I9-09853 214-1 | WASHER LK,FRT HUB | 2 | 1907- | NPS81 | ID=52 | ||
| 013 | I8-98131 432-0 | BEARING HUB OUTER,FRT AXLE | 2 | 1907- | NQR81 | |||
| 023 | I8-97188 115-0 | DRUM BRK,FRT | 2 | 1907- | NQR81 | |||
| 028 | I6-94248 117-0 | SEAL OIL,FRT HUB | 2 | 1907- | NQR81 | (IADG) | ||
| 015 | I8-97081 585-4 | PIN WHEEL,FRT AXLE | 6 | 1907- | NPS81 | M20X28 LH THREAD,M22X57 RH THREAD | ||
| 028 | I8-94248 117-1 | SEAL OIL,FRT HUB | 2 | 1907- | NQR81 | |||
| 027 | I0-91110 522-0 | NUT WHEEL PIN,FRT AXLE | 12 | 1907- | NPS81 | M22 | ||
| 019 | I8-94441 252-0 | BEARING HUB INNER,FRT AXLE | 2 | 1907- | NPS81 | |||
| 028 | I8-94440 904-0 | SEAL OIL,FRT HUB | 2 | 1907- | NPS81 | |||
| 039 | I8-94441 490-0 | SHIM AXLE SHAFT OUTER | AR | 1907- | NPS81 | T=0.5 | ||
| 010 | I8-94247 357-1 | NUT FRT HUB BRG | 2 | 1907- | NQR81 | |||
| 013 | I1-09812 097-0 | BEARING HUB OUTER,FRT AXLE | 2 | 1907- | NPS81 | |||
| 001 | I8-98334 331-0 | CAP HUB,FRT AXLE | 2 | 1907- | NQR81 | |||
| 012 | I8-98282 435-0 | WASHER LK,FRT HUB BRG | 2 | 1907- | NQR81 |
