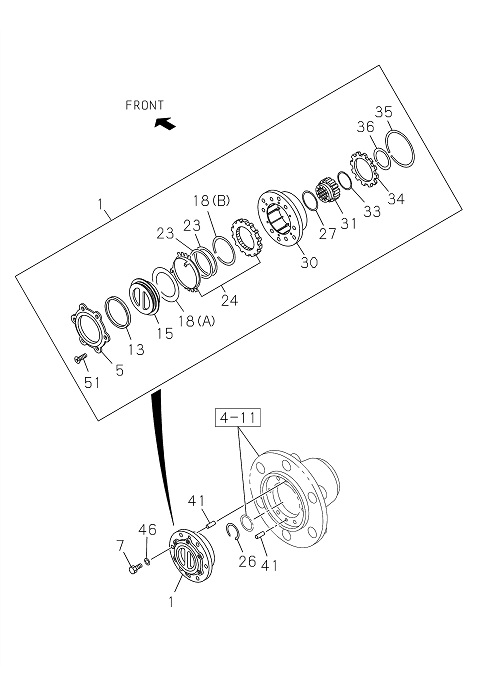

4-16 | FREE WHEEL HUB
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 007 | I8-94333 467-0 | BOLT FREE WHEEL HUB | 12 | 1907- | NPS81 | |||
| 027 | I8-94441 489-0 | SHIM AXLE SHAFT | AR | 1907- | NPS81 | T=0.3 | ||
| 041 | I8-97135 423-0 | PIN KNOCK,FRT AXLE KNUCKLE | 4 | 1907- | NPS81 | OD=10 L=20 | ||
| 035 | I8-94321 494-0 | RING SNAP,HUB LOCK,INNER | 2 | 1907- | NPS81 | |||
| 005 | I8-97032 907-0 | COVER HUB LOCK | 2 | 1907- | NPS81 | |||
| 024 | I8-94321 498-0 | CLUTCH HUB LOCK | 2 | 1907- | NPS81 | |||
| 036 | I8-94321 496-0 | RING SNAP,HUB LOCK,OUTER | 2 | 1907- | NPS81 | |||
| 030 | I8-94321 492-0 | HOUSING FREE WHEEL HUB | 2 | 1907- | NPS81 | |||
| 018 | I8-94321 504-0 | RING SNAP,INNER | 2 | 1907- | NPS81 | (B) | ||
| 051 | I8-98049 688-0 | SCREW FREE WHEEL HUB | 12 | 1907- | NPS81 | |||
| 034 | I8-94321 493-0 | RING HUB LOCK | 2 | 1907- | NPS81 | |||
| 027 | I8-94441 491-0 | SHIM AXLE SHAFT | AR | 1907- | NPS81 | T=1.0 | ||
| 013 | I8-97032 909-1 | RING HUB LOCK | 2 | 1907- | NPS81 | |||
| 026 | I8-94478 198-0 | RING SNAP,HUB | 2 | 1907- | NPS81 | |||
| 015 | I8-97032 908-0 | HANDLE HUB LOCK | 2 | 1907- | NPS81 | |||
| 031 | I8-94321 495-0 | INNER HUB LOCK | 2 | 1907- | NPS81 | |||
| 027 | I8-94441 490-0 | SHIM AXLE SHAFT | AR | 1907- | NPS81 | T=0.5 | ||
| 033 | I8-94321 497-0 | SPACER HUB LOCK | 2 | 1907- | NPS81 | |||
| 046 | I0-91510 812-0 | WASHER LK,DRIVEN TO HSG | 12 | 1907- | NPS81 | ID=12.2 | ||
| 018 | I8-94321 500-0 | RING SNAP,INNER | 2 | 1907- | NPS81 | (A) | ||
| 001 | I8-98049 339-0 | HUB ASM FREE WHEEL | 2 | 1907- | NPS81 | |||
| 023 | I8-94321 499-0 | SPRING TENSION,HUB LOCK | 4 | 1907- | NPS81 |
