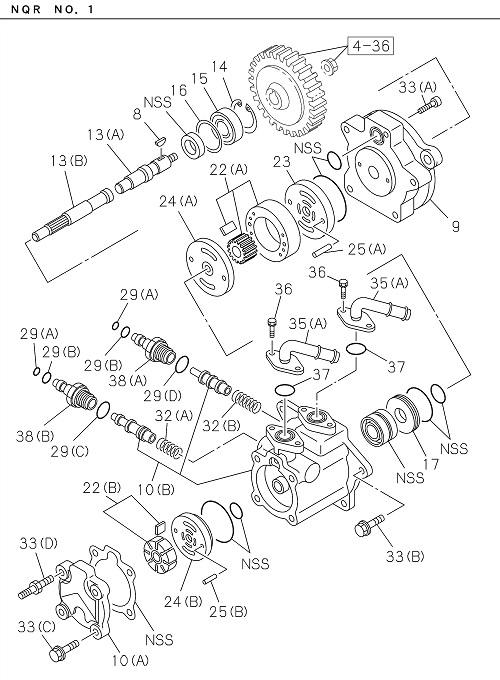

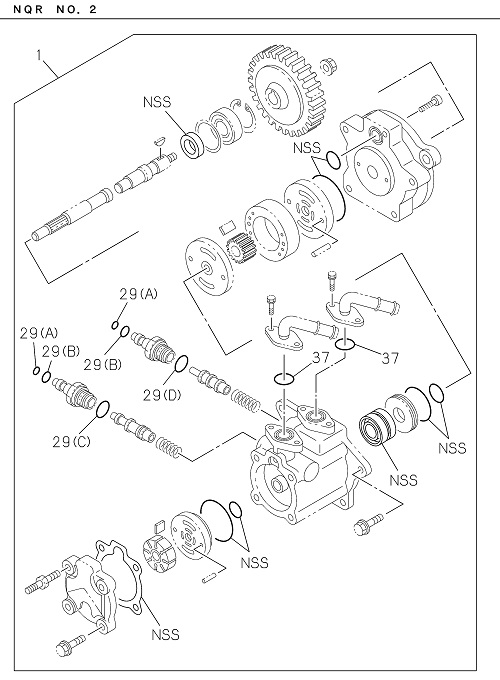

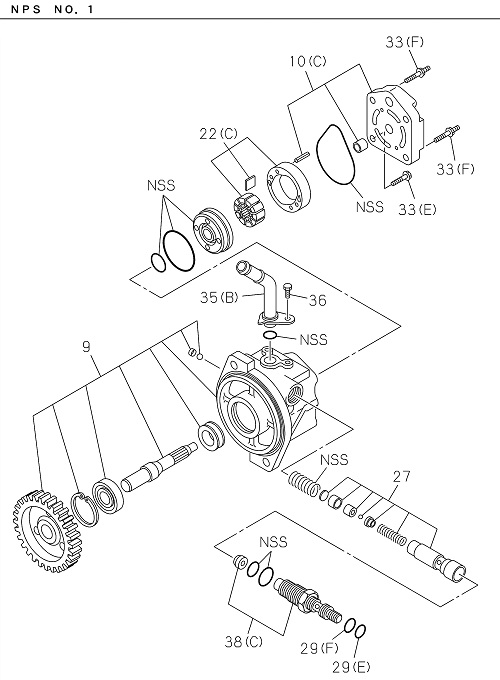

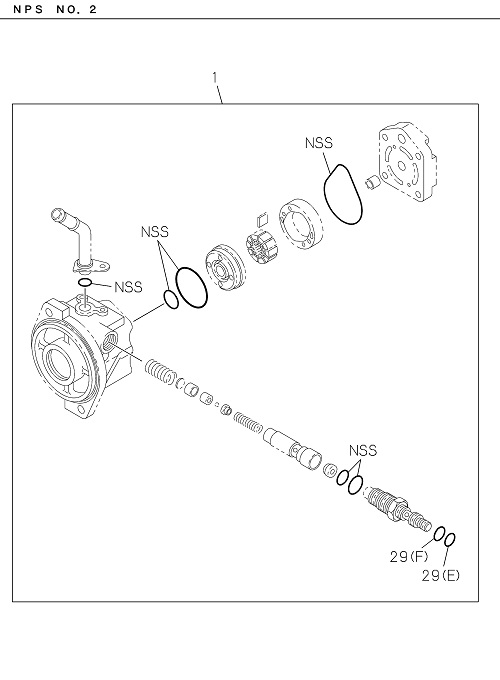

4-42 | POWER STEERING OIL PUMP
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-97482 045-0 | BODY ASM FRT,OIL PUMP | 1 | NPS81 | ||||
| 029 | I9-48429 028-0 | GASKET PLUG TO VLV | 1 | NQR81 | (C) | |||
| 037 | I1-19519 292-0 | GASKET PIPE CONN,OIL PUMP | 2 | NQR81 | ||||
| 029 | I9-88510 248-0 | GASKET PLUG TO VLV | 1 | NQR81 | (D) | |||
| 010 | I8-97482 034-0 | BODY ASM RR,OIL PUMP | 1 | NPS81 | (C) | |||
| 022 | I8-97182 092-0 | CARTRIDGE ASM OIL PUMP | 1 | NQR81 | (A) | |||
| 014 | I1-19519 257-0 | RING RET,OIL PUMP | 1 | NQR81 | ||||
| 025 | I8-97182 104-0 | PIN HSG,P/S | 2 | NQR81 | (B) | |||
| 036 | I8-97482 042-0 | BOLT CONN,PIPE | 1 | NPS81 | ||||
| 008 | I9-19519 089-0 | KEY SHAFT,OIL PUMP | 1 | NQR81 | ||||
| 032 | I9-19529 013-0 | SPRING OIL PUMP | 1 | NQR81 | (B) | |||
| 010 | I8-97182 097-0 | BODY ASM RR,OIL PUMP | 1 | NQR81 | (B) | |||
| 016 | I1-19519 258-0 | RING RET,OIL PUMP | 1 | NQR81 | ||||
| 029 | I8-97075 581-0 | GASKET PLUG TO VLV | 1 | NPS81 | (F) | |||
| 029 | I8-97482 041-0 | GASKET PLUG TO VLV | 1 | NPS81 | (E) | |||
| 033 | I8-97182 100-0 | BOLT COVER | 1 | NQR81 | (A) | |||
| 024 | I8-97182 093-0 | PLATE ASM THRUST | 1 | NQR81 | (A) | |||
| 033 | I1-48119 054-0 | BOLT COVER | 2 | NQR81 | (C) | |||
| 033 | I1-44519 119-0 | BOLT COVER | 4 | NQR81 | (B) | |||
| 033 | I8-98034 052-0 | BOLT COVER | 2 | NPS81 | (F) | |||
| 013 | I8-97182 096-0 | SHAFT KIT RET | 1 | NQR81 | (A) | |||
| 033 | I8-97482 035-0 | BOLT COVER | 2 | NPS81 | (E) | |||
| 001 | I8-97482 044-0 | REPAIR KIT OIL PUMP | 1 | NPS81 | ||||
| 001 | I8-97182 111-0 | REPAIR KIT OIL PUMP | 1 | NQR81 | ||||
| 038 | I8-97482 038-0 | CONNECTOR OIL PUMP | 1 | NPS81 | (C) | |||
| 035 | I8-98058 094-0 | PIPE HOSE CONN,OIL PUMP | 1 | NPS81 | (B) | |||
| 022 | I8-97482 032-0 | CARTRIDGE ASM OIL PUMP | 1 | NPS81 | (C) | |||
| 038 | I8-97182 098-0 | CONNECTOR OIL PUMP | 1 | NQR81 | (A) | |||
| 029 | I9-09561 111-0 | GASKET PLUG TO VLV | 2 | NQR81 | (A) | |||
| 013 | I8-97182 105-0 | SHAFT KIT RET | 1 | NQR81 | (B) | |||
| 032 | I8-94475 376-0 | SPRING OIL PUMP | 1 | NQR81 | (A) | |||
| 029 | I8-94140 628-0 | GASKET PLUG TO VLV | 2 | NQR81 | (B) | |||
| 022 | I8-97182 102-0 | CARTRIDGE ASM OIL PUMP | 1 | NQR81 | (B) | |||
| 023 | I8-97182 094-0 | PLATE SIDE,OIL PUMP | 1 | NQR81 | ||||
| 025 | I1-19519 052-0 | PIN HSG,P/S | 2 | NQR81 | (A) | |||
| 024 | I8-97182 103-0 | PLATE ASM THRUST | 1 | NQR81 | (B) | |||
| 009 | I8-97182 095-0 | BODY ASM FRT,OIL PUMP | 1 | NQR81 | ||||
| 027 | I8-97482 036-0 | VALVE ASM OIL PUMP | 1 | NPS81 | ||||
| 035 | I8-97258 420-1 | PIPE HOSE CONN,OIL PUMP | 2 | NQR81 | (A) | |||
| 017 | I8-97182 106-0 | RING RET | 1 | NQR81 | ||||
| 036 | I8-94461 139-1 | BOLT CONN,PIPE | 4 | NQR81 | ||||
| 010 | I8-97182 108-0 | BODY ASM RR,OIL PUMP | 1 | NQR81 | (A) | |||
| 033 | I8-97182 110-0 | BOLT COVER | 2 | NQR81 | (D) | |||
| 038 | I8-97182 109-0 | CONNECTOR OIL PUMP | 1 | NQR81 | (B) | |||
| 015 | I9-00090 211-0 | BEARING BALL,OIL PUMP | 1 | NQR81 |
