4-50 | FRONT SUSPENSION
ELF

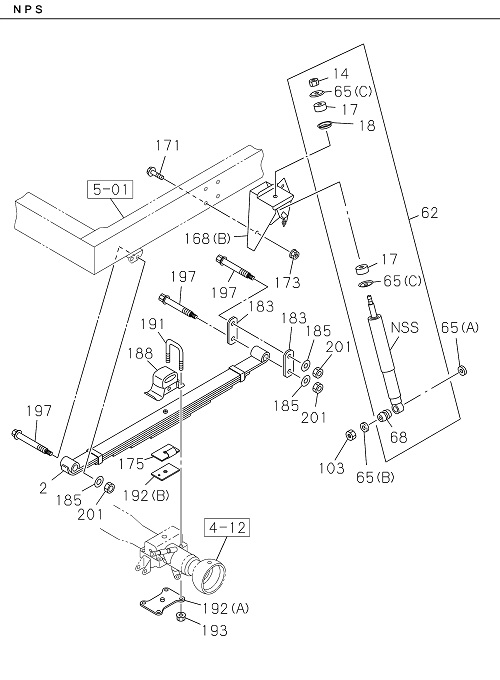

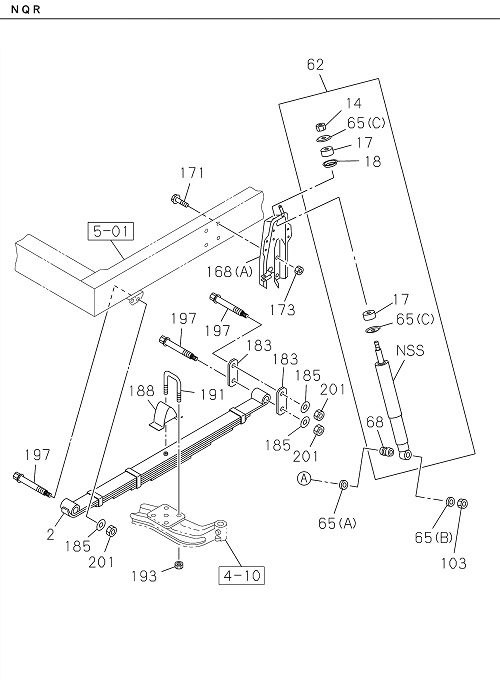

NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-98090 401-0 | SPRING ASM LEAF,FRT | 1 | 1907-2112 | NPS81 | |||
| 168 | I8-98015 001-0 | BRACKET S/ABS,FRT SUSP | 1 | 1907- | NQR81 | (A) | ||
| 183 | I8-94110 399-3 | SHACKLE FRT SUSP | 4 | 1907- | ALL | |||
| 062 | I8-98380 994-0 | ABSORBER ASM SHOCK,FRT | 2 | 1907- | NQR81 | |||
| 188 | I8-98090 443-0 | RUBBER CLAMP,U-BOLT,FRT SPR | 2 | 1907- | NPS81 | |||
| 065 | I1-51631 024-0 | WASHER S/ABS | 4 | 1907- | ALL | (C) OD=40 | ||
| 065 | I0-91614 620-0 | WASHER S/ABS | 2 | 1907- | ALL | (A) ID=21 OD=40 | ||
| 185 | I8-98011 489-0 | WASHER LK,PIN | 6 | 1907- | ALL | ID=16.5 | ||
| 191 | I8-94461 227-4 | U-BOLT FRT SPR | 2 | 1907- | NPS81 | L=185 | ||
| 188 | I8-98033 516-0 | RUBBER CLAMP,U-BOLT,FRT SPR | 2 | 1907- | NQR81 | |||
| 173 | I8-97360 126-0 | NUT S/ABS | 8 | 1907- | ALL | M12 | ||
| 002 | I8-97696 516-A | SPRING ASM LEAF,FRT | 1 | 1907- | NQR81 | |||
| 017 | I6-51631 603-0 | BUSHING RUBBER,S/ABS | 4 | 1907- | ALL | (IADG) | ||
| 002 | I8-98090 401-A | SPRING ASM LEAF,FRT | 1 | 2201- | NPS81 | |||
| 168 | I8-98049 995-2 | BRACKET S/ABS,FRT SUSP | 1 | 1907- | NPS81 | (B) | ||
| 191 | I8-94461 228-1 | U-BOLT FRT SPR | 2 | 1907- | NPS81 | L=275 | ||
| 002 | I8-98090 402-0 | SPRING ASM LEAF,FRT | 1 | 1907-2112 | NPS81 | |||
| 017 | I9-51631 603-0 | BUSHING RUBBER,S/ABS | 4 | 1907- | ALL | |||
| 002 | I8-98090 402-A | SPRING ASM LEAF,FRT | 1 | 2201- | NPS81 | |||
| 192 | I8-98049 991-0 | PIECE DIST | 2 | 1907- | NPS81 | (B) | ||
| 171 | I0-28651 235-0 | BOLT S/ABS BRKT | 8 | 1907- | ALL | M12X35 FLANGE | ||
| 192 | I8-94462 218-2 | PIECE DIST | 1 | 1907- | NPS81 | (A) | ||
| 103 | I0-91110 514-0 | NUT S/ABS TO LWR LINK | 2 | 1907- | ALL | M14 | ||
| 191 | I9-51171 075-1 | U-BOLT FRT SPR | 4 | 1907- | NQR81 | L=165 | ||
| 065 | I8-97360 056-0 | WASHER S/ABS | 2 | 1907- | ALL | (B) ID=15 | ||
| 018 | I8-98371 401-0 | WASHER CENTERING,S/ABS | 2 | 1907- | ALL | |||
| 002 | I8-97696 515-A | SPRING ASM LEAF,FRT | 1 | 1907- | NQR81 | |||
| 193 | I8-97360 121-0 | NUT U BOLT | 8 | 1907- | NQR81 | M16 | ||
| 175 | I8-94311 841-2 | SPACER BRKT,S/ABS | 2 | 1907- | NPS81 | |||
| 062 | I8-98381 005-0 | ABSORBER ASM SHOCK,FRT | 2 | 1907- | NPS81 | |||
| 068 | I8-97120 139-0 | BUSHING S/ABS | 2 | 1907- | ALL | |||
| 014 | I8-98371 403-0 | NUT S/ABS,UPR | 2 | 1907- | ALL | M10 FLANGE | ||
| 197 | I8-98011 487-0 | PIN FRT SPR,FRT | 6 | 1907- | ALL | M16X122 | ||
| 201 | I0-91110 516-0 | NUT PIN LK | 6 | 1907- | ALL | M16 | ||
| 168 | I8-98015 002-0 | BRACKET S/ABS,FRT SUSP | 1 | 1907- | NQR81 | (A) | ||
| 193 | I8-97360 124-0 | NUT U BOLT | 8 | 1907- | NPS81 | M14 FLANGE |
