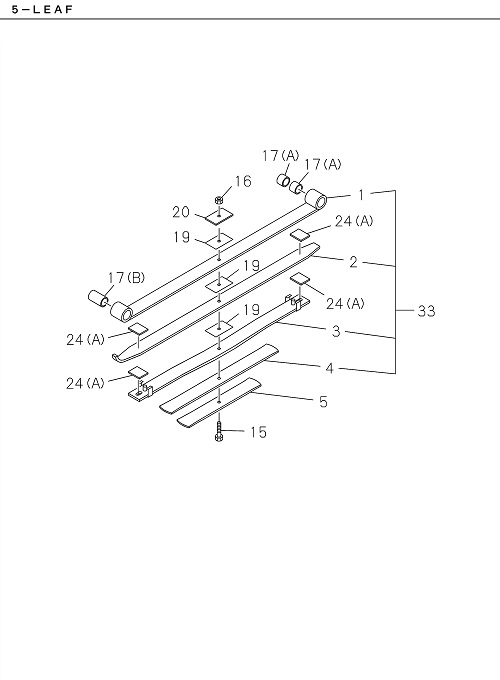

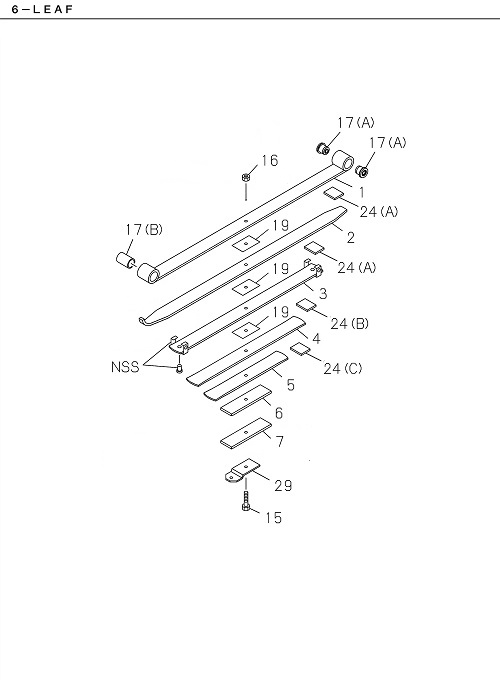

4-55 | FRONT LEAF SPRING
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 006 | I8-98193 106-A | SPRING LEAF,NO 7,FRT | 1 | 1907- | NQR81 | |||
| 033 | I8-98094 419-0 | SPRING ASM LEAF,FRT MAIN | 1 | 1907- | NPS81 | |||
| 017 | I7-01640 335-A | BUSHING LEAF SPR,FRT | 1 | 2201- | NPS81 | |||
| 002 | I7-65081 223-A | SPRING LEAF,NO 2,FRT | 1 | 2201- | NPS81 | |||
| 005 | I8-98193 104-A | SPRING LEAF,NO 5,FRT | 1 | 1907- | NQR81 | |||
| 017 | I8-97081 586-0 | BUSHING LEAF SPR,FRT | 1 | 1907-2112 | NPS81 | (B) OD=42 L=81 | ||
| 006 | I8-98193 113-A | SPRING LEAF,NO 7,FRT | 1 | 1907- | NQR81 | |||
| 003 | I8-98080 196-0 | SPRING LEAF,NO 3,FRT | 1 | 1907-2212 | NPS81 | |||
| 005 | I7-65001 226-A | SPRING LEAF,NO 5,FRT | 1 | 2201- | NPS81 | |||
| 024 | I8-97084 848-0 | LINER LEAF SPR,FWD FRT | 2 | 1907- | NPS81 | (A) | ||
| 029 | I7-94342 292-A | SUPPORTER LEAF SPR,FRT | 1 | 1907- | NQR81 | |||
| 017 | I7-00164 281-A | BUSHING LEAF SPR,FRT | 1 | 2201- | NPS81 | |||
| 017 | I8-97184 699-1 | BUSHING LEAF SPR,FRT | 1 | 1907-2112 | NPS81 | (A) OD=40 L=43.7 | ||
| 005 | I7-65081 226-A | SPRING LEAF,NO 5,FRT | 1 | 2201- | NPS81 | |||
| 006 | I8-98193 112-A | SPRING LEAF,NO 6,FRT | 1 | 1907- | NQR81 | |||
| 004 | I8-98193 103-A | SPRING LEAF,NO 4,FRT | 1 | 1907- | NQR81 | |||
| 019 | I8-97084 847-0 | SPACER LEAF SPRING,FRT | 3 | 1907- | NPS81 | |||
| 001 | I8-98094 420-0 | SPRING LEAF,NO 1,FRT | 1 | 1907-2212 | NPS81 | |||
| 001 | I8-98193 100-A | SPRING LEAF,NO 1,FRT | 1 | 1907- | NQR81 | |||
| 001 | I8-98193 107-A | SPRING LEAF,NO 1,FRT | 1 | 1907- | NQR81 | |||
| 002 | I7-65001 223-A | SPRING LEAF,NO 2,FRT | 1 | 2201- | NPS81 | |||
| 005 | I8-98080 199-0 | SPRING LEAF,NO 5,FRT | 1 | 1907-2212 | NPS81 | |||
| 024 | I7-98193 189-A | LINER LEAF SPR,FWD FRT | 2 | 1907- | NQR81 | (C) | ||
| 016 | I0-91110 518-0 | NUT CENTER BOLT,LEAF SPR,FRT | 1 | 1907- | NPS81 | M18 | ||
| 003 | I7-65001 224-A | SPRING LEAF,NO 3,FRT | 1 | 2201- | NPS81 | |||
| 004 | I7-65001 225-A | SPRING LEAF,NO 4,FRT | 1 | 2201- | NPS81 | |||
| 015 | I7-07008 173-A | BOLT CENTER,LEAF SPR,FRT | 1 | 2201- | NPS81 | |||
| 033 | I8-98094 417-0 | SPRING ASM LEAF,FRT MAIN | 1 | 1907- | NPS81 | |||
| 005 | I8-98080 193-0 | SPRING LEAF,NO 5,FRT | 1 | 1907-2212 | NPS81 | |||
| 002 | I8-98080 189-0 | SPRING LEAF,NO 2,FRT | 1 | 1907-2212 | NPS81 | |||
| 004 | I8-98080 197-0 | SPRING LEAF,NO 4,FRT | 1 | 1907-2212 | NPS81 | |||
| 017 | I7-94118 588-A | BUSHING LEAF SPR,FRT | 2 | 1907- | NQR81 | (A) | ||
| 003 | I8-98080 190-0 | SPRING LEAF,NO 3,FRT | 1 | 1907-2212 | NPS81 | |||
| 004 | I8-98193 110-A | SPRING LEAF,NO 4,FRT | 1 | 1907- | NQR81 | |||
| 016 | I7-09400 055-A | NUT CENTER BOLT,LEAF SPR,FRT | 1 | 1907- | NQR81 | M10 | ||
| 015 | I8-98095 023-0 | BOLT CENTER,LEAF SPR,FRT | 1 | 1907-2112 | NPS81 | |||
| 006 | I8-98193 105-A | SPRING LEAF,NO 6,FRT | 1 | 1907- | NQR81 | |||
| 004 | I7-65081 225-A | SPRING LEAF,NO 4,FRT | 1 | 2201- | NPS81 | |||
| 001 | I8-98094 418-0 | SPRING LEAF,NO 1,FRT | 1 | 1907-2212 | NPS81 | |||
| 002 | I8-98193 101-A | SPRING LEAF,NO 2,FRT | 1 | 1907- | NQR81 | |||
| 015 | I7-98081 376-A | BOLT CENTER,LEAF SPR,FRT | 1 | 1907- | NQR81 | |||
| 005 | I8-98193 111-A | SPRING LEAF,NO 5,FRT | 1 | 1907- | NQR81 | |||
| 002 | I8-98080 195-0 | SPRING LEAF,NO 2,FRT | 1 | 1907-2212 | NPS81 | |||
| 001 | I7-65081 222-A | SPRING LEAF,NO 1,FRT | 1 | 2201- | NPS81 | |||
| 003 | I8-98193 109-A | SPRING LEAF,NO 3,FRT | 1 | 1907- | NQR81 | |||
| 024 | I7-98193 187-A | LINER LEAF SPR,FWD FRT | 2 | 1907- | NQR81 | (A) | ||
| 024 | I7-98193 188-A | LINER LEAF SPR,FWD FRT | 2 | 1907- | NQR81 | (B) | ||
| 019 | I7-97084 845-A | SPACER LEAF SPRING,FRT | 4 | 1907- | NQR81 | |||
| 020 | I8-98095 024-0 | SEAT LEAF SPR,FRT | 1 | 1907- | NPS81 | |||
| 003 | I8-98193 102-A | SPRING LEAF,NO 3,FRT | 1 | 1907- | NQR81 | |||
| 002 | I8-98193 108-A | SPRING LEAF,NO 2,FRT | 1 | 1907- | NQR81 | |||
| 003 | I7-65081 224-A | SPRING LEAF,NO 3,FRT | 1 | 2201- | NPS81 | |||
| 001 | I7-65001 222-A | SPRING LEAF,NO 1,FRT | 1 | 2201- | NPS81 | |||
| 017 | I7-94130 354-A | BUSHING LEAF SPR,FRT | 1 | 1907- | NQR81 | (B) | ||
| 004 | I8-98080 191-0 | SPRING LEAF,NO 4,FRT | 1 | 1907-2212 | NPS81 |
