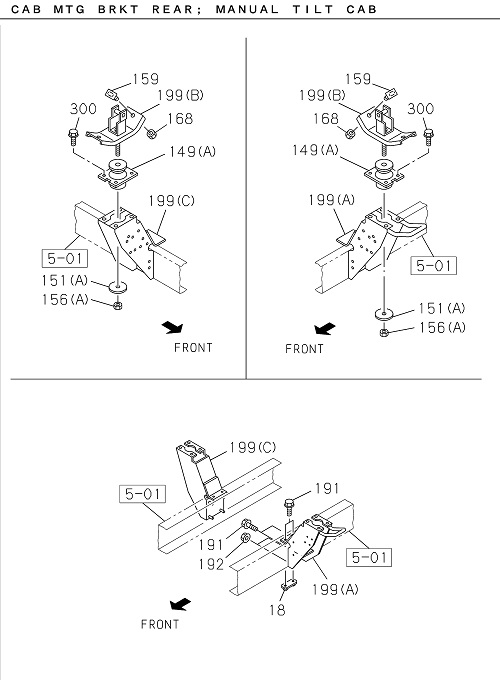

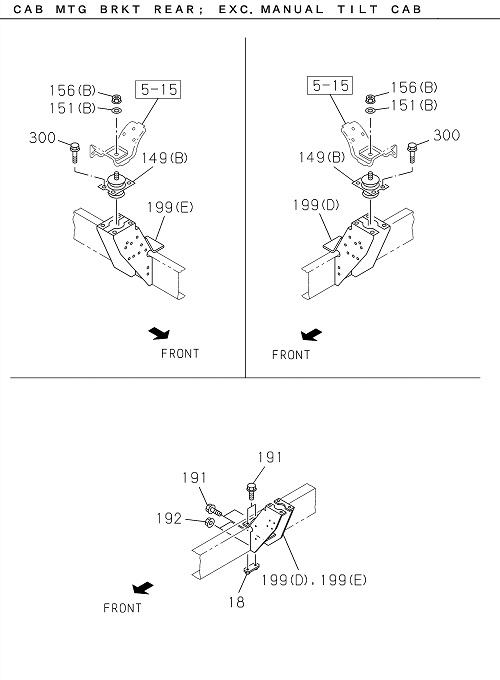

5-10 | CAB MOUNTING FRAME SIDE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 199 | I8-98036 883-0 | BRACKET CAB RR MTG | 2 | 1907- | ALL | (B) | ||
| 072 | I0-91614 714-0 | WASHER PL,BRKT TO FRAME | 1 | 1907- | ALL | ID=15 OD=36 | ||
| 156 | I0-91111 516-0 | NUT CAB MTG RR | 2 | 1907- | ALL | (A) M16 | ||
| 105 | I0-28661 435-0 | BOLT BRKT TO CAB FRAME | 1 | 1907- | ALL | M14X35 FLANGE | ||
| 001 | I8-98020 467-5 | BRACKET CAB MTG | 1 | 1907- | ALL | (B) | ||
| 300 | I0-28651 020-0 | BOLT MTG RUBBER | 8 | 1907- | ALL | M10X20 FLANGE | ||
| 199 | I8-98338 384-0 | BRACKET CAB RR MTG | 1 | 1907- | NQR81 | (D) | ||
| 168 | I0-91180 108-0 | NUT CUSHION RUBBER,BODY MTG | 4 | 1907- | ALL | M8 FLANGE | ||
| 151 | I8-97359 042-1 | WASHER CAB MTG,RR UPR | 2 | 1907- | ALL | (A) ID=17 OD=62 | ||
| 192 | I0-91180 112-0 | NUT BRKT FIX | 8 | 1907- | ALL | M12 FLANGE | ||
| 191 | I0-28651 240-0 | BOLT BRKT FIX | 8 | 1907- | ALL | M12X40 FLANGE | ||
| 002 | I8-97061 514-0 | BUSHING TORSION BAR | 2 | 1907- | NQR81 | |||
| 149 | I8-98021 561-1 | RUBBER MTG,CAB,UPR RR | 2 | 1907- | ALL | (A) H=62 | ||
| 034 | I0-28866 414-0 | BOLT CAB MTG BRKT,CAB SIDE | 4 | 1907- | ALL | |||
| 001 | I8-98074 798-2 | BRACKET CAB MTG | 1 | 1907- | ALL | (A) | ||
| 151 | I8-97359 040-1 | WASHER CAB MTG,RR UPR | 2 | 1907- | NQR81 | (B) ID=16.5 OD=58 | ||
| 007 | I0-28661 440-0 | BOLT BRKT,CAB TILT | 2 | 1907- | ALL | M14X40 FLANGE | ||
| 199 | I8-98338 386-0 | BRACKET CAB RR MTG | 1 | 1907- | NQR81 | (E) | ||
| 199 | I8-98338 388-0 | BRACKET CAB RR MTG | 1 | 1907- | ALL | (A) | ||
| 001 | I8-98074 800-2 | BRACKET CAB MTG | 1 | 1907- | ALL | (C) | ||
| 156 | I0-91180 114-0 | NUT CAB MTG RR | 2 | 1907- | NQR81 | (B) M14 FLANGE | ||
| 199 | I8-98338 387-0 | BRACKET CAB RR MTG | 1 | 1907- | ALL | (C) | ||
| 149 | I8-98038 868-0 | RUBBER MTG,CAB,UPR RR | 2 | 1907- | NQR81 | (B) H=94 | ||
| 159 | I8-97113 340-0 | RUBBER CUSHION,CAB MTG | 4 | 1907- | ALL | |||
| 020 | I8-98007 037-1 | RUBBER MTG,CAB BRKT | 1 | 1907- | ALL | |||
| 023 | I8-98039 989-0 | NUT MTG BRKT | 4 | 1907- | ALL | M14 | ||
| 104 | I8-97383 788-1 | BRACKET CAB FRAME,CAB FRT MTG | 1 | 1907- | ALL | |||
| 018 | I8-97034 139-2 | PLATE MTG BRKT FIX | 2 | 1907- | ALL |
