5-15 | CAB MOUNTING CAB SIDE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 088 | I0-91610 610-0 | WASHER PL,CAB STAY PIN | 2 | 1907- | ALL | ID=10.5 OD=22 T=1.6 | ||

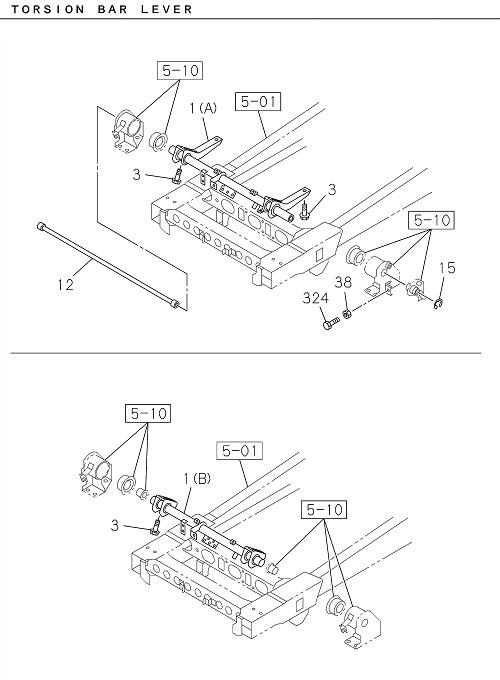

| 001 | I8-98077 693-0 | LEVER TORSION BAR | 1 | 1907- | NQR81 | (B) | ||
| 104 | I0-28660 820-0 | BOLT CAB STAY BRKT | 3 | 1907- | ALL | M8X20 FLANGE | ||
| 095 | I8-94160 167-2 | SPRING RETURN,CAB STAY | 1 | 1907- | ALL | |||

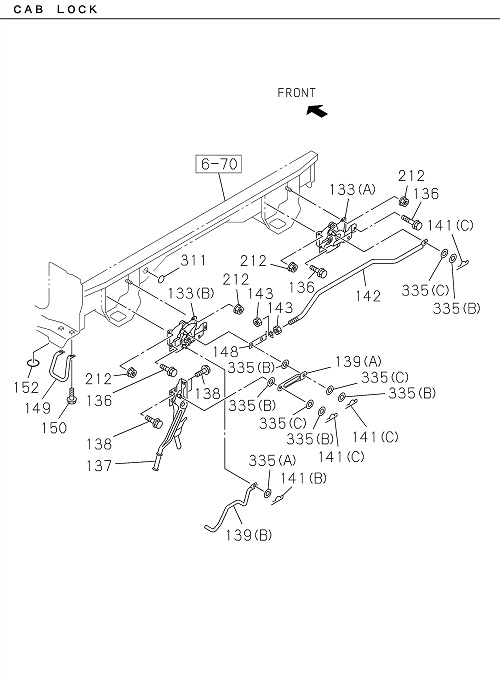

| 137 | I8-97584 469-3 | CONTROL UNIT CAB LOCK | 1 | 1907- | ALL | |||
| 142 | I8-97410 633-0 | ROD HOOK TO HOOK | 1 | 1907- | ALL | |||
| 038 | I8-98039 988-0 | NUT LK | 1 | 1907- | ALL | M14 | ||
| 145 | I8-98051 939-0 | BOLT CAB RR MTG BRKT | 12 | 1907- | NQR81 | M8X24.5 W/LK&PL WASHER | ||
| 141 | I8-98062 280-0 | PIN SNAP,CAB LOCK ROD | 1 | 1907- | ALL | (A) L=32.6 | ||
| 103 | I1-09744 107-0 | PIN JOINT,CAB STAY | 1 | 1907- | ALL | OD=10 L=48 | ||
| 245 | I1-62500 587-0 | BUSHING CAB STAY | 4 | 1907- | ALL | |||
| 092 | I8-98011 317-0 | BRACKET CAB STAY TO FRAME | 1 | 1907- | ALL | |||
| 012 | I8-98166 027-0 | BAR TORSION,UPR | 1 | 1907- | ALL | |||
| 335 | I8-94242 854-0 | WASHER CAB LOCK ROD | 1 | 1907- | ALL | (A) ID=8.4 OD=14 | ||
| 003 | I8-97359 033-0 | BOLT LEVER | 6 | 1907- | ALL | M12X37 W/LK&PL WASHER | ||
| 139 | I8-98128 202-0 | ROD CAB LOCK,LEVER TO HOOK | 1 | 1907- | ALL | (B) | ||
| 015 | I8-97359 034-0 | RING SNAP,TORSION BAR | 1 | 1907- | ALL | |||
| 086 | I0-91805 506-0 | RING SNAP,LOCK LEVER,CAB STAY | 1 | 1907- | ALL | ID=6 | ||
| 096 | I8-98123 513-0 | PIN JOINT | 1 | 1907- | ALL | |||
| 085 | I8-94331 481-0 | LEVER LOCK,CAB STAY | 1 | 1907- | ALL | |||
| 091 | I0-81124 020-0 | PIN SPLIT,CAB STAY | 1 | 1907- | ALL | OD=3.7 L=20 | ||
| 098 | I1-09985 183-0 | WASHER CAB STAY | 1 | 1907- | ALL | ID=10.5 T=2.0 | ||
| 141 | I8-98039 426-1 | PIN SNAP,CAB LOCK ROD | 3 | 1907- | ALL | (C) L=34 | ||
| 087 | I0-81123 020-0 | PIN SPLIT,CAB STAY PIN | 1 | 1907- | ALL | OD=2.8 L=20 | ||

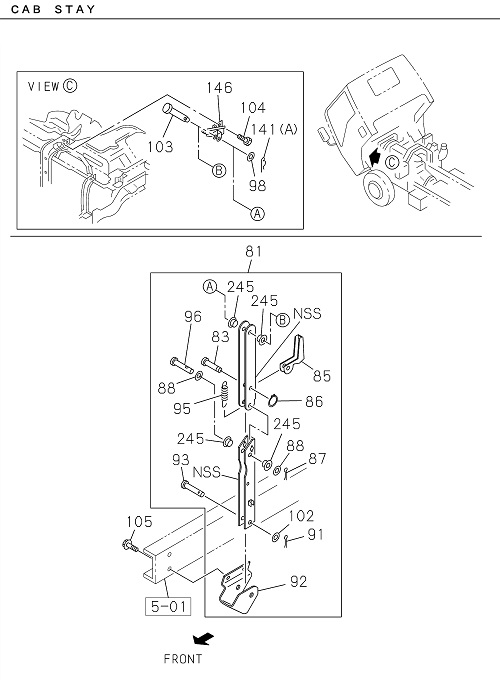

| 081 | I8-98159 857-0 | STAY ASM CAB TILT | 1 | 1907- | ALL | |||
| 335 | I0-91610 512-0 | WASHER CAB LOCK ROD | 5 | 1907- | ALL | (B) ID=12.5 OD=22 | ||
| 335 | I8-98060 839-0 | WASHER CAB LOCK ROD | 3 | 1907- | ALL | (C) ID=13 OD=22 | ||
| 139 | I8-97584 483-2 | ROD CAB LOCK,LEVER TO HOOK | 1 | 1907-2106 | ALL | (A) | ||
| 136 | I0-28650 820-0 | BOLT CAB LK | 4 | 1907- | ALL | M8X20 FLANGE | ||
| 102 | I0-91610 612-0 | WASHER PL,CAB STAY | 1 | 1907- | ALL | ID=12.5 OD=26 | ||
| 139 | I8-97826 129-0 | ROD CAB LOCK,LEVER TO HOOK | 1 | 2107- | ALL | (A) | ||
| 093 | I8-98122 498-0 | PIN CAB STAY | 1 | 1907- | ALL | |||
| 150 | I0-28650 825-0 | BOLT TILT HANDLE | 2 | 1907- | ALL | M8X25 FLANGE | ||
| 001 | I8-98074 174-1 | LEVER TORSION BAR | 1 | 1907- | ALL | (A) | ||
| 146 | I8-97387 328-2 | BRACKET ASM CAB STAY UPR | 1 | 1907- | ALL | |||
| 141 | I8-98039 045-1 | PIN SNAP,CAB LOCK ROD | 1 | 1907- | ALL | (B) L=25.3 | ||
| 105 | I0-28651 030-0 | BOLT CAB STAY | 2 | 1907- | ALL | M10X30 FLANGE | ||
| 149 | I8-98067 938-0 | HANDLE TILT | 1 | 1907- | ALL | |||
| 148 | I8-97410 736-0 | JOINT JAW,HOOK TO HOOK | 1 | 1907- | ALL | |||
| 138 | I0-28650 820-0 | BOLT CAB LOCK CONT UNIT | 3 | 1907- | ALL | M8X20 FLANGE | ||

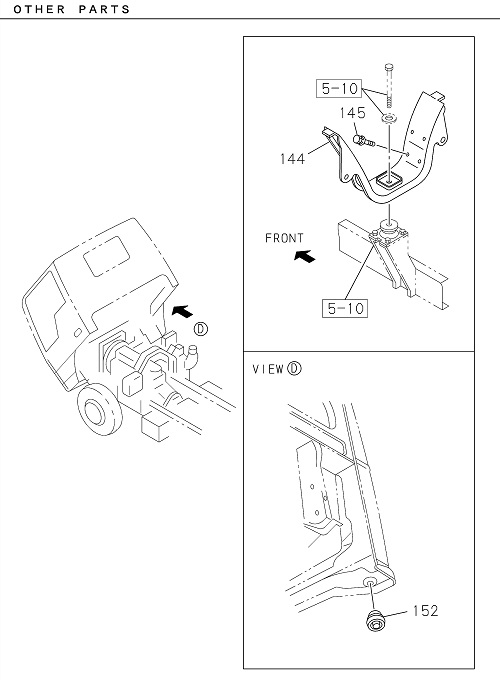

| 152 | I1-76798 029-0 | GROMMET DUMMY HOLE,CAB TILT LOCK | 2 | 1907- | NQR81 | OD=25 BLACK | ||
| 083 | I8-98122 493-0 | PIN JOINT,CAB STAY | 1 | 1907- | ALL | |||
| 212 | I0-91180 108-0 | NUT BRKT,CAB LOCK | 4 | 1907- | ALL | M8 FLANGE | ||
| 311 | I8-98031 126-0 | SEAL CAB LOCK | 1 | 1907- | ALL | OD=32 BLACK | ||
| 133 | I8-98182 353-1 | LOCK ASM CAB | 1 | 1907- | R | ALL | (A) | |
| 324 | I8-98004 319-1 | BOLT ADJUST | 1 | 1907- | ALL | M14X55 | ||
| 144 | I8-97853 066-4 | BRACKET ASM CAB RR MTG | 2 | 1907- | NQR81 | |||
| 143 | I0-91110 510-0 | NUT JAW JOINT,HOOK TO HOOK | 2 | 1907- | ALL | M10 | ||
| 133 | I8-97410 270-3 | LOCK ASM CAB | 1 | 1907- | L | ALL | (B) | |
| 003 | I8-97359 033-0 | BOLT LEVER | 4 | 1907- | NQR81 | M12X37 W/LK&PL WASHER |
