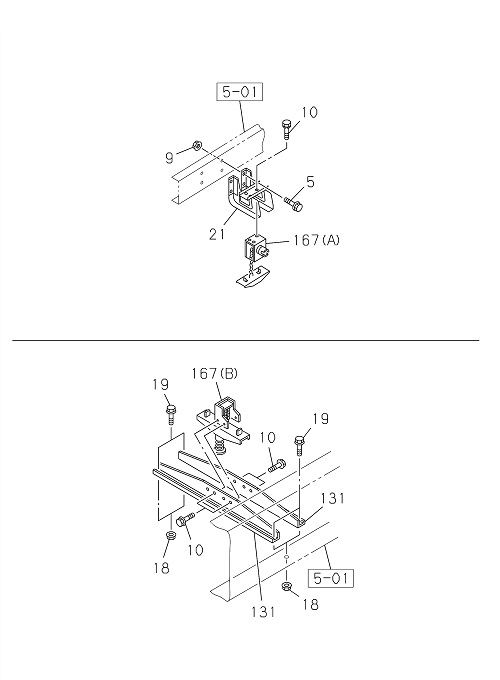

5-30 | SPARE TIRE CARRIER AND COVER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 018 | I0-91180 110-0 | NUT MEMBER | 4 | 1907- | NPS81 | M10 FLANGE | ||
| 010 | I0-28650 820-0 | BOLT TIRE HANGER | 3 | 1907- | NQR81 | M8X20 FLANGE | ||
| 167 | I8-98049 238-0 | HANGER TIRE | 1 | 1907- | NPS81 | (B) | ||
| 021 | I8-98072 378-2 | BRACKET SPARE TIRE HANGER | 1 | 1907- | NQR81 | |||
| 021 | I8-98019 889-0 | BRACKET SPARE TIRE HANGER | 1 | 1907- | NPS81 | |||
| 019 | I0-28651 030-0 | BOLT C/MBR | 4 | 1907- | NPS81 | M10X30 FLANGE | ||
| 010 | I0-28650 825-0 | BOLT TIRE HANGER | 4 | 1907- | NPS81 | M8X25 FLANGE | ||
| 009 | I0-91180 110-0 | NUT BRKT TO FRAME | 4 | 1907- | NQR81 | M10 FLANGE | ||
| 005 | I0-28051 025-0 | BOLT BRKT TO FRAME | 4 | 1907- | NQR81 | M10X25 FLANGE | ||
| 167 | I8-97010 955-1 | HANGER TIRE | 1 | 1907- | NQR81 | (A) | ||
| 131 | I8-98035 827-1 | CROSSMEMBER SPARE TIRE | 2 | 1907- | NPS81 |
