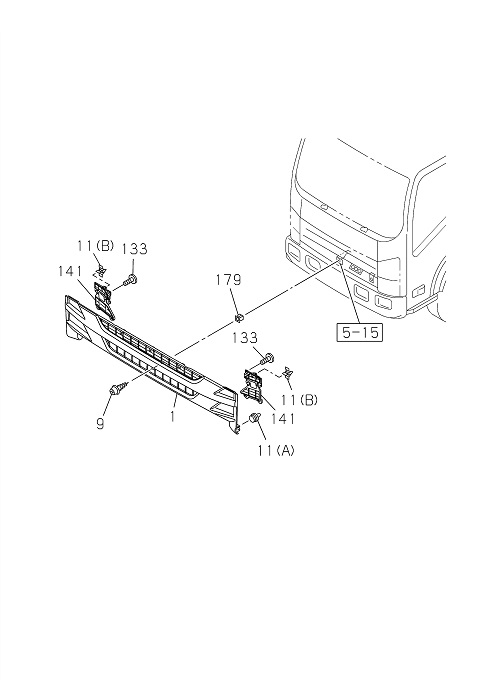

6-03 | RADIATOR GRILLE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 141 | I8-98244 212-0 | COVER RAD GRILLE | 1 | 1907- | ALL | |||
| 001 | I8-98244 209-1 | GRILLE RAD | 1 | 1907- | ALL | |||
| 133 | I0-72180 512-0 | SCREW COVER | 10 | 1907- | ALL | T25 M5X12 TAPPING HEXALOBULAR | ||
| 011 | I8-97581 651-2 | CLIP RAD GRILLE | 2 | 1907- | ALL | (A) | ||
| 141 | I8-98244 213-0 | COVER RAD GRILLE | 1 | 1907- | ALL | |||
| 009 | I0-74165 516-0 | SCREW RAD GRILLE | 1 | 1907- | ALL | M5X16 TAPPING W/PL WASHER | ||
| 179 | I8-94291 927-0 | RETAINER GRILLE,RAD | 1 | 1907- | ALL | D=7X7 L=7.5 | ||
| 011 | I8-98025 698-0 | CLIP RAD GRILLE | 5 | 1907- | ALL | (B) |
