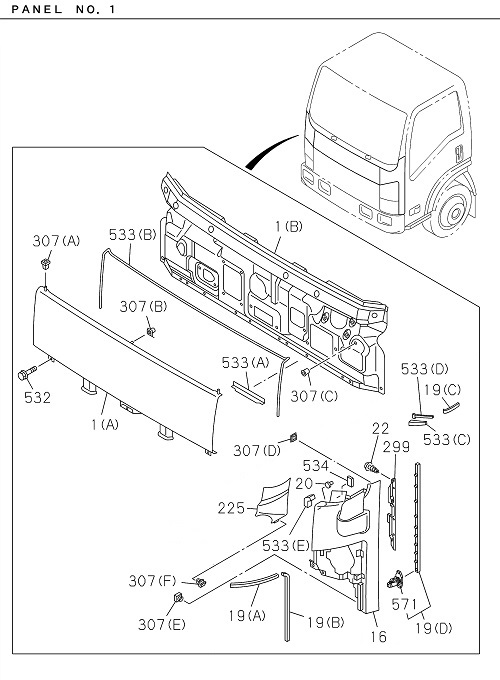

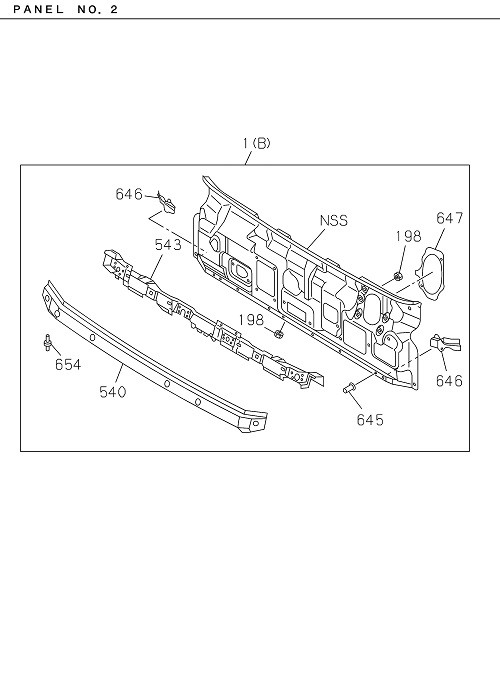

6-05 | FRONT PANEL
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I8-98028 749-3 | SEAL FRT SIDE PANEL | 1 | 1907- | ALL | (D) | ||
| 299 | I8-98028 145-1 | COVER FRT PANEL SIDE | 1 | 1907- | ALL | |||
| 198 | I9-09114 086-0 | NUT PANEL | 4 | 1907- | NQR81 | M6 | ||
| 016 | I8-97405 621-B | PANEL FRONT,SIDE | 1 | 1907- | ALL | WHITE | ||
| 307 | I8-98034 363-1 | GROMMET FRT PANEL | 4 | 1907- | ALL | (C) OD=20 | ||
| 225 | I8-98036 521-3 | COVER SIDE,FRT | 1 | 1907- | ALL | |||
| 533 | I8-98043 511-1 | SEAL FRT PANEL | 2 | 1907- | ALL | (D) | ||
| 571 | I8-98027 457-0 | CLIP SEAL | 20 | 1907- | ALL | |||
| 307 | I8-98021 969-0 | GROMMET FRT PANEL | 1 | 1907- | ALL | (A) | ||
| 019 | I8-98028 750-3 | SEAL FRT SIDE PANEL | 1 | 1907- | ALL | (D) | ||
| 533 | I8-98064 939-0 | SEAL FRT PANEL | 2 | 1907- | ALL | (E) | ||
| 645 | I8-98013 112-0 | STUD FRT PANEL | 6 | 1907- | ALL | M6X12 | ||
| 307 | I8-98028 743-0 | GROMMET FRT PANEL | 2 | 1907- | ALL | (F) | ||
| 307 | I8-98021 300-1 | GROMMET FRT PANEL | 4 | 1907- | ALL | (E) | ||
| 019 | I8-98062 215-0 | SEAL FRT SIDE PANEL | 2 | 1907- | ALL | (B) | ||
| 016 | I6-97405 625-0 | PANEL FRONT,SIDE | 1 | 1907- | ALL | (IADG) | ||
| 533 | I8-98021 965-2 | SEAL FRT PANEL | 1 | 1907- | ALL | (A) | ||
| 020 | I8-97410 739-1 | CLIP FRT PANEL SIDE | 4 | 1907- | ALL | |||
| 016 | I8-97405 625-B | PANEL FRONT,SIDE | 1 | 1907- | ALL | WHITE | ||
| 019 | I8-98035 268-0 | SEAL FRT SIDE PANEL | 2 | 1907- | ALL | (A) | ||
| 001 | I8-98181 027-0 | PANEL ASM FRT | 1 | 1907- | NPS81 | (B) | ||
| 307 | I8-98021 968-0 | GROMMET FRT PANEL | 1 | 1907- | ALL | (A) | ||
| 540 | I8-97585 325-3 | PANEL FRONT,OUTER | 1 | 1907- | ALL | |||
| 198 | I9-09114 086-0 | NUT PANEL | 4 | 1907- | NPS81 | M6 | ||
| 307 | I8-98023 229-1 | GROMMET FRT PANEL | 1 | 1907- | ALL | (B) | ||
| 022 | I0-74360 410-0 | SCREW FRT PANEL SIDE | 6 | 1907- | ALL | M4X10 TAPPING W/PL WASHER | ||
| 019 | I8-98038 608-0 | SEAL FRT SIDE PANEL | 2 | 1907- | ALL | (C) | ||
| 533 | I8-98043 509-0 | SEAL FRT PANEL | 1 | 1907- | ALL | (C) | ||
| 534 | I8-98059 208-1 | FASTENER | 2 | 1907- | ALL | 20X30 | ||
| 299 | I8-98028 144-1 | COVER FRT PANEL SIDE | 1 | 1907- | ALL | |||
| 533 | I8-98043 510-0 | SEAL FRT PANEL | 1 | 1907- | ALL | (C) | ||
| 532 | I0-52010 616-0 | BOLT FRT PANEL | 4 | 1907- | ALL | M6X16 W/LK&PL WASHER | ||
| 646 | I8-98023 099-1 | REINFORCEMENT DASH | 1 | 1907- | ALL | |||
| 533 | I8-98309 764-0 | SEAL FRT PANEL | 1 | 1907-2002 | ALL | (B) | ||
| 647 | I8-98006 327-0 | REINFORCEMENT WIPER MOTOR | 1 | 1907- | ALL | |||
| 646 | I8-98023 098-1 | REINFORCEMENT DASH | 1 | 1907- | ALL | |||
| 307 | I8-97410 738-0 | GROMMET FRT PANEL | 2 | 1907- | ALL | (D) | ||
| 654 | I8-98021 967-2 | PIN FRT PANEL | 2 | 1907- | ALL | |||
| 001 | I8-98181 027-0 | PANEL ASM FRT | 1 | 1907- | NQR81 | (B) | ||
| 016 | I6-97405 621-0 | PANEL FRONT,SIDE | 1 | 1907- | ALL | (IADG) | ||
| 001 | I8-98122 695-0 | PANEL ASM FRT | 1 | 1907- | ALL | (A) | ||
| 225 | I8-98036 520-3 | COVER SIDE,FRT | 1 | 1907- | ALL | |||
| 533 | I8-97553 115-0 | SEAL FRT PANEL | 1 | 2003- | ALL | (B) | ||
| 543 | I8-97585 328-5 | CLOSING FRT MTG RAIL | 1 | 1907- | ALL |
