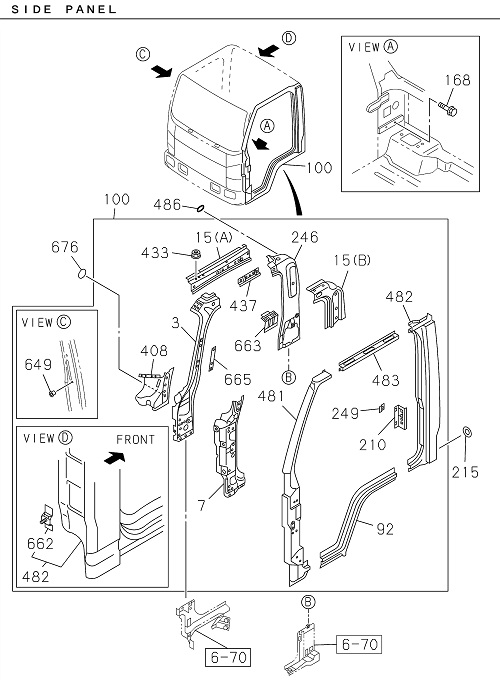

6-20 | SIDE PANEL AND STEP
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 435 | I8-98004 345-0 | BOLT RR STEP | 12 | 1907- | ALL | M8X18 | ||
| 210 | I8-97509 448-0 | PANEL DOOR STRIKER REINF | 1 | 1907- | L | ALL | ||
| 168 | I0-38050 612-0 | BOLT BODY SIDE PANEL | 8 | 1907- | ALL | T25 M6X12 HEXALOBULAR SOCKET | ||
| 246 | I8-97586 154-3 | PANEL RR PILLAR,INNER | 1 | 1907- | R | ALL | ||
| 092 | I8-98055 461-1 | PANEL SIDE SILL,CAB | 1 | 1907- | R | ALL | ||
| 549 | I0-28650 825-0 | BOLT STAY | 2 | 1907- | NPS81 | M8X25 FLANGE | ||
| 249 | I8-98012 287-1 | REINFORCEMENT RR PILLAR | 1 | 1907- | ALL | |||
| 483 | I8-98055 460-0 | PANEL SIDE CANTRAIL | 1 | 1907- | L | ALL | ||
| 662 | I8-97584 611-1 | BRACKET DUCT | 1 | 1907- | R | ALL | ||
| 672 | I8-98070 085-0 | STAY STEP | 1 | 1907- | R | NPS81 | ||
| 003 | I8-98058 236-1 | PANEL CLOSING,FRT PILLAR | 1 | 1907- | R | ALL | ||
| 672 | I8-98070 086-0 | STAY STEP | 1 | 1907- | L | NPS81 | ||
| 660 | I8-98111 558-0 | CLIP FLAP | 4 | 1907- | NQR81 | |||
| 663 | I8-97585 207-2 | BRACKET AIR | 1 | 1907- | R | ALL | ||
| 007 | I8-98377 771-0 | REINFORCEMENT HINGE | 1 | 1907- | L | ALL | ||
| 103 | I8-98077 159-0 | PLATE STEP | 1 | 1907- | L | NPS81 | (A) | |
| 355 | I8-98070 088-1 | STAY | 2 | 1907- | NPS81 | |||
| 107 | I0-28650 825-0 | BOLT SIDE STEP | 4 | 1907- | NPS81 | M8X25 FLANGE | ||
| 288 | I0-91180 108-0 | NUT STEP | 8 | 1907- | NPS81 | M8 FLANGE | ||
| 215 | I8-94122 971-0 | GROMMET RR PILLAR | 1 | 1907- | ALL | OD=35 | ||
| 408 | I8-97585 316-3 | GUSSET PILLAR | 1 | 1907- | R | ALL | ||
| 102 | I8-98070 082-0 | STEP BODY SIDE | 1 | 1907- | R | NPS81 | ||
| 481 | I8-98055 470-0 | PANEL SIDE FRT PILLAR | 1 | 1907- | R | ALL | ||
| 246 | I8-97585 301-3 | PANEL RR PILLAR,INNER | 1 | 1907- | L | ALL | ||
| 483 | I8-98055 458-0 | PANEL SIDE CANTRAIL | 1 | 1907- | R | ALL | ||
| 550 | I0-91180 108-0 | NUT STAY | 8 | 1907- | NPS81 | M8 FLANGE | ||
| 676 | I1-76798 029-0 | SEAL | 1 | 1907- | ALL | OD=20 T=0.05 BLACK | ||
| 649 | I8-97249 574-0 | NUT POP | 2 | 1907- | R | ALL | M5 POP NUT | |
| 408 | I8-97585 317-4 | GUSSET PILLAR | 1 | 1907- | L | ALL | ||
| 015 | I8-97585 302-1 | PANEL CANT RAIL SIDE | 1 | 1907- | R | ALL | (B) | |
| 437 | I8-98039 019-0 | BRACKET ROOF RAIL | 1 | 1907- | R | ALL | ||
| 102 | I8-98070 083-0 | STEP BODY SIDE | 1 | 1907- | L | NPS81 | ||
| 103 | I8-98022 775-A | PLATE STEP | 1 | 1907- | L | NQR81 | (A) | |
| 015 | I8-97585 294-2 | PANEL CANT RAIL SIDE | 1 | 1907- | R | ALL | (A) | |
| 003 | I8-98058 237-1 | PANEL CLOSING,FRT PILLAR | 1 | 1907- | L | ALL | ||
| 007 | I8-97585 240-3 | REINFORCEMENT HINGE | 1 | 1907- | R | ALL | ||
| 015 | I8-97585 295-2 | PANEL CANT RAIL SIDE | 1 | 1907- | L | ALL | (A) | |
| 482 | I8-98055 463-1 | PANEL SIDE RR PILLAR | 1 | 1907- | R | ALL | ||
| 100 | I8-97498 793-0 | PANEL ASM BODY SIDE | 1 | 1907- | L | ALL | ||
| 100 | I8-97498 758-0 | PANEL ASM BODY SIDE | 1 | 1907- | R | ALL | ||
| 659 | I8-97811 510-0 | CLIP SPRING NUT | 4 | 1907- | ALL | |||
| 486 | I8-98059 421-0 | SEAL BODY SIDE | 4 | 1907- | ALL | OD=20 T=0.05 WHITE | ||
| 433 | I9-09114 086-0 | NUT HEADER SHELF | 2 | 1907- | ALL | M6 | ||
| 103 | I8-98070 092-1 | PLATE STEP | 1 | 1907- | L | NPS81 | (B) | |
| 663 | I8-97585 208-2 | BRACKET AIR | 1 | 1907- | L | ALL | ||
| 665 | I8-97585 314-0 | REINFORCEMENT GRIP,ASSIST | 1 | 1907- | ALL | |||
| 210 | I8-97509 447-0 | PANEL DOOR STRIKER REINF | 1 | 1907- | R | ALL | ||
| 015 | I8-97585 303-2 | PANEL CANT RAIL SIDE | 1 | 1907- | L | ALL | (B) | |
| 482 | I8-98055 464-1 | PANEL SIDE RR PILLAR | 1 | 1907- | L | ALL | ||
| 103 | I8-98022 774-A | PLATE STEP | 1 | 1907- | R | NQR81 | (A) | |
| 103 | I8-98070 091-1 | PLATE STEP | 1 | 1907- | R | NPS81 | (B) | |
| 658 | I8-98037 560-1 | FLAP STEP | 2 | 1907- | NQR81 | |||
| 671 | I8-98070 093-0 | PLATE STEP RR | 2 | 1907- | NPS81 | |||
| 092 | I8-98055 462-1 | PANEL SIDE SILL,CAB | 1 | 1907- | L | ALL | ||
| 657 | I8-97378 910-0 | REFLECTOR REFLEX | 2 | 1907- | ALL | |||
| 103 | I8-98077 158-0 | PLATE STEP | 1 | 1907- | R | NPS81 | (A) | |
| 481 | I8-98055 451-0 | PANEL SIDE FRT PILLAR | 1 | 1907- | L | ALL | ||
| 437 | I8-98039 020-0 | BRACKET ROOF RAIL | 1 | 1907- | L | ALL |
