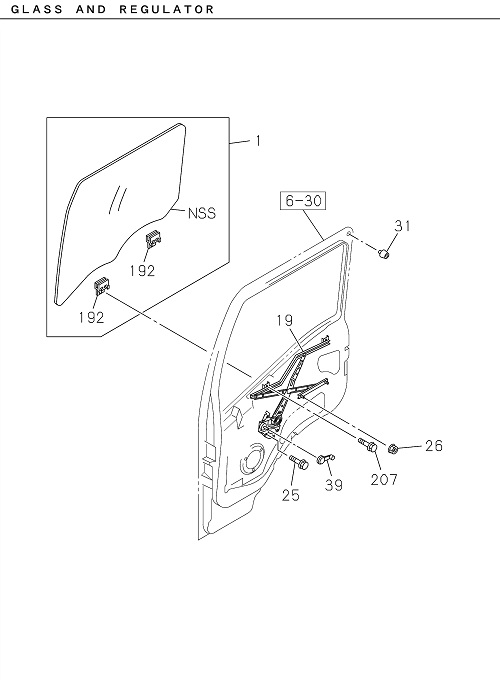

6-31 | FRONT DOOR GLASS AND REGULATOR
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

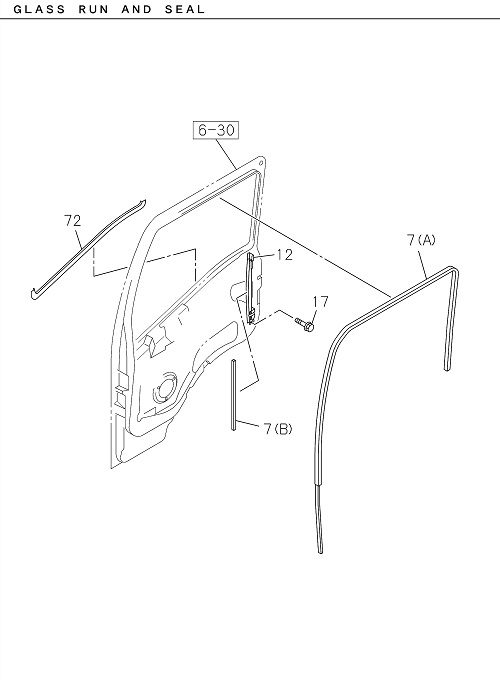

| 007 | I8-98322 199-0 | GLASS RUN FRT DOOR | 2 | 1907- | ALL | (B) | ||
| 007 | I8-98322 201-0 | GLASS RUN FRT DOOR | 1 | 1907- | ALL | (A) | ||
| 222 | I8-97405 319-0 | CAP GUARD BAR | 1 | 1907- | ALL | |||
| 039 | I8-97948 267-0 | HANDLE WINDOW REG,FRT DOOR | 2 | 1907- | ALL | |||
| 192 | I8-97288 022-0 | HOLDER DOOR GLASS | 4 | 1907- | ALL | |||
| 207 | I0-28050 610-0 | SCREW DOOR GLASS | 4 | 1907- | ALL | M6X10 FLANGE | ||
| 072 | I8-97926 958-0 | SEAL WAIST,FRT DOOR | 1 | 1907- | ALL | |||
| 031 | I8-97957 223-A | STOPPER RUBBER,DOOR INNER | 4 | 1907- | ALL | |||
| 017 | I0-28050 610-0 | SCREW RR CHANNEL | 4 | 1907- | ALL | M6X10 FLANGE | ||
| 227 | I8-97405 321-0 | RUBBER SHUTTER | 2 | 1907- | ALL | |||
| 007 | I8-98322 200-0 | GLASS RUN FRT DOOR | 1 | 1907- | ALL | (A) | ||
| 222 | I8-97405 318-0 | CAP GUARD BAR | 1 | 1907- | ALL | |||
| 019 | I8-98029 234-3 | REGULATOR WINDOW,FRT DOOR | 1 | 1907- | ALL | |||
| 012 | I8-98188 418-0 | CHANNEL GLASS RUN,FRT | 1 | 1907- | ALL | |||
| 223 | I8-98177 721-0 | SCREW GUARD BAR | 8 | 1907- | ALL | T25 M6X25 HEXALOBULAR SOCKET | ||
| 001 | I8-97696 475-A | GLASS FRT DOOR | 1 | 1907- | ALL | |||
| 025 | I0-28050 610-0 | BOLT WINDOW REG | 8 | 1907- | ALL | M6X10 FLANGE | ||
| 026 | I0-91180 106-0 | NUT FLANGE,WINDOW REG | 4 | 1907- | ALL | M6 FLANGE | ||

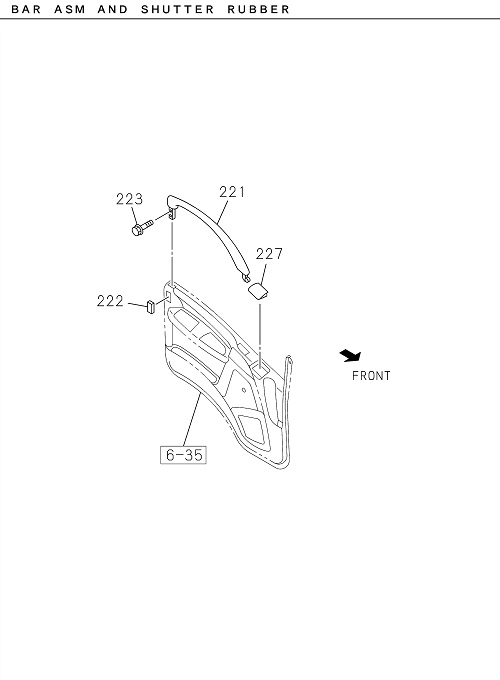

| 221 | I8-97405 316-2 | BAR ASM DOOR GLASS GUARD | 1 | 1907- | ALL | |||
| 019 | I8-98029 233-3 | REGULATOR WINDOW,FRT DOOR | 1 | 1907- | ALL | |||
| 012 | I8-98188 419-0 | CHANNEL GLASS RUN,FRT | 1 | 1907- | ALL | |||
| 221 | I8-97405 317-2 | BAR ASM DOOR GLASS GUARD | 1 | 1907- | ALL | |||
| 072 | I8-97926 957-0 | SEAL WAIST,FRT DOOR | 1 | 1907- | ALL | |||
| 001 | I8-97696 474-A | GLASS FRT DOOR | 1 | 1907- | ALL |
