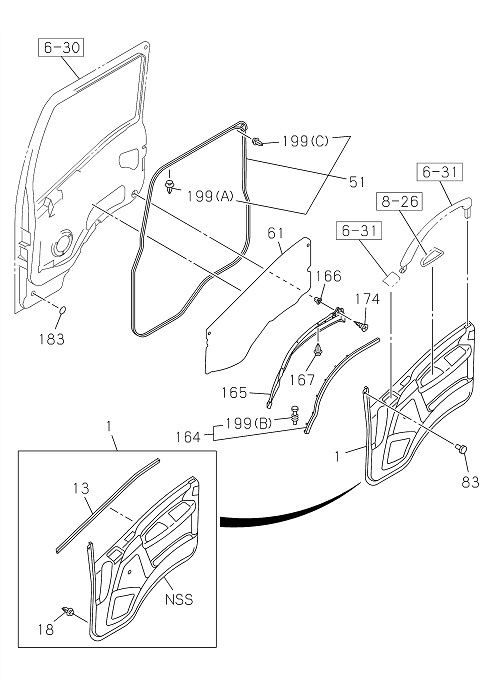

6-35 | FRONT DOOR TRIM
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 018 | I8-98004 025-0 | CLIP DOOR PAD | 14 | 1907- | ALL | |||
| 199 | I8-98062 270-0 | CLIP SEAL | 80 | 1907- | ALL | (A) NATURAL | ||
| 164 | I8-98022 741-A | SEAL SUB,SILL SIDE | 2 | 1907- | ALL | |||
| 183 | I1-76798 029-0 | SEAL LOCATION HOLE | 2 | 1907- | ALL | OD=25 BLACK | ||
| 083 | I8-97405 308-0 | CLIP DOOR TRIM | 2 | 1907- | ALL | |||
| 165 | I8-98022 738-1 | LINER DOOR LWR | 1 | 1907- | R | ALL | ||
| 166 | I8-94279 078-A | PLUG HOLE | 4 | 1907- | ALL | D=8.6X7.7 L=7.5 | ||
| 051 | I8-97927 014-0 | WEATHERSTRIP FRONT DOOR | 1 | 1907- | R | ALL | ||
| 199 | I8-98062 271-0 | CLIP SEAL | 2 | 1907- | ALL | (C) RED | ||
| 001 | I8-97696 053-A | PAD TRIM,FRT DOOR | 1 | 1907- | R | ALL | ||
| 001 | I8-97696 054-A | PAD TRIM,FRT DOOR | 1 | 1907- | L | ALL | ||
| 167 | I1-09983 105-0 | CLIP LINER | 6 | 1907- | ALL | D6X16 PUSH RIVET | ||
| 199 | I8-98027 457-0 | CLIP SEAL | 20 | 1907- | ALL | (B) NATURAL | ||
| 165 | I8-98022 739-1 | LINER DOOR LWR | 1 | 1907- | L | ALL | ||
| 013 | I8-98029 202-1 | SEAL DOOR TRIM | 1 | 1907- | L | ALL | ||
| 013 | I8-98029 201-1 | SEAL DOOR TRIM | 1 | 1907- | R | ALL | ||
| 061 | I8-97948 264-0 | SEAL WATER,DOOR PAD | 1 | 1907- | R | ALL | ||
| 061 | I8-97948 265-0 | SEAL WATER,DOOR PAD | 1 | 1907- | L | ALL | ||
| 051 | I8-98029 199-A | WEATHERSTRIP FRONT DOOR | 1 | 1907- | L | ALL | ||
| 174 | I0-72180 512-0 | SCREW LINER | 4 | 1907- | ALL | T25 M5X12 TAPPING HEXALOBULAR |
