6-47 | MUD GUARD AND INSULATOR
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

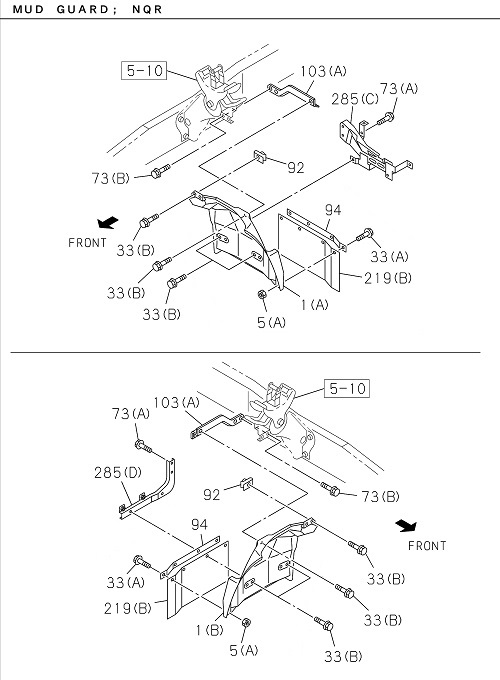

| 001 | I8-98337 646-0 | GUARD MUD,FRT | 1 | 1907- | NQR81 | (A) | ||
| 061 | I8-98278 132-0 | BRACKET COVER | 1 | 1907- | NPS81 | (B) | ||
| 139 | I8-98043 920-2 | PANEL SIDE | 1 | 1907- | NQR81 | (B) | ||
| 094 | I8-98344 556-0 | RETAINER FLAP RUBBER | 2 | 1907- | NQR81 | |||
| 103 | I8-98352 443-0 | BRACKET ASM RR MUD FLAP | 1 | 1907- | NPS81 | (C) | ||
| 001 | I8-98337 647-0 | GUARD MUD,FRT | 1 | 1907- | NQR81 | (B) | ||
| 139 | I8-98049 203-0 | PANEL SIDE | 1 | 1907- | NPS81 | (C) | ||
| 044 | I8-97997 832-0 | CLIP ANCHOR | 6 | 1907- | NPS81 | (B) OD=8.3 | ||
| 073 | I0-28650 825-0 | BOLT MUD COVER BRKT | 4 | 1907- | ALL | (B) M8X25 FLANGE | ||
| 005 | I8-98227 380-0 | NUT FLAP RUBBER | 8 | 1907- | ALL | (A) M6 FLANGE | ||
| 219 | I8-98345 991-0 | FLAP MUD GUARD | 2 | 1907- | NQR81 | (B) | ||
| 044 | I1-76378 155-0 | CLIP ANCHOR | 6 | 1907- | ALL | (A) OD=16 L=11 | ||

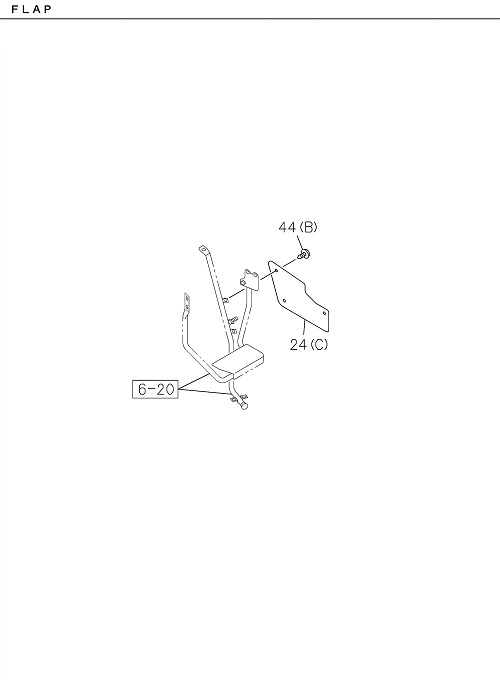

| 024 | I8-98094 591-1 | PLATE MUD COVER | 2 | 1907- | NPS81 | (C) | ||
| 686 | I8-98352 438-1 | FLAP ASM MUD | 1 | 1907- | NPS81 | (B) | ||
| 285 | I8-98352 435-0 | BRACKET MUD COVER | 1 | 1907- | NPS81 | (A) | ||
| 033 | I1-09030 093-0 | BOLT MUD COVER | 8 | 1907- | ALL | (B) M8X25 W/LK&PL WASHER | ||
| 061 | I8-98040 466-1 | BRACKET COVER | 1 | 1907- | NQR81 | (C) | ||
| 686 | I8-98352 437-1 | FLAP ASM MUD | 1 | 1907- | NPS81 | (A) | ||
| 103 | I8-98001 319-2 | BRACKET ASM RR MUD FLAP | 1 | 1907- | ALL | (A) | ||
| 192 | I8-98022 756-1 | SEAL MUD COVER | 1 | 1907- | ALL | (A) | ||
| 024 | I8-98154 258-0 | PLATE MUD COVER | 2 | 1907- | ALL | (B) | ||
| 192 | I8-98022 755-1 | SEAL MUD COVER | 1 | 1907- | ALL | (A) | ||

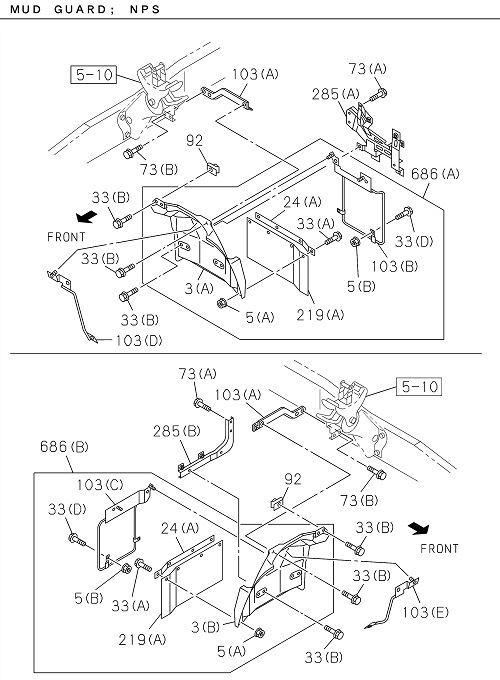

| 003 | I8-98352 440-1 | GUARD MUD,RR | 1 | 1907- | NPS81 | (A) | ||
| 103 | I8-98352 445-1 | BRACKET ASM RR MUD FLAP | 1 | 1907- | NPS81 | (D) | ||
| 285 | I8-98001 314-2 | BRACKET MUD COVER | 1 | 1907- | NQR81 | (D) | ||
| 219 | I8-98072 933-0 | FLAP MUD GUARD | 2 | 1907- | NPS81 | (A) | ||
| 254 | I8-98022 750-3 | COVER MUD,VALANCE | 1 | 1907- | ALL | |||
| 103 | I8-98352 442-0 | BRACKET ASM RR MUD FLAP | 1 | 1907- | NPS81 | (B) | ||
| 005 | I8-98029 921-0 | NUT FLAP RUBBER | 12 | 1907- | NPS81 | (B) M6 W/DISHED WASHER | ||
| 061 | I8-98040 465-1 | BRACKET COVER | 1 | 1907- | NQR81 | (D) | ||
| 285 | I8-98169 721-0 | BRACKET MUD COVER | 1 | 1907- | NQR81 | (C) | ||
| 103 | I8-98352 446-1 | BRACKET ASM RR MUD FLAP | 1 | 1907- | NPS81 | (E) | ||
| 192 | I8-98022 782-3 | SEAL MUD COVER | 2 | 1907- | ALL | (B) | ||

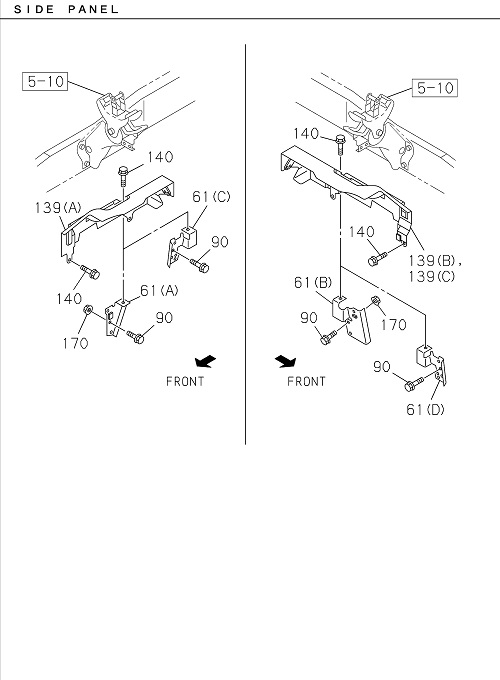

| 139 | I8-98115 458-1 | PANEL SIDE | 1 | 1907- | ALL | (A) | ||
| 170 | I0-91180 108-0 | NUT COVER | 2 | 1907- | NPS81 | M8 FLANGE | ||
| 061 | I8-98049 206-1 | BRACKET COVER | 1 | 1907- | NPS81 | (A) | ||
| 092 | I8-97329 625-0 | NUT MUD COVER | 2 | 1907- | ALL | M8 W/DISHED WASHER | ||
| 073 | I0-28651 025-0 | BOLT MUD COVER BRKT | 4 | 1907- | ALL | (A) M10X25 FLANGE | ||
| 285 | I8-98352 436-0 | BRACKET MUD COVER | 1 | 1907- | NPS81 | (B) | ||
| 090 | I0-28650 825-0 | BOLT COVER | 4 | 1907- | ALL | M8X25 FLANGE | ||
| 254 | I8-98022 751-3 | COVER MUD,VALANCE | 1 | 1907- | ALL | |||
| 033 | I8-98227 381-0 | BOLT MUD COVER | 8 | 1907- | ALL | (A) M6X16 FLANGE | ||
| 140 | I1-09030 094-0 | BOLT SIDE PANEL | 6 | 1907- | ALL | M8X35 W/LK&PL WASHER | ||
| 103 | I8-98001 315-2 | BRACKET ASM RR MUD FLAP | 1 | 1907- | ALL | (A) | ||
| 033 | I8-98061 108-0 | BOLT MUD COVER | 4 | 1907- | ALL | (C) M6X16 FLANGE | ||
| 024 | I8-98004 031-1 | PLATE MUD COVER | 2 | 1907- | NPS81 | (A) | ||
| 003 | I8-98352 439-1 | GUARD MUD,RR | 1 | 1907- | NPS81 | (B) | ||
| 205 | I8-94242 150-0 | FASTENER MUD COVER | 2 | 1907- | ALL | D=5.8 SCREW & GROMMET NYLON | ||
| 023 | I8-97997 832-0 | FASTENER MUD COVER | 6 | 1907- | ALL | OD=8.3 | ||
| 033 | I1-09980 495-0 | BOLT MUD COVER | 6 | 1907- | NPS81 | (D) M6X20 W/LK&PL WASHER | ||

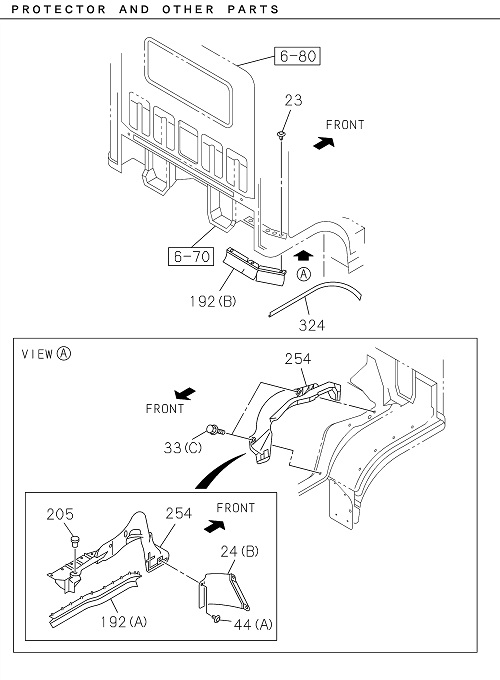

| 324 | I8-98022 786-2 | PROTECTOR FRT FENDER | 2 | 1907- | ALL |
