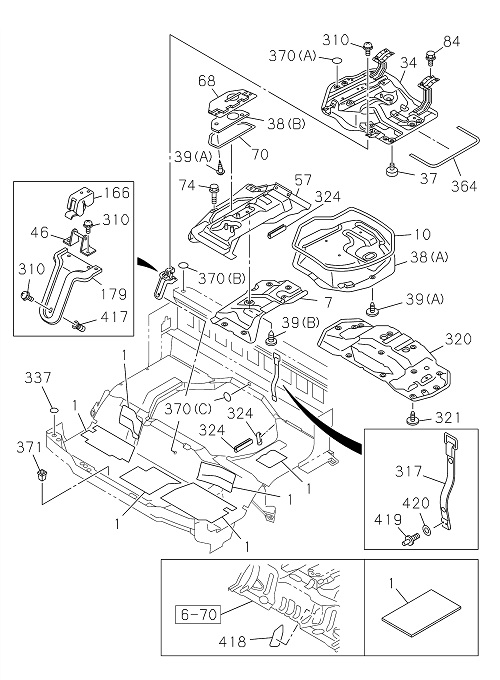

6-76 | FLOOR EQUIPMENT AND SEALING
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 317 | I8-97585 575-0 | BAND ENGINE COVER | 1 | 1907- | NQR81 | |||
| 034 | I8-97587 395-3 | COVER ASM ENG,CAB FLOOR | 1 | 1907- | NQR81 | |||
| 068 | I8-98040 141-0 | COVER ASM SUB,ENG COVER | 1 | 1907- | NQR81 | |||
| 337 | I8-98031 126-0 | SEAL CLIP HOLE | 4 | 1907- | NQR81 | OD=32 | ||
| 074 | I0-28650 820-0 | BOLT SUPPORT COVER TO FLOOR | 10 | 1907- | NQR81 | M8X20 FLANGE | ||
| 046 | I8-98040 145-0 | HOOK ASM ENG COVER | 2 | 1907- | NQR81 | |||
| 324 | I8-97892 742-0 | FINISHER FLOOR PANEL | 3 | 1907- | NQR81 | L=140 | ||
| 337 | I8-98031 126-0 | SEAL CLIP HOLE | 8 | 1907- | ALL | OD=32 | ||
| 070 | I8-97853 050-A | SEAL ENG SUB COVER,CAB FLOOR | 1 | 1907- | NQR81 | |||
| 039 | I8-97808 623-0 | CLIP INSULATOR,COVER | 5 | 1907- | NQR81 | (A) ID=6.2 L=11.4 | ||
| 007 | I8-98377 192-0 | INSULATOR SUPPORT COVER | 1 | 1907- | NQR81 | |||
| 321 | I8-97808 623-0 | CLIP INSULATOR,FLOOR | 15 | 1907- | NPS81 | ID=6.2 L=11.4 | ||
| 001 | I8-94262 093-0 | SHEET MELTING,FLOOR | AR | 1907- | ALL | T=1.5 | ||
| 166 | I8-98040 152-0 | LOCK ENG COVER | 2 | 1907- | NQR81 | |||
| 320 | I8-98242 225-0 | INSULATOR FLOOR,FRT | 1 | 1907- | NQR81 | |||
| 370 | I1-76798 029-0 | SEAL LOCATION HOLE | 1 | 1907- | NQR81 | (C) OD=25 | ||
| 337 | I8-98031 126-0 | SEAL CLIP HOLE | 4 | 1907- | NPS81 | OD=32 | ||
| 310 | I0-28650 616-0 | SCREW ENG COVER HOOK | 4 | 1907- | NQR81 | M6X16 FLANGE | ||
| 320 | I8-98242 225-0 | INSULATOR FLOOR,FRT | 1 | 1907- | NPS81 | |||
| 417 | I8-98013 752-0 | NUT POP | 1 | 1907- | NQR81 | M6 POP NUT | ||
| 037 | I5-74917 001-A | RUBBER BUFFER,ENG COVER | 2 | 1907- | NQR81 | OD=30 T=10 | ||
| 370 | I1-76798 029-0 | SEAL LOCATION HOLE | 3 | 1907- | NQR81 | (B) OD=20 T=0.05 | ||
| 179 | I8-98048 301-1 | REINFORCEMENT COVER | 1 | 1907- | NQR81 | |||
| 418 | I8-98090 192-2 | SEAL PROTECTOR | 1 | 1907- | NQR81 | |||
| 370 | I8-98031 126-0 | SEAL LOCATION HOLE | 3 | 1907- | NQR81 | (A) OD=32 | ||
| 371 | I8-94279 714-0 | GROMMET LOCATION HOLE | 2 | 1907- | ALL | 14.5X14.5 | ||
| 310 | I0-38050 616-0 | SCREW ENG COVER HOOK | 5 | 1907- | NQR81 | M6X16 HEXALOBULAR | ||
| 084 | I0-28650 820-0 | BOLT ENG COVER HINGE | 4 | 1907- | NQR81 | M8X20 FLANGE | ||
| 419 | I8-98065 262-0 | RIVET ENG COVER | 1 | 1907- | NQR81 | |||
| 057 | I8-97587 400-3 | COVER ASM SUPPORT,CAB FLOOR | 1 | 1907- | NQR81 | |||
| 321 | I8-97808 623-0 | CLIP INSULATOR,FLOOR | 15 | 1907- | NQR81 | ID=6.2 L=11.4 | ||
| 039 | I8-94279 997-0 | CLIP INSULATOR,COVER | 7 | 1907- | NQR81 | (B) OD=30 | ||
| 038 | I8-98242 226-0 | INSULATOR ENG COVER | 1 | 1907- | NQR81 | (A) | ||
| 364 | I8-97892 744-0 | FINISHER ENG COVER SIDE | 1 | 1907- | NQR81 | L=1100 | ||
| 010 | I8-98029 377-A | SEAL ENG COVER | 1 | 1907- | NQR81 | |||
| 418 | I8-98090 191-2 | SEAL PROTECTOR | 1 | 1907- | NQR81 | |||
| 038 | I8-98242 234-0 | INSULATOR ENG COVER | 1 | 1907- | NQR81 | (B) | ||
| 420 | I0-91614 705-0 | WASHER ENG COVER | 1 | 1907- | NQR81 | ID=5.3 OD=16 |
