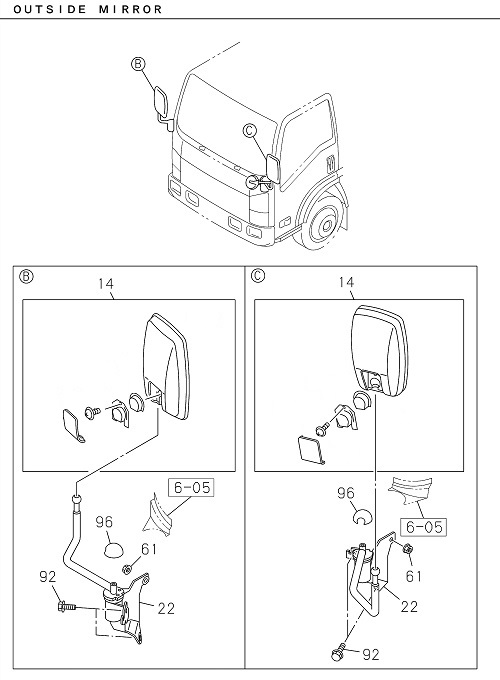

7-20 | MIRROR AND MIRROR STAY
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 014 | I6-45910 220-0 | MIRROR ASM OUTSIDE | 2 | 1907- | NPS81 | (IADG) | ||
| 092 | I0-28650 825-0 | BOLT STAY BRKT,MIRROR | 4 | 1907- | NPS81 | M8X25 FLANGE | ||
| 002 | I8-98033 674-0 | SCREW MIRROR TO BODY | 2 | 1907- | NPS81 | M6X26 | ||
| 014 | I7-45910 220-A | MIRROR ASM OUTSIDE | 2 | 1907- | NPS81 | |||
| 096 | I8-98027 552-2 | CAP MIRROR STAY | 2 | 1907- | NPS81 | |||
| 022 | I8-98038 224-A | STAY OUTSIDE MIRROR | 1 | 1907- | NPS81 | |||
| 022 | I8-98070 509-A | STAY OUTSIDE MIRROR | 1 | 1907- | NPS81 | |||
| 001 | I8-98097 534-1 | MIRROR ROOM | 1 | 1907- | NPS81 | |||
| 061 | I0-91180 108-0 | NUT STAY,OUTSIDE MIRROR | 2 | 1907- | NPS81 | M8 FLANGE |
