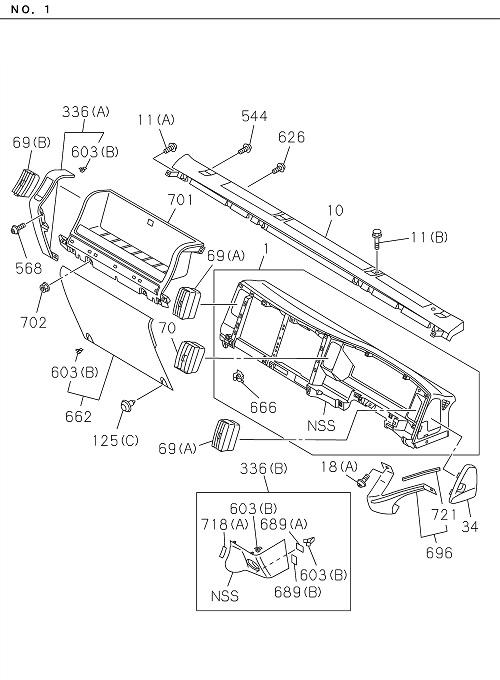

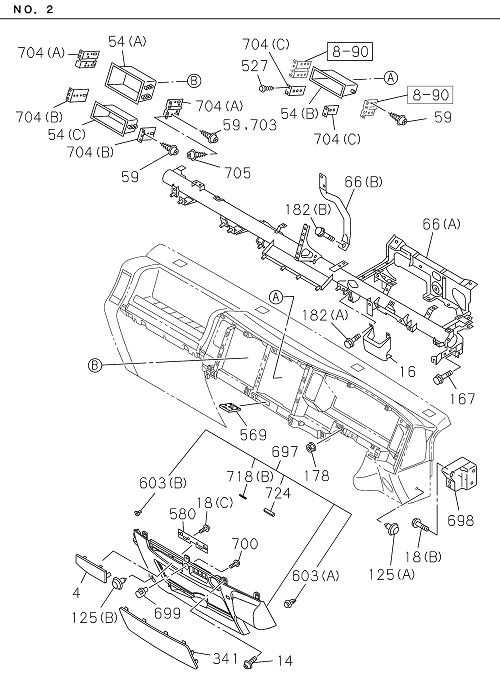

7-40 | INSTRUMENT PANEL AND BOX
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 701 | I8-97422 091-1 | TRAY INST | 1 | 1907- | ALL | |||
| 070 | I8-98028 563-2 | GRILLE CENTER,AIR OUTLET | 1 | 1907- | ALL | |||
| 054 | I8-97926 412-0 | POCKET CENTER CLUSTER | 1 | 1907- | ALL | (A) H=69.8 | ||
| 016 | I8-98053 711-0 | BRACKET INST PNL | 1 | 1907- | ALL | |||
| 662 | I8-97405 258-2 | COVER LWR,INST PANEL | 1 | 1907- | ALL | |||
| 182 | I0-38050 612-0 | BOLT BRKT,INST PANEL | 3 | 1907- | ALL | (A) T25 M6X12 HEXALOBULAR SOCKET | ||
| 705 | I0-72180 520-0 | SCREW BRACKET CENTER POCKET | 8 | 1907- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 580 | I8-98091 546-0 | BRACKET COVER | 1 | 1907- | ALL | |||
| 697 | I8-97423 656-2 | PANEL INST CENTER | 1 | 1907- | ALL | |||
| 004 | I8-97407 898-1 | COVER INST PNL | 1 | 1907- | ALL | |||
| 718 | I8-98159 538-0 | SEAL COVER | 1 | 1907- | ALL | (A) 60X15 | ||
| 718 | I8-98176 199-0 | SEAL COVER | 1 | 1907- | ALL | (B) 5X30 | ||
| 689 | I8-98061 777-0 | SEAL INST | 1 | 1907- | ALL | (A) 7X31 | ||
| 034 | I8-97405 260-1 | LID OIL TANK | 1 | 1907- | ALL | |||
| 704 | I8-97585 618-2 | BRACKET CENTER POCKET | 2 | 1907- | ALL | (A) | ||
| 704 | I8-97585 616-2 | BRACKET CENTER POCKET | 2 | 1907- | ALL | (B) | ||
| 125 | I8-97419 968-1 | CLIP INST PANEL | 2 | 1907- | ALL | (C) | ||
| 066 | I8-97585 578-1 | REINFORCEMENT INST PANEL | 1 | 1907- | ALL | (A) | ||
| 721 | I8-98176 240-0 | FINISHER BRKT,KNEE | 1 | 1907- | ALL | L=75 | ||
| 603 | I8-98021 271-0 | CLIP COVER | 3 | 1907- | ALL | (B) | ||
| 182 | I8-97359 709-0 | BOLT BRKT,INST PANEL | 1 | 1907- | ALL | (B) M8X20 W/LK&PL WASHER | ||
| 702 | I0-91180 106-0 | NUT TRAY | 2 | 1907- | ALL | M6 FLANGE | ||
| 569 | I8-97410 276-1 | HOLDER CARD | 1 | 1907- | ALL | |||
| 054 | I8-97926 414-0 | POCKET CENTER CLUSTER | 1 | 1907- | ALL | (B) H=58.4 | ||
| 125 | I8-97408 063-0 | CLIP INST PANEL | 2 | 1907- | ALL | (B) | ||
| 626 | I8-94279 804-0 | RETAINER | 2 | 1907- | ALL | OD=15 BLACK | ||
| 010 | I8-97419 683-5 | PANEL ASM GARNISH | 1 | 1907- | ALL | |||
| 696 | I8-98199 366-0 | BRACKET KNEE | 1 | 1907- | ALL | |||
| 718 | I8-98200 041-0 | SEAL COVER | 1 | 1907- | ALL | (B) 4X35 | ||
| 014 | I0-72180 516-0 | SCREW INST PNL | 4 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 699 | I8-97408 927-0 | HOOK INST PANEL | 1 | 1907- | ALL | |||
| 724 | I8-98200 042-0 | INSULATOR INST PANEL | 1 | 1907- | ALL | |||
| 689 | I8-98061 778-1 | SEAL INST | 1 | 1907- | ALL | (B) 18X170 | ||
| 336 | I8-97418 759-2 | COVER INST PANEL SIDE | 1 | 1907- | ALL | (B) | ||
| 568 | I0-72180 516-0 | BOLT COVER | 1 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 054 | I8-97926 874-0 | POCKET CENTER CLUSTER | 1 | 1907- | ALL | (C) H=108.4 | ||
| 666 | I8-97926 385-0 | INSERT INST PANEL | 15 | 1907- | ALL | |||
| 603 | I8-98004 025-0 | CLIP COVER | 1 | 1907- | ALL | (A) | ||

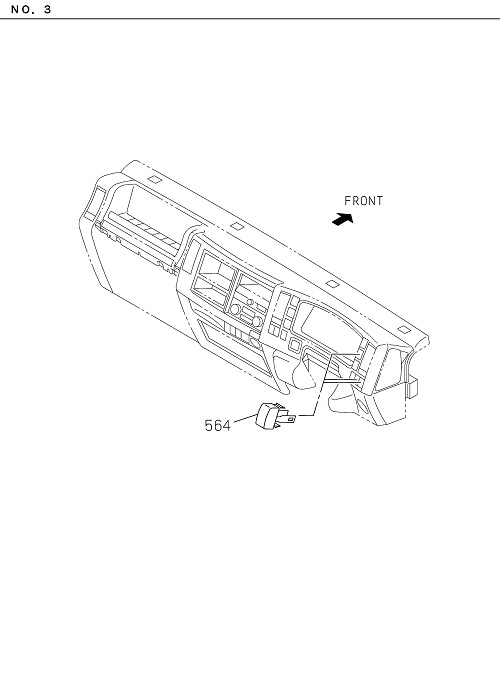

| 564 | I8-98025 954-1 | COVER SW | 3 | 1907- | ALL | |||
| 336 | I8-97405 259-5 | COVER INST PANEL SIDE | 1 | 1907- | ALL | (A) | ||
| 069 | I8-98028 561-2 | GRILLE SIDE,AIR OUTLET | 2 | 1907- | ALL | (A) | ||
| 059 | I8-98058 632-0 | SCREW CLUSTER POCKET | 4 | 1907- | ALL | T25 L=10 HEXALOBULAR | ||
| 018 | I8-98058 632-0 | BOLT BRKT | 3 | 1907- | ALL | (C) T25 L=10 HEXALOBULAR | ||
| 011 | I8-98018 440-0 | BOLT INST PNL | 4 | 1907- | ALL | (B) M6X25 W/LK&PL WASHER | ||
| 069 | I8-98028 562-2 | GRILLE SIDE,AIR OUTLET | 1 | 1907- | ALL | (B) | ||
| 341 | I8-97423 658-0 | LID FUSE BOX | 1 | 1907- | ALL | |||
| 703 | I8-98058 632-0 | SCREW CENTER POCKET | 4 | 1907- | ALL | T25 L=10 HEXALOBULAR | ||
| 125 | I8-97408 817-0 | CLIP INST PANEL | 2 | 1907- | ALL | (A) | ||
| 066 | I8-98199 358-0 | REINFORCEMENT INST PANEL | 1 | 1907- | ALL | (B) | ||
| 018 | I0-38050 612-0 | BOLT BRKT | 2 | 1907- | ALL | (A) T25 M6X12 HEXALOBULAR SOCKET | ||
| 001 | I8-97926 375-1 | PANEL INST | 1 | 1907- | ALL | |||
| 544 | I0-72180 516-0 | SCREW TRAY | 3 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 704 | I8-98073 822-0 | BRACKET CENTER POCKET | 2 | 1907- | ALL | (C) | ||
| 178 | I0-91180 106-0 | NUT INST PANEL | 3 | 1907- | ALL | M6 FLANGE | ||
| 698 | I8-98089 256-1 | BRACKET INST BAR SIDE | 1 | 1907- | ALL | |||
| 167 | I8-97264 766-0 | BOLT REINF TO INST | 4 | 1907- | ALL | M8X23 FLANGE | ||
| 700 | I0-72180 516-0 | BOLT HOOK | 1 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 011 | I0-72180 516-0 | BOLT INST PNL | 8 | 1907- | ALL | (A) M5X16 TAPPING HEXALOBULAR | ||
| 018 | I0-28050 816-0 | BOLT BRKT | 4 | 1907- | ALL | (B) M8X16 FLANGE | ||
| 718 | I8-98200 040-0 | SEAL COVER | 1 | 1907- | ALL | (B) 8X80 | ||
| 527 | I8-97151 251-0 | CLIP INST CLUSTER | 1 | 1907- | ALL | |||
| 698 | I8-98089 257-1 | BRACKET INST BAR SIDE | 1 | 1907- | ALL |
