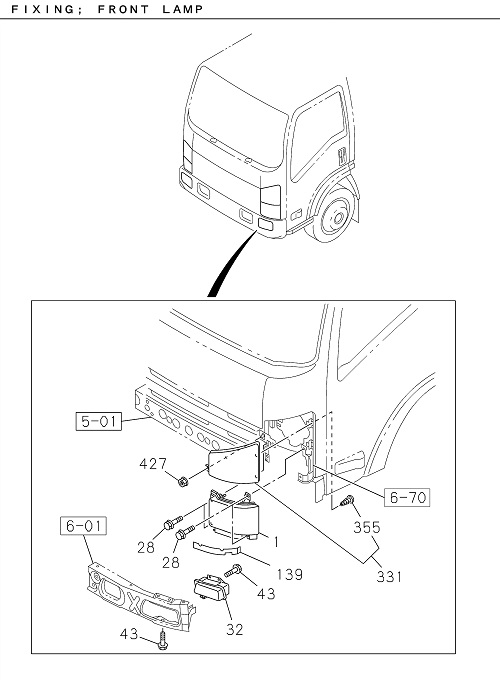

8-01 | LAMP FRONT AND FRONT SIDE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 036 | I1-82118 015-0 | CORD FOG LAMP | 1 | 1907- | ALL | |||
| 355 | I8-98051 428-0 | SCREW TURN SIGNAL | 4 | 1907- | ALL | |||
| 448 | I8-97378 874-0 | CAP ASM LAMP | 2 | 1907- | ALL | |||
| 004 | I8-98226 183-0 | HEADLAMP UNIT | 1 | 1907- | ALL | |||
| 004 | I8-98226 182-0 | HEADLAMP UNIT | 1 | 1907- | ALL | |||

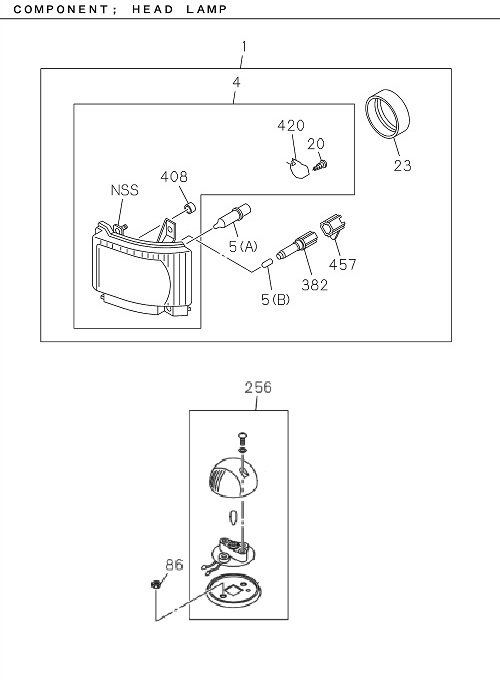

| 001 | I8-98241 325-A | LAMP ASM HEAD | 1 | 1907- | ALL | |||
| 001 | I8-98241 326-A | LAMP ASM HEAD | 1 | 1907- | ALL | |||
| 399 | I8-98051 387-0 | SOCKET TURN SIGNAL | 2 | 1907- | ALL | |||
| 005 | I1-82194 063-0 | BULB HEADLAMP | 2 | 1907- | ALL | (A) 24V 75/70W | ||

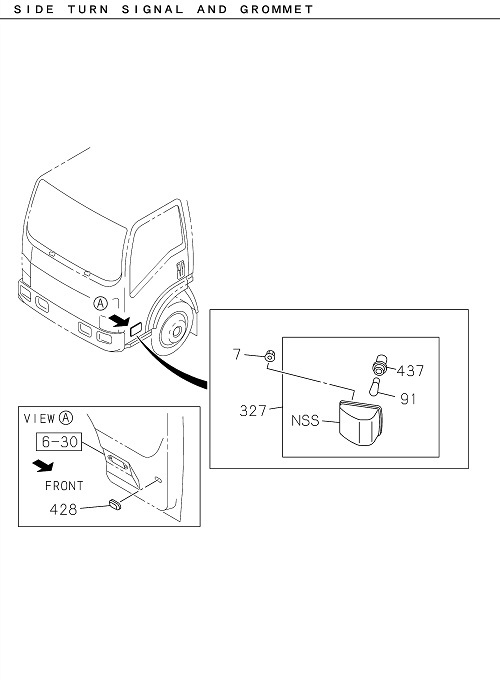

| 327 | I8-97410 180-A | LAMP ASM SIDE TURN SIGNAL | 1 | 1907- | ALL | |||
| 256 | I7-41411 213-A | LAMP MARKER | 1 | 2003- | NPS81 | |||
| 431 | I8-97378 874-0 | CAP TURN SIGNAL,LAMP | 2 | 1907- | ALL | |||
| 044 | I8-98217 430-0 | NUT FOG LAMP | 2 | 1907- | ALL | M6 | ||
| 091 | I8-98051 495-0 | BULB SIDE TURN SIGNAL | 2 | 1907- | ALL | 24V 21W AMBER | ||
| 086 | I0-91180 106-0 | NUT MARKER LAMP | 4 | 2003- | NPS81 | |||
| 457 | I8-98241 354-0 | GRIP HEADLAMP | 2 | 1907- | ALL | |||
| 139 | I8-98034 056-A | COVER HEADLAMP | 2 | 1907- | ALL | |||
| 036 | I1-82118 016-0 | CORD FOG LAMP | 1 | 1907- | ALL | |||
| 327 | I8-97410 181-A | LAMP ASM SIDE TURN SIGNAL | 1 | 1907- | ALL | |||
| 032 | I8-98232 058-1 | LAMP ASM FOG | 1 | 1907- | ALL | |||
| 049 | I8-98051 436-0 | BRACKET LAMP | 1 | 1907- | ALL | |||

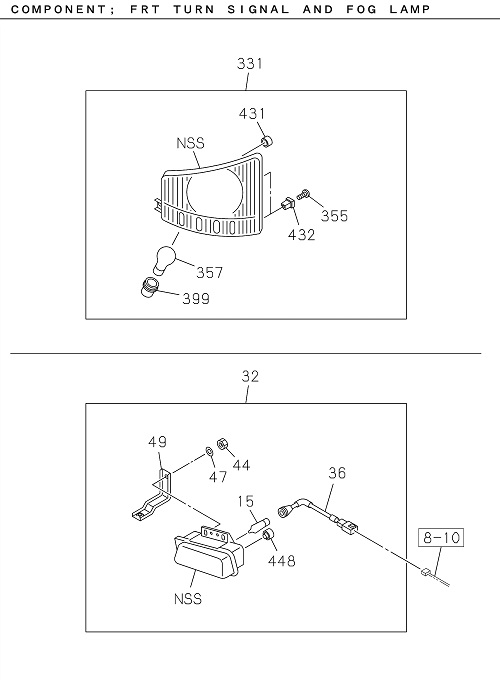

| 331 | I8-98155 458-A | LAMP TURN SIGNAL | 1 | 1907- | ALL | |||
| 047 | I8-98217 429-0 | WASHER PL,FOG LAMP | 2 | 1907- | ALL | |||
| 007 | I0-91180 106-0 | NUT FRT COMB LAMP | 2 | 1907- | ALL | M6 FLANGE | ||
| 420 | I8-98218 601-0 | SPRING BULB,HEADLAMP | 2 | 1907- | ALL | |||
| 028 | I8-98164 723-0 | BOLT HEADLAMP | 8 | 1907- | ALL | M6X23.5 W/LK&PL WASHER | ||
| 005 | I6-82194 063-1 | BULB HEADLAMP | 2 | 1907- | ALL | (IADG) (A) 24V 75/70W | ||
| 256 | I7-41410 213-A | LAMP MARKER | 1 | 2003- | NPS81 | |||
| 043 | I0-50640 620-0 | BOLT FOG LAMP | 6 | 1907- | ALL | M6X20 W/LK&PL WASHER | ||
| 032 | I8-98232 059-1 | LAMP ASM FOG | 1 | 1907- | ALL | |||
| 023 | I8-97232 491-0 | COVER BULB,HEADLAMP | 2 | 1907- | ALL | |||
| 015 | I1-82194 106-0 | BULB FOG LAMP | 2 | 1907- | ALL | 24V 70W | ||
| 357 | I8-97323 806-A | BULB TURN SIGNAL | 2 | 1907- | ALL | 24V 21W AMBER | ||
| 005 | I1-82194 042-0 | BULB HEADLAMP | 2 | 1907- | ALL | (B) 24V 5W | ||
| 331 | I8-98155 459-A | LAMP TURN SIGNAL | 1 | 1907- | ALL | |||
| 437 | I8-98051 390-0 | SOCKET SIDE,TURN | 2 | 1907- | ALL | |||
| 020 | I8-97378 871-0 | SCREW HEADLAMP | 6 | 1907- | ALL | |||
| 382 | I8-98225 685-0 | PLUG SOCKET,HEADLAMP | 2 | 1907- | ALL | |||
| 408 | I8-97378 874-0 | CAP BREATHER,HEADLAMP | 2 | 1907- | ALL | |||
| 049 | I8-98051 435-0 | BRACKET LAMP | 1 | 1907- | ALL | |||
| 428 | I8-94430 184-1 | GROMMET SIDE COMB LAMP | 2 | 1907- | ALL | |||
| 432 | I8-98051 431-0 | FASTENER TURN SIGNAL,LAMP | 4 | 1907- | ALL | |||
| 427 | I0-91180 106-0 | NUT TURN SIGNAL LAMP | 2 | 1907- | ALL | M6 FLANGE |
