8-10 | WIRING HARNESS AND FUSE
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 085 | I8-98047 149-A | HARNESS ROOM LAMP | 1 | 2003-2107 | NPS81 | MARKER LAMP | ||

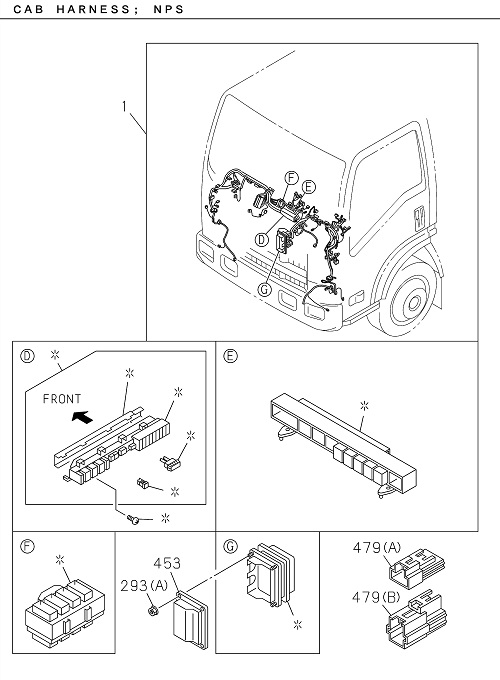

| 001 | I8-97696 352-A | HARNESS CAB | 1 | 1907- | NPS81 | |||
| 085 | I8-98047 149-2 | HARNESS ROOM LAMP | 1 | 1907-2002 | NPS81 | |||
| 387 | I8-98081 367-0 | COVER RELAY BOX | 1 | 1907- | ALL | |||

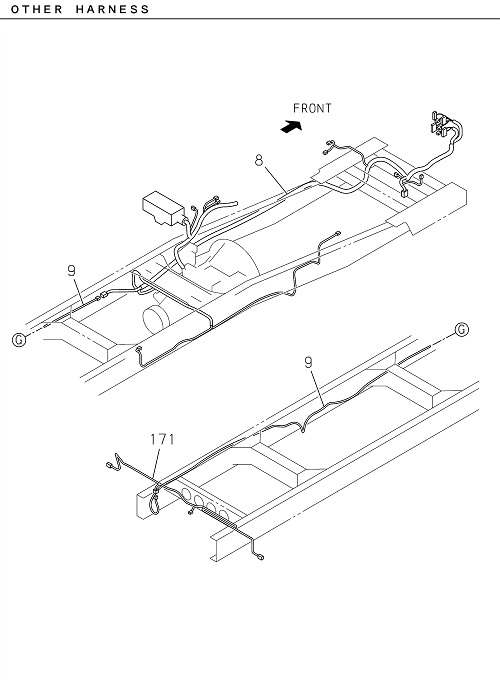

| 009 | I8-98173 517-A | HARNESS FRAME,RR | 1 | 1907- | NQR81 | |||

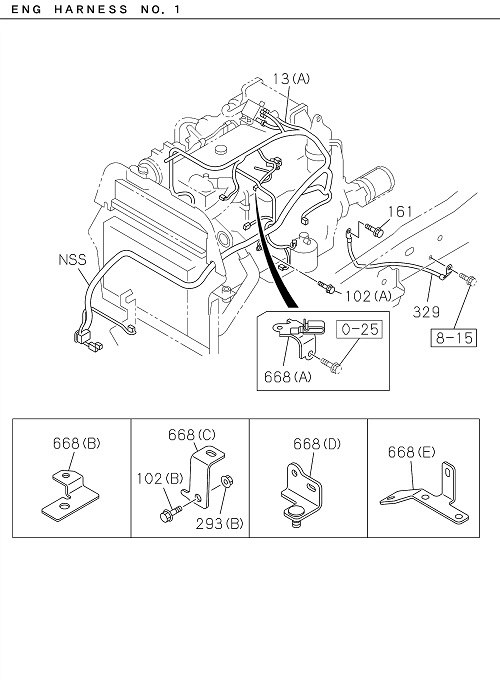

| 013 | I8-98222 263-7 | HARNESS ENG | 1 | 1907- | NPS81 | (A) | ||
| 008 | I8-97696 359-A | HARNESS FRAME,FRT | 1 | 1907- | NQR81 | |||
| 102 | I0-28050 616-0 | BOLT BRKT,HARNESS CONNECTOR | 1 | 1907- | NPS81 | (B) M6X16 FLANGE | ||
| 161 | I0-28050 816-0 | BOLT GROUND,HARNESS | 1 | 1907- | ALL | M8X16 FLANGE | ||
| 479 | I8-98108 678-0 | CAP CONNECTOR | 1 | 1907- | ALL | (A) | ||
| 668 | I8-98270 503-1 | BRACKET HARNESS | 1 | 1907- | NPS81 | (E) | ||
| 085 | I8-98047 149-B | HARNESS ROOM LAMP | 1 | 2108- | NPS81 | |||
| 101 | I8-98241 802-0 | BRACKET HARNESS CONNECTOR | 1 | 1907- | ALL | (B) | ||
| 293 | I8-94424 179-0 | NUT | 1 | 1907- | NQR81 | (B) M6 W/LK WASHER | ||

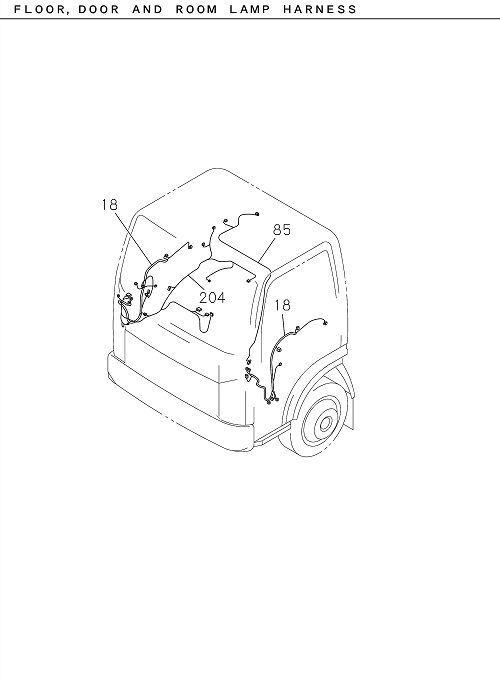

| 204 | I8-97695 488-A | HARNESS CABLE,FLOOR | 1 | 1907- | ALL | |||
| 668 | I8-98248 114-1 | BRACKET HARNESS | 1 | 1907- | NQR81 | (C) | ||

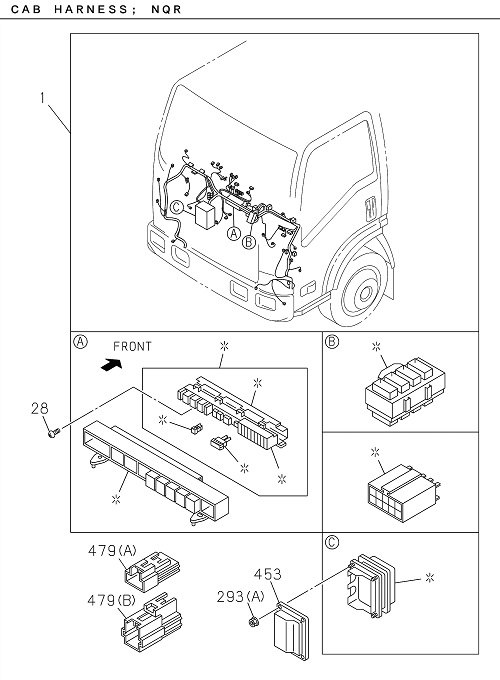

| 001 | I8-97696 351-A | HARNESS CAB | 1 | 1907- | NQR81 | |||
| 409 | I8-98183 771-0 | CAP ACCESSORY SOCKET | 1 | 1907- | ALL | |||
| 668 | I8-98061 780-0 | BRACKET HARNESS | 1 | 1907- | NPS81 | (A) | ||
| 101 | I8-98281 103-0 | BRACKET HARNESS CONNECTOR | 1 | 1907- | ALL | (A) | ||
| 668 | I8-98271 417-1 | BRACKET HARNESS | 1 | 1907- | NQR81 | (D) | ||

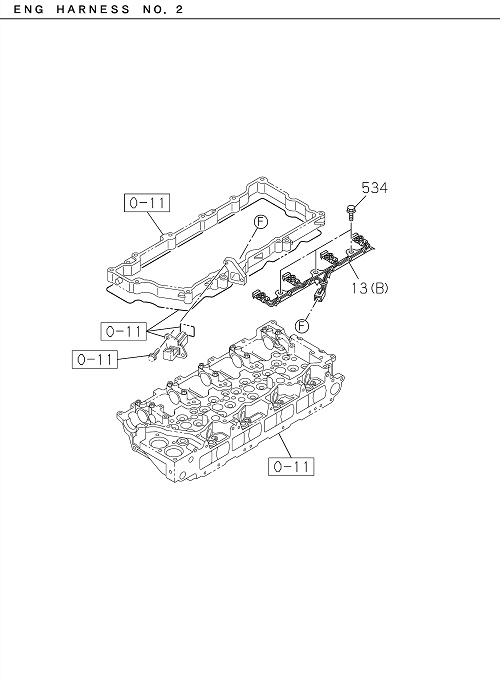

| 013 | I8-98171 638-0 | HARNESS ENG | 1 | 1907- | NQR81 | (B) | ||
| 668 | I8-98205 089-0 | BRACKET HARNESS | 1 | 1907- | NPS81 | (B) | ||
| 534 | I8-97365 449-0 | BOLT | 3 | 1907- | NPS81 | M10X55 FLANGE | ||
| 018 | I8-97695 491-A | HARNESS DOOR | 1 | 1907- | ALL | |||
| 668 | I8-98205 089-0 | BRACKET HARNESS | 1 | 1907- | NQR81 | (B) | ||

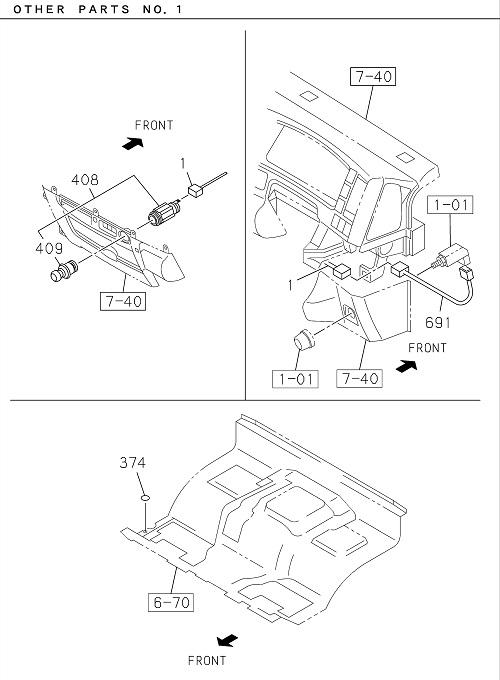

| 408 | I8-98169 757-0 | SOCKET ASM ACCESSORY | 1 | 1907- | ALL | |||
| 534 | I8-97365 449-0 | BOLT | 3 | 1907- | NQR81 | M10X55 FLANGE | ||
| 293 | I0-91180 106-0 | NUT | 4 | 1907- | ALL | (A) M6 FLANGE | ||
| 290 | I0-91180 108-0 | NUT BRKT | 1 | 1907- | ALL | (A) M8 FLANGE | ||
| 102 | I0-28050 812-A | BOLT BRKT,HARNESS CONNECTOR | 3 | 1907- | NPS81 | (A) M8X12 FLANGE | ||
| 013 | I8-98222 264-7 | HARNESS ENG | 1 | 1907- | NQR81 | (A) | ||
| 018 | I8-97695 490-A | HARNESS DOOR | 1 | 1907- | ALL | |||
| 329 | I8-98102 465-0 | CABLE ENG TO FRAME | 1 | 1907- | ALL | |||
| 668 | I8-98248 114-1 | BRACKET HARNESS | 1 | 1907- | NPS81 | (C) | ||
| 374 | I8-98031 126-0 | PLUG HARNESS CONNECTOR | 1 | 1907- | ALL | OD=32 BLACK | ||
| 525 | I0-91180 108-0 | NUT CLIP | 2 | 1907- | ALL | M8 FLANGE | ||
| 102 | I0-28050 616-0 | BOLT BRKT,HARNESS CONNECTOR | 1 | 1907- | NQR81 | (B) M6X16 FLANGE | ||
| 013 | I8-98171 638-0 | HARNESS ENG | 1 | 1907- | NPS81 | (B) | ||
| 668 | I8-98270 503-1 | BRACKET HARNESS | 1 | 1907- | NQR81 | (E) | ||
| 293 | I8-94424 179-0 | NUT | 1 | 1907- | NPS81 | (B) M6 W/LK WASHER | ||
| 453 | I8-98034 039-1 | PROTECTOR HARNESS | 1 | 1907- | ALL | |||
| 102 | I0-28050 812-A | BOLT BRKT,HARNESS CONNECTOR | 3 | 1907- | NQR81 | (A) M8X12 FLANGE | ||

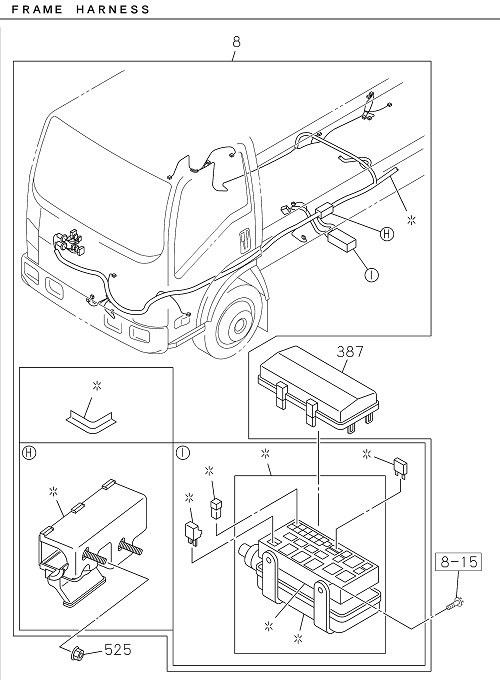

| 008 | I8-97696 347-A | HARNESS FRAME,FRT | 1 | 1907- | NPS81 | |||
| 009 | I8-98173 515-0 | HARNESS FRAME,RR | 1 | 1907- | NPS81 | |||
| 479 | I8-98108 679-0 | CAP CONNECTOR | 1 | 1907- | ALL | (B) | ||
| 171 | I8-98156 028-A | HARNESS CABLE,TAIL LAMP | 1 | 1907- | ALL | |||
| 668 | I8-98271 417-1 | BRACKET HARNESS | 1 | 1907- | NPS81 | (D) | ||
| 668 | I8-98061 780-0 | BRACKET HARNESS | 1 | 1907- | NQR81 | (A) | ||
| 290 | I8-98029 921-0 | NUT BRKT | 2 | 1907- | ALL | (B) M6 W/DISHED WASHER | ||
| 691 | I8-97948 238-0 | HARNESS IDLE CONT | 1 | 1907- | ALL | |||
| 028 | I0-72180 516-0 | SCREW FUSE BOX | 1 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR |
