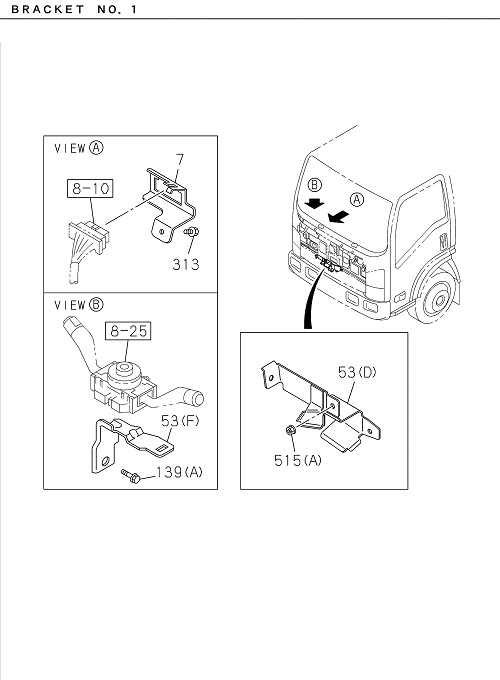

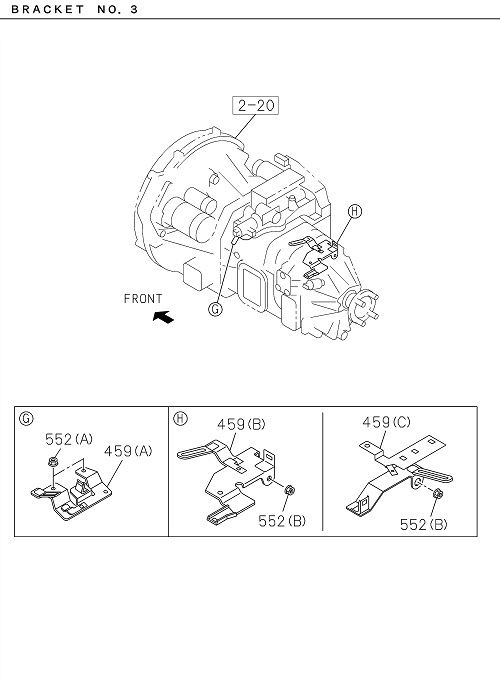

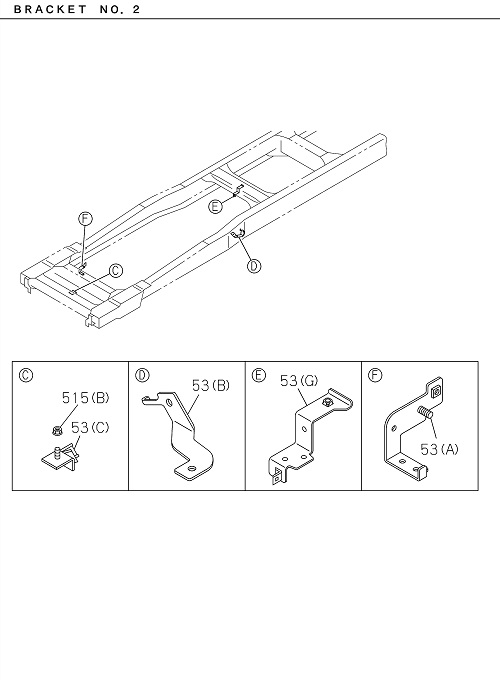

8-15 | FIXING PARTS WIRING HARNESS
ELF
NPS81 NQR81

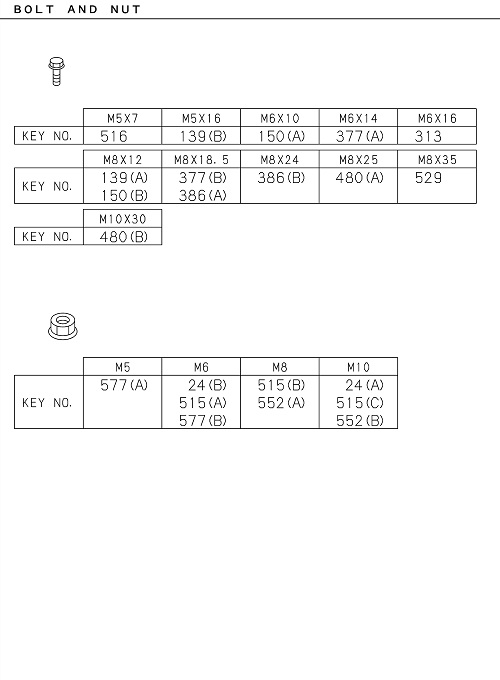

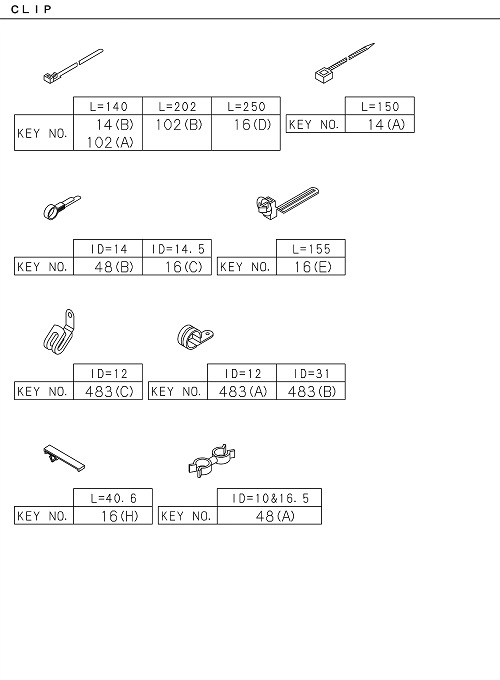

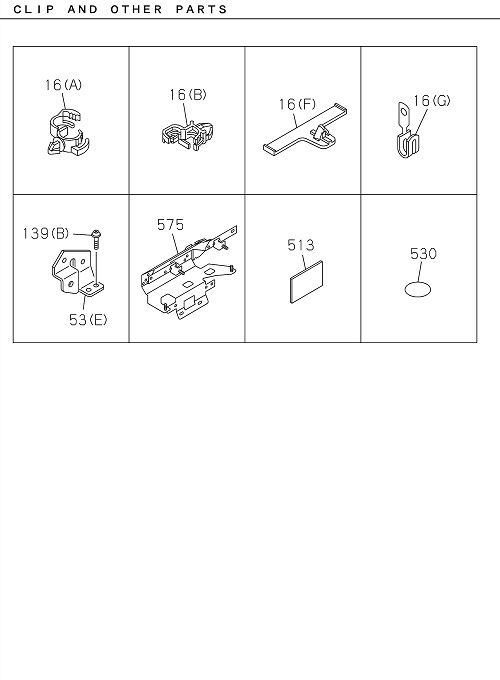

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 552 | I0-91180 108-0 | NUT BRKT,HARNESS | 2 | 1907- | ALL | (A) M8 FLANGE | ||
| 053 | I8-98330 128-0 | BRACKET HARNESS | 1 | 1907- | ALL | (G) | ||
| 016 | I1-09701 014-0 | CLIP HARNESS | 1 | 1907- | NPS81 | (C) ID=14.5 L=40 | ||
| 377 | I8-98141 255-0 | BOLT CAB EARTH | 2 | 1907- | ALL | (B) M8X18.5 W/PL WASHER | ||
| 016 | I8-97173 307-0 | CLIP HARNESS | 14 | 1907- | ALL | (E) L=155 | ||
| 516 | I8-98063 767-0 | BOLT HARNESS | 1 | 1907- | ALL | M5X7 HEXALOBULAR SOCKET | ||
| 016 | I8-98052 679-0 | CLIP HARNESS | 2 | 1907- | ALL | (F) | ||
| 577 | I8-97068 819-0 | NUT FUSE BOX | 4 | 1907- | ALL | (A) M5 FLANGE | ||
| 459 | I8-97379 633-0 | BRACKET SUPPORT,HARNESS | 1 | 1907- | NPS81 | (C) | ||
| 515 | I0-91180 106-0 | NUT BRKT | 1 | 1907- | ALL | (A) M6 FLANGE | ||
| 459 | I8-98196 974-0 | BRACKET SUPPORT,HARNESS | 1 | 1907- | NQR81 | (B) | ||
| 024 | I0-91180 110-0 | NUT HARNESS | 1 | 1907- | ALL | (A) M10 FLANGE | ||
| 014 | I5-09707 031-1 | CLIP BAND,HARNESS | 2 | 1907- | NPS81 | (B) L=140 | ||
| 014 | I8-97355 273-0 | CLIP BAND,HARNESS | 1 | 1907- | NQR81 | (A) L=150 | ||
| 377 | I8-98164 836-0 | BOLT CAB EARTH | 1 | 1907- | ALL | (A) M6X14 W/PL WASHER | ||
| 102 | I5-09707 031-1 | CLIP BAND | 2 | 1907- | NPS81 | (A) L=140 | ||
| 102 | I5-09707 031-1 | CLIP BAND | 2 | 1907- | NQR81 | (A) L=140 | ||
| 016 | I8-97229 357-0 | CLIP HARNESS | 2 | 1907- | ALL | (H) L=40.6 | ||
| 483 | I8-97367 984-1 | CLIP ENG HARNESS | 3 | 1907- | NPS81 | (C) ID=12 VINYL CHLORIDE | ||
| 053 | I8-98052 458-0 | BRACKET HARNESS | 1 | 1907- | ALL | (F) | ||
| 024 | I8-98297 112-0 | NUT HARNESS | 1 | 1907- | ALL | (B) M6 FLANGE STAINLESS | ||
| 386 | I8-98141 255-0 | BOLT GRAND HARNESS | 1 | 1907- | ALL | (A) M8X18.5 W/PL WASHER | ||
| 459 | I8-98020 227-3 | BRACKET SUPPORT,HARNESS | 1 | 1907- | ALL | (A) | ||
| 053 | I8-98077 503-1 | BRACKET HARNESS | 1 | 1907- | ALL | (A) | ||
| 575 | I8-98173 144-2 | BRACKET FUSE BOX | 1 | 1907- | ALL | |||
| 053 | I8-98258 760-0 | BRACKET HARNESS | 1 | 1907- | ALL | (B) | ||
| 483 | I1-09700 994-0 | CLIP ENG HARNESS | 1 | 1907- | NPS81 | (B) ID=31 H=30 L=35 | ||
| 386 | I8-98141 256-1 | BOLT GRAND HARNESS | 1 | 1907- | ALL | (B) M8X24 W/PL WASHER | ||
| 048 | I5-09700 319-0 | CLIP FRAME HARNESS | 7 | 1907- | NQR81 | (B) ID=14 L=47 | ||
| 480 | I0-28650 825-0 | BOLT BRKT | 1 | 1907- | ALL | (A) M8X25 FLANGE | ||
| 016 | I1-09701 014-0 | CLIP HARNESS | 1 | 1907- | NQR81 | (C) ID=14.5 L=40 | ||
| 552 | I0-91180 110-0 | NUT BRKT,HARNESS | 1 | 1907- | ALL | (B) M10 FLANGE | ||
| 048 | I5-09700 319-0 | CLIP FRAME HARNESS | 5 | 1907- | NPS81 | (B) ID=14 L=47 | ||
| 513 | I8-97304 373-0 | TAPE SOFT,HARNESS | 1 | 1907- | ALL | 130X80 | ||
| 515 | I0-91180 110-0 | NUT BRKT | 1 | 1907- | ALL | (C) M10 FLANGE | ||
| 483 | I8-97367 984-1 | CLIP ENG HARNESS | 3 | 1907- | NQR81 | (C) ID=12 VINYL CHLORIDE | ||
| 483 | I1-09700 097-1 | CLIP ENG HARNESS | 1 | 1907- | NPS81 | (A) ID=12 L=70 | ||
| 102 | I8-98143 872-0 | CLIP BAND | 1 | 1907- | NPS81 | (B) L=202 | ||
| 053 | I8-98084 590-0 | BRACKET HARNESS | 1 | 1907- | ALL | (E) | ||
| 053 | I8-98018 900-2 | BRACKET HARNESS | 1 | 1907- | ALL | (C) | ||
| 150 | I0-28050 610-0 | BOLT CLIP | 3 | 1907- | NPS81 | (A) M6X10 FLANGE | ||
| 016 | I8-94472 578-0 | CLIP HARNESS | 1 | 1907- | ALL | (B) ID=10 & 16 | ||
| 007 | I8-98043 070-1 | BRACKET CONNECTOR | 1 | 1907- | ALL | |||
| 016 | I8-97101 436-0 | CLIP HARNESS | 1 | 1907- | ALL | (G) | ||
| 016 | I5-09707 030-1 | CLIP HARNESS | 1 | 1907- | ALL | (D) L=250 | ||
| 102 | I8-98143 872-0 | CLIP BAND | 1 | 1907- | NQR81 | (B) L=202 | ||
| 313 | I0-28450 616-0 | BOLT BRKT | 1 | 1907- | ALL | M6X16 FLANGE | ||
| 150 | I0-28050 812-A | BOLT CLIP | 1 | 1907- | NPS81 | (B) M8X12 FLANGE | ||
| 480 | I0-28651 030-0 | BOLT BRKT | 1 | 1907- | ALL | (B) M10X30 FLANGE | ||
| 150 | I0-28050 610-0 | BOLT CLIP | 3 | 1907- | NQR81 | (A) M6X10 FLANGE | ||
| 053 | I8-98051 457-0 | BRACKET HARNESS | 1 | 1907- | ALL | (D) | ||
| 014 | I5-09707 031-1 | CLIP BAND,HARNESS | 2 | 1907- | NQR81 | (B) L=140 | ||
| 530 | I8-98031 126-0 | SEAL HARNESS | 1 | 1907- | ALL | OD=32 BLACK | ||
| 483 | I1-09700 994-0 | CLIP ENG HARNESS | 1 | 1907- | NQR81 | (B) ID=31 H=30 L=35 | ||
| 139 | I0-28050 812-A | BOLT BRKT | 1 | 1907- | ALL | (A) M8X12 FLANGE | ||
| 048 | I8-94424 440-0 | CLIP FRAME HARNESS | 1 | 1907- | ALL | (A) ID=10 & 16.5 | ||
| 577 | I0-91180 106-0 | NUT FUSE BOX | 2 | 1907- | ALL | (B) M6 FLANGE | ||
| 016 | I8-97069 515-0 | CLIP HARNESS | 2 | 1907- | ALL | (A) ID=6 & 10-13 | ||
| 014 | I8-97355 273-0 | CLIP BAND,HARNESS | 1 | 1907- | NPS81 | (A) L=150 | ||
| 150 | I0-28050 812-A | BOLT CLIP | 1 | 1907- | NQR81 | (B) M8X12 FLANGE | ||
| 483 | I1-09700 097-1 | CLIP ENG HARNESS | 1 | 1907- | NQR81 | (A) ID=12 L=70 | ||
| 515 | I8-98040 024-0 | NUT BRKT | 1 | 1907- | ALL | (B) M8 FLANGE | ||
| 139 | I0-72180 516-0 | BOLT BRKT | 1 | 1907- | ALL | (B) SCREW M5X16 TAPPING HEXALOBULAR | ||
| 529 | I1-09030 094-0 | BOLT RELAY BOX | 3 | 1907- | ALL | M8X35 W/LK&PL WASHER |
