8-25 | SWITCH AND RELAY INSTRUMENT PANEL
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

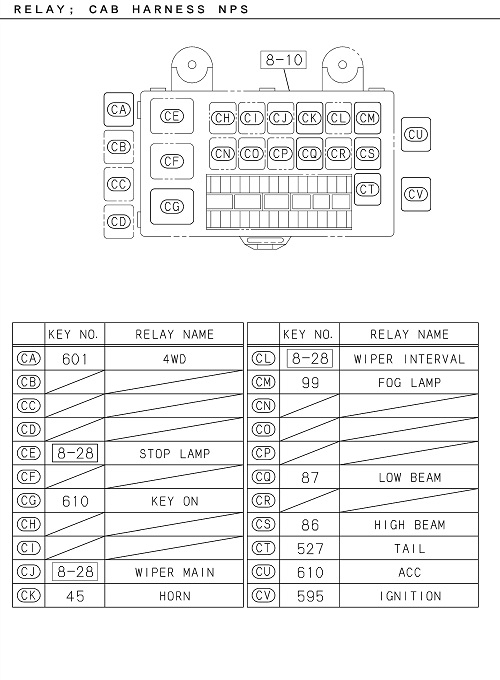

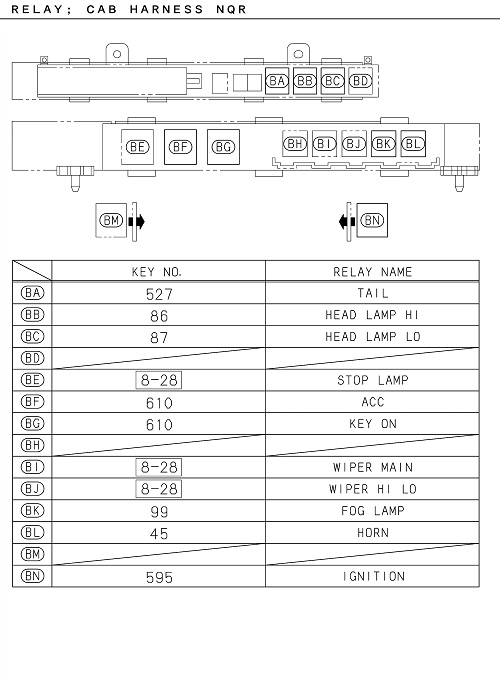

| 086 | I8-97173 035-1 | RELAY HI-BEAM | 1 | 1907- | ALL | 24V 10A | ||

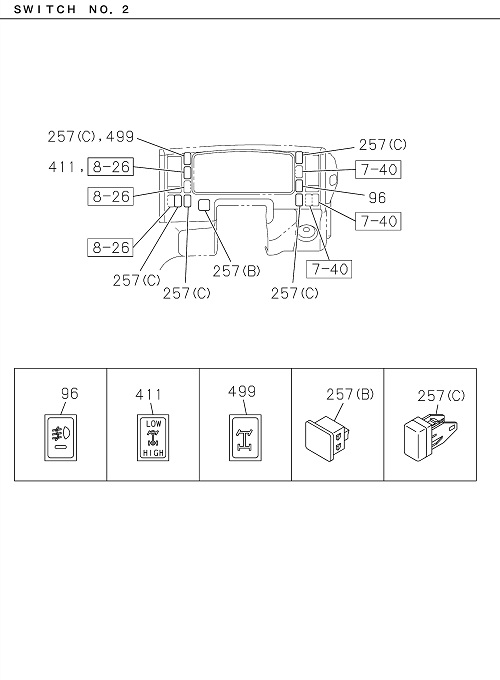

| 096 | I8-97387 031-4 | SWITCH FOG LAMP | 1 | 1907- | ALL | |||
| 610 | I8-97262 933-0 | RELAY KEY ON | 1 | 1907- | ALL | 24V 12.5A | ||
| 499 | I8-97386 914-2 | SWITCH 4X4 | 1 | 1907- | NPS81 | |||
| 087 | I8-97173 035-1 | RELAY LOW-BEAM | 1 | 1907- | ALL | 24V 10A | ||
| 021 | I8-97358 248-0 | SWITCH CLU | 1 | 1907- | NPS81 | (A) | ||
| 257 | I8-98029 914-1 | COVER HOLE,SW | 1 | 1907- | ALL | (B) | ||

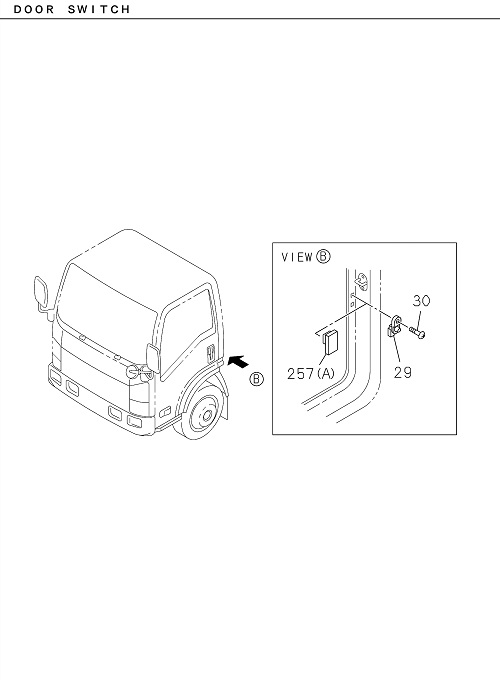

| 029 | I8-98022 211-0 | SWITCH DOOR | 1 | 1907- | ALL | |||
| 099 | I6-97173 035-0 | RELAY FOG LAMP | 1 | 1907- | ALL | (IADG) 24V 10A | ||
| 527 | I6-97173 035-0 | RELAY TAIL | 1 | 1907- | ALL | (IADG) 24V 10A | ||
| 087 | I6-97173 035-0 | RELAY LOW-BEAM | 1 | 1907- | ALL | (IADG) 24V 10A | ||
| 595 | I8-97173 035-1 | RELAY IGNITION | 1 | 1907- | ALL | 24V 10A | ||
| 045 | I8-97173 035-1 | RELAY HORN | 1 | 1907- | ALL | 24V 10A | ||
| 257 | I8-98025 954-1 | COVER HOLE,SW | 5 | 1907- | ALL | (C) | ||
| 099 | I8-97173 035-1 | RELAY FOG LAMP | 1 | 1907- | ALL | 24V 10A | ||
| 045 | I6-97173 035-0 | RELAY HORN | 1 | 1907- | ALL | (IADG) 24V 10A | ||
| 527 | I8-97173 035-1 | RELAY TAIL | 1 | 1907- | ALL | 24V 10A | ||

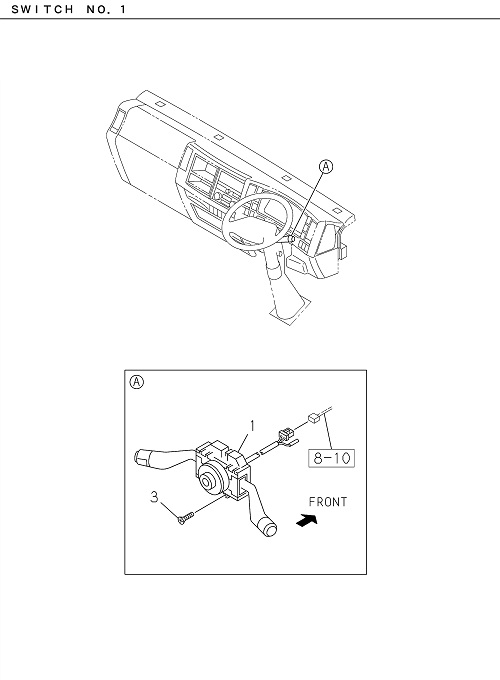

| 001 | I8-98243 728-0 | SWITCH COMB | 1 | 1907- | ALL | |||
| 601 | I8-97173 035-1 | RELAY 4WD | 1 | 1907- | NPS81 | 24V 10A | ||
| 601 | I6-97173 035-0 | RELAY 4WD | 1 | 1907- | NPS81 | (IADG) 24V 10A | ||
| 030 | I8-98047 201-0 | SCREW DOOR SW | 1 | 1907- | ALL | M5X18 | ||

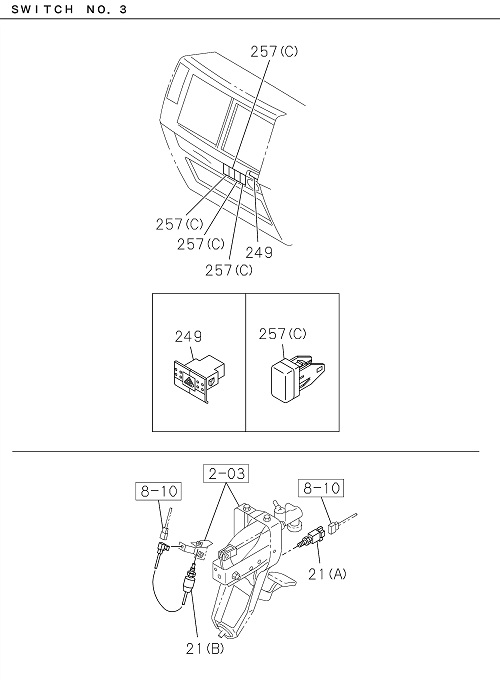

| 249 | I8-97386 922-1 | SWITCH HAZARD | 1 | 1907- | ALL | |||
| 086 | I6-97173 035-0 | RELAY HI-BEAM | 1 | 1907- | ALL | (IADG) 24V 10A | ||
| 257 | I8-98029 917-0 | COVER HOLE,SW | 1 | 1907- | ALL | (A) | ||
| 411 | I8-97613 967-0 | SWITCH TRANSFER | 1 | 1907- | NPS81 | |||
| 021 | I8-97620 841-0 | SWITCH CLU | 1 | 1907- | NPS81 | (B) | ||
| 595 | I6-97173 035-0 | RELAY IGNITION | 1 | 1907- | ALL | (IADG) 24V 10A | ||
| 003 | I8-98061 743-0 | SCREW COMB SW | 2 | 1907- | ALL | M5X20 W/PL WASHER&TORQUES | ||
| 021 | I8-97358 248-0 | SWITCH CLU | 1 | 1907- | NQR81 | (A) |
