8-26 | ELECTRICAL CONTROL AND OTHER PARTS
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

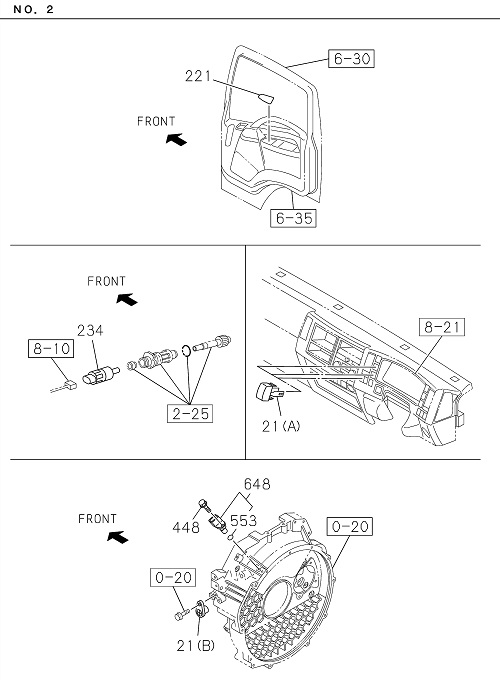

| 221 | I8-98029 916-2 | COVER HOLE,DOOR LOCK SW | 1 | 1907- | ALL | |||

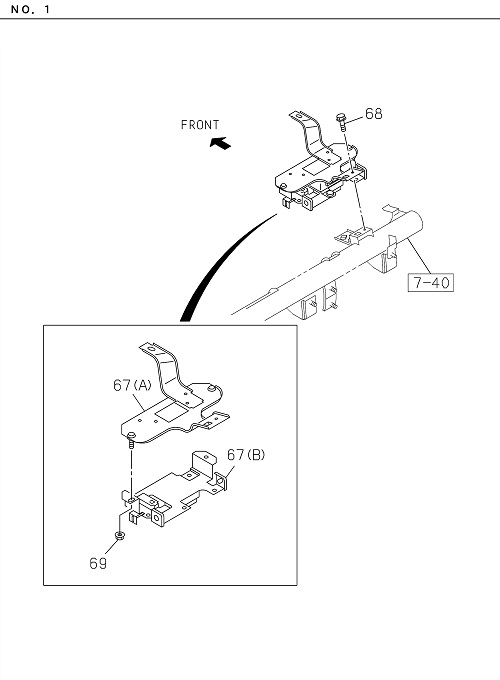

| 067 | I8-98022 170-1 | BRACKET CONT UNIT | 1 | 1907- | ALL | (A) | ||
| 021 | I8-97101 974-0 | COVER HOLE | 1 | 1907- | NQR81 | (B) | ||
| 553 | I8-97369 404-0 | GASKET | 1 | 1907- | NPS81 | ID=14.2 OD=18.8 | ||
| 448 | I0-28050 616-0 | BOLT SENSOR | 1 | 1907- | NQR81 | M6X16 FLANGE | ||
| 648 | I8-97606 943-0 | SENSOR CRANK ANGLE | 1 | 1907- | NQR81 | |||
| 553 | I8-97369 404-0 | GASKET | 1 | 1907- | NQR81 | ID=14.2 OD=18.8 | ||
| 021 | I8-97848 832-0 | COVER HOLE | 1 | 1907- | NPS81 | (B) | ||
| 021 | I8-98025 954-1 | COVER HOLE | 1 | 1907- | NQR81 | (A) | ||
| 067 | I8-98217 377-0 | BRACKET CONT UNIT | 1 | 1907- | ALL | (B) | ||
| 648 | I8-97606 943-0 | SENSOR CRANK ANGLE | 1 | 1907- | NPS81 | |||
| 069 | I0-91180 106-0 | NUT BRKT | 2 | 1907- | ALL | M6 FLANGE | ||
| 021 | I8-98025 954-1 | COVER HOLE | 1 | 1907- | ALL | (A) | ||
| 221 | I8-98029 915-2 | COVER HOLE,DOOR LOCK SW | 1 | 1907- | ALL | |||
| 234 | I8-97328 058-1 | SENSOR VEHICLE SPD | 1 | 1907- | ALL | 25 PULSE ALUMINUM | ||
| 068 | I0-28450 612-0 | BOLT BRKT | 1 | 1907- | ALL | M6X12 FLANGE | ||
| 448 | I0-28050 616-0 | BOLT SENSOR | 1 | 1907- | NPS81 | M6X16 FLANGE |
