8-40 | HEATER SYSTEM
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 066 | I8-98081 030-0 | BOLT DUCT | 2 | 1907- | ALL | (C) M6X20 W/LK&PL WASHER | ||
| 066 | I0-28650 616-0 | BOLT DUCT | 2 | 1907- | ALL | (A) M6X16 FLANGE | ||
| 050 | I8-97925 112-0 | VALVE ASM HTR | 1 | 1907- | ALL | |||

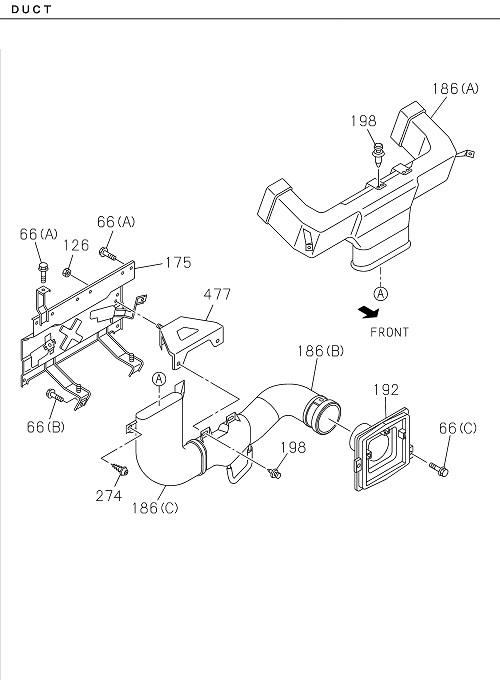

| 186 | I8-98054 363-0 | DUCT VENTILATOR | 1 | 1907- | ALL | (A) | ||
| 476 | I8-98062 675-0 | SCREW VALVE | 1 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 274 | I0-72180 516-0 | SCREW VENT DUCT | 2 | 1907- | ALL | M5X16 TAPPING HEXALOBULAR | ||
| 186 | I8-98054 371-0 | DUCT VENTILATOR | 1 | 1907- | ALL | (C) | ||
| 126 | I0-91180 106-0 | NUT BRKT | 1 | 1907- | ALL | M6 FLANGE | ||
| 175 | I8-98184 165-0 | BRACKET HTR DUCT | 1 | 1907- | ALL | |||
| 225 | I1-76798 029-0 | SEAL WATER | 1 | 1907- | ALL | (A) OD=25 | ||
| 192 | I8-98054 386-4 | DUCT RAM AIR | 1 | 1907- | ALL | |||
| 223 | I8-94441 539-0 | GROMMET SCREW | 1 | 1907- | ALL | D=7.9X7.9 L=20 M5 | ||
| 343 | I8-97856 616-0 | SEAL AIR DUCT | 2 | 1907- | ALL | |||
| 066 | I8-98081 175-0 | BOLT DUCT | 2 | 1907- | ALL | (B) M6X20 W/LK&PL WASHER | ||
| 225 | I1-76798 029-0 | SEAL WATER | 1 | 1907- | ALL | (B) OD=20 T=0.05 | ||
| 186 | I8-98054 379-2 | DUCT VENTILATOR | 1 | 1907- | ALL | (B) | ||
| 477 | I8-98091 304-0 | BRACKET DUCT | 1 | 1907- | ALL | |||
| 198 | I1-09987 144-0 | CLIP DUCT | 5 | 1907- | ALL |
