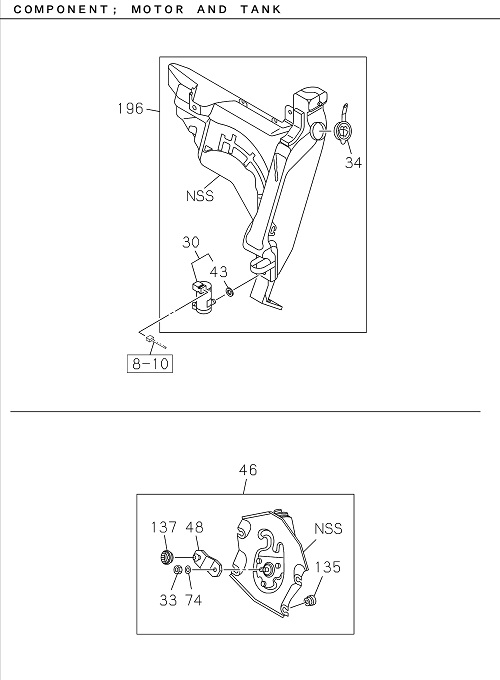

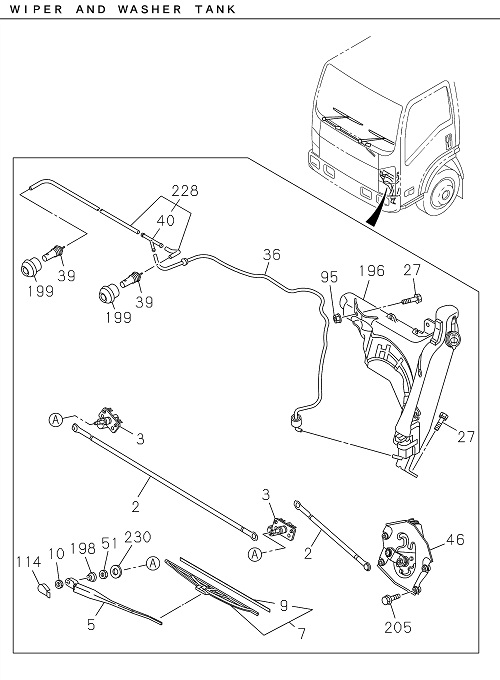

8-80 | WINDSHIELD WIPER AND WASHER
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 051 | I8-98029 167-0 | NUT WIPER MOTOR LINK | 2 | 1907- | ALL | M24 | ||
| 040 | I5-83363 003-0 | JOINT WASHER HOSE | 1 | 1907- | ALL | 3WAY | ||
| 005 | I8-98053 778-0 | ARM WIPER | 1 | 1907- | ALL | |||
| 048 | I8-98052 215-0 | ARM WIPER MOTOR | 1 | 1907- | ALL | |||
| 009 | I8-98053 792-0 | RUBBER FRT WIPER BLADE | 2 | 1907- | ALL | L=500 | ||
| 043 | I8-94352 050-0 | RUBBER GASKET,TANK | 1 | 1907- | ALL | |||
| 039 | I8-98029 139-1 | NOZZLE WINDSHIELD WASHER | 2 | 1907- | ALL | |||
| 034 | I8-97855 140-0 | CAP WASHER TANK | 1 | 1907- | ALL | |||
| 137 | I8-98052 218-0 | SEAL JOINT,WIPER MOTOR | 1 | 1907- | ALL | |||
| 030 | I8-97855 139-0 | MOTOR ASM FRT WASHER TANK | 1 | 1907- | ALL | |||
| 046 | I8-98029 123-3 | MOTOR ASM FRT WINDSHIELD WIPER | 1 | 1907- | ALL | |||
| 002 | I8-98053 765-0 | LINK FRT WIPER | 1 | 1907- | ALL | L=350 W/CAP STAMP P | ||
| 007 | I8-98053 788-0 | BLADE WIPER | 2 | 1907- | ALL | |||
| 010 | I0-91110 508-0 | NUT WIPER ARM TO WIPER PIVOT | 2 | 1907- | ALL | M8 | ||
| 003 | I8-98053 764-0 | PIVOT ASM FRT WIPER | 1 | 1907- | ALL | |||
| 005 | I8-98053 779-0 | ARM WIPER | 1 | 1907- | ALL | |||
| 196 | I8-98029 135-3 | TANK WASHER | 1 | 1907- | ALL | |||
| 074 | I8-97162 101-0 | WASHER ARM TO MOTOR | 1 | 1907- | ALL | ID=8 | ||
| 205 | I8-98018 440-0 | BOLT WIPER MOTOR | 4 | 1907- | ALL | M6X25 W/LK&PL WASHER | ||
| 027 | I8-94310 730-0 | BOLT WASHER TANK | 2 | 1907- | ALL | M8X16 W/LK&PL WASHER | ||
| 228 | I8-98029 168-1 | HOSE ASM WASHER | 1 | 1907- | ALL | |||
| 036 | I8-98029 172-3 | HOSE WASHER | 1 | 1907- | ALL | |||
| 230 | I8-98029 097-0 | COLLAR WIPER LINK | 2 | 1907- | ALL | |||
| 033 | I8-97855 157-0 | NUT MOTOR TO ARM | 1 | 1907- | ALL | M8 | ||
| 095 | I0-91180 108-0 | NUT WASHER TANK | 1 | 1907- | ALL | M8 FLANGE | ||
| 002 | I8-98053 769-0 | LINK FRT WIPER | 1 | 1907- | ALL | L=840 W/CAP | ||
| 199 | I8-98079 030-0 | COVER NOZZLE,WIPER | 2 | 1907- | ALL | |||
| 003 | I8-98053 762-0 | PIVOT ASM FRT WIPER | 1 | 1907- | ALL | |||
| 198 | I8-98029 164-0 | COVER PIVOT,WIPER | 2 | 1907- | ALL | |||
| 114 | I8-94282 851-0 | COVER FRT WIPER ARM | 2 | 1907- | ALL | |||
| 135 | I8-98052 214-0 | RUBBER CUSHION,WIPER MOTOR | 4 | 1907- | ALL |
