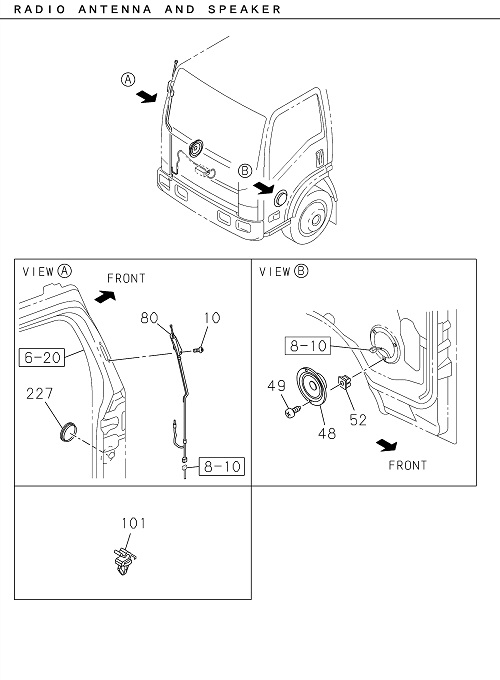

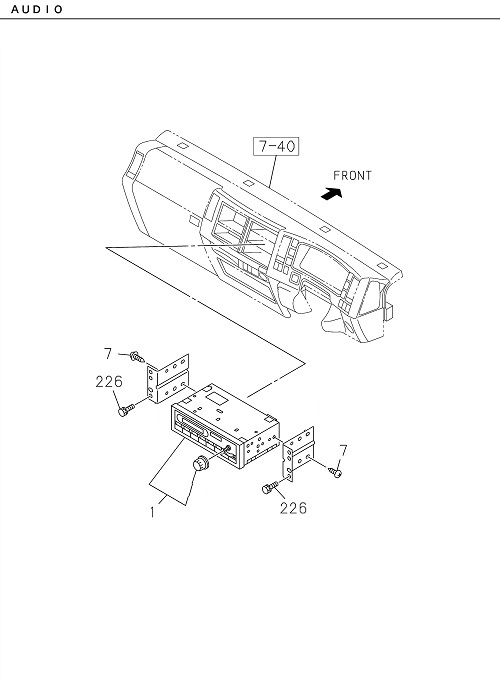

8-90 | RADIO AND TV
ELF
NPS81 NQR81
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 052 | I8-94279 078-A | GROMMET SCREW,SPEAKER | 6 | 1907- | ALL | D=8.6X7.7 L=7.5 | ||
| 268 | I8-97375 820-0 | KNOB VOL | 1 | 1907- | ALL | |||
| 080 | I8-97695 993-A | ANTENNA | 1 | 1907- | NPS81 | |||
| 006 | I8-97585 617-0 | BRACKET RADIO TO PANEL | 2 | 1907- | ALL | |||
| 080 | I8-97387 265-3 | ANTENNA | 1 | 1907- | NQR81 | MINI BUS CHASSIS | ||
| 007 | I8-98063 767-0 | SCREW RADIO | 4 | 1907- | ALL | M5X7 HEXALOBULAR SOCKET | ||
| 101 | I1-73907 618-0 | CLIP FEEDER TO BRKT | 1 | 1907- | ALL | ID=4.8 | ||
| 001 | I8-98032 643-A | RADIO | 1 | 1907- | ALL | |||
| 224 | I8-97695 994-A | CABLE EXT, FEEDER | 1 | 1907- | NPS81 | |||
| 049 | I8-98061 856-0 | SCREW SPEAKER | 6 | 1907- | ALL | M5X14 TAPPING W/TORQUES | ||
| 226 | I0-72180 520-0 | BOLT BRKT | 2 | 1907- | ALL | M5X20 TAPPING HEXALOBULAR | ||
| 048 | I8-97696 027-A | SPEAKER AUDIO | 2 | 1907- | ALL | |||
| 080 | I8-97695 993-A | ANTENNA | 1 | 1907- | NQR81 | EXC. MINI BUS CHASSIS | ||
| 033 | I8-97695 881-A | COVER RADIO | 1 | 1907- | NPS81 | |||
| 227 | I8-98053 117-0 | PROTECTOR EDGE | 1 | 1907- | ALL | |||
| 010 | I8-98061 742-0 | SCREW ANTENNA CABLE | 2 | 1907- | ALL | M5X11 TAPPING W/TORQUES |
