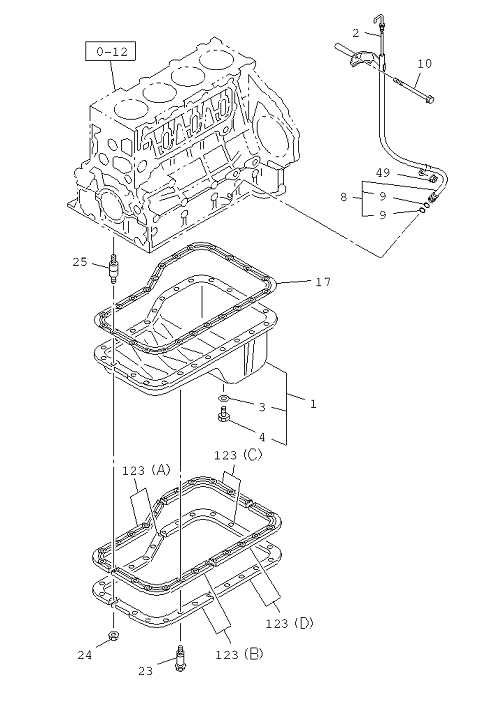

0-13 | OIL PAN AND LEVEL GAUGE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I0-91180 108-0 | NUT; OIL PAN | 13 | 1208- | NQR71 | |||
| 123 | I8-97186 998-0 | RUBBER; SEAL OIL | 1 | 1208- | NQR71 | |||
| 123 | I8-97186 994-0 | RUBBER; SEAL OIL | 1 | 1208- | NQR71 | |||
| 49 | I0-91180 110-0 | NUT; GUIDE TUBE | 1 | 1208- | NQR71 | |||
| 8 | I8-97200 567-1 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1208- | NQR71 | |||
| 17 | I8-97364 386-0 | GASKET; OIL PAN | 1 | 1208- | NQR71 | |||
| 1 | I8-98203 596-0 | PAN ASM; OIL | 1 | 1208- | NQR71 | |||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 1208- | NQR71 | |||
| 9 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAU | 2 | 1208- | NQR71 | |||
| 23 | I8-97190 390-0 | BOLT; OIL PAN | 13 | 1208- | NQR71 | |||
| 10 | I0-50640 820-0 | BOLT; GUIDE TUBE | 1 | 1208- | NQR71 | |||
| 25 | I8-97190 391-0 | STUD; OIL PAN | 1 | 1208- | NQR71 | |||
| 123 | I8-97187 000-0 | RUBBER; SEAL OIL | 1 | 1208- | NQR71 | |||
| 25 | I8-97190 392-0 | STUD; OIL PAN | 9 | 1208- | NQR71 | |||
| 123 | I8-97186 988-0 | RUBBER; SEAL OIL | 1 | 1208- | NQR71 | |||
| 2 | I8-97094 460-2 | GAUGE; OIL LEVEL | 1 | 1208- | NQR71 | |||
| 4 | I8-94152 613-A | PLUG; DRAIN,OIL | 1 | 1208- | NQR71 |
