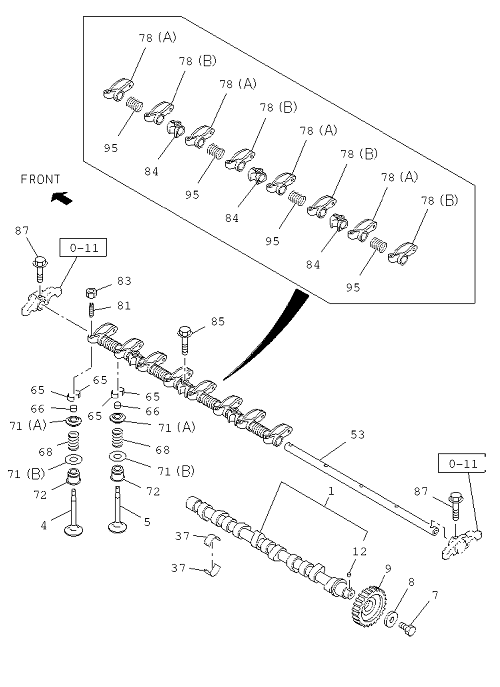

0-14 | CAMSHAFT AND VALVE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

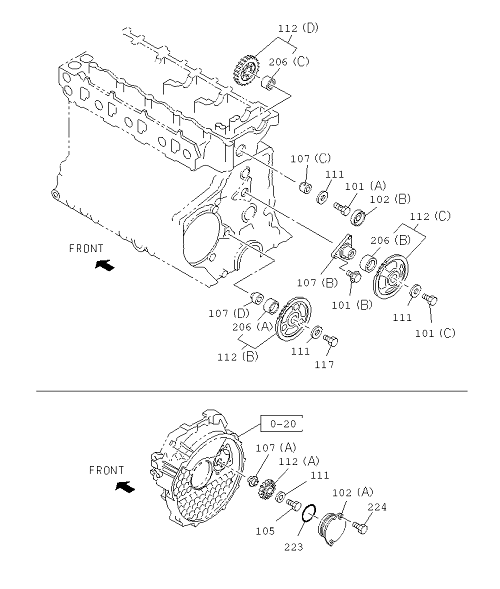

| 206 | I8-97606 768-0 | BUSHING; IDLE GEAR | 1 | 1208- | NQR71 | (B) AFTER PRESS FITTING, MACHINE IT. | ||
| 83 | I0-91111 510-0 | NUT; ADJ SCREW,LK | 8 | 1208- | NQR71 | M10 | ||
| 85 | I8-97174 650-0 | BOLT; BRKT | 3 | 1208- | NQR71 | KEIHIN SEIMITSU M10X62 FLANGE | ||
| 112 | I8-97112 607-1 | GEAR; IDLE | 1 | 1208- | NQR71 | (D) Z=41 | ||
| 111 | I8-97209 728-A | COLLAR; THRUST,IDLE GEAR | 4 | 1208- | NQR71 | ID=14.5 OD=46 | ||
| 87 | I0-28050 835-0 | BOLT; ROCKER SHAFT | 2 | 1208- | NQR71 | 03.162 M8X3 5 FLANGE | ||
| 71 | I8-94385 029-2 | SEAT; SPR | 8 | 1208- | NQR71 | |||
| 84 | I8-97174 568-0 | BRACKET; ROCKER SHAFT,INTER | 3 | 1208- | NQR71 | KEIHIN SEIMITSU | ||
| 101 | I0-28060 816-0 | BOLT; THRUST COLLAR | 3 | 1208- | NQR71 | (B) M8X16 FLANGE | ||
| 107 | I8-94334 682-1 | SHAFT; IDLE GEAR | 1 | 1208- | NQR71 | (A) | ||
| 101 | I9-92361 425-0 | BOLT; THRUST COLLAR | 1 | 1208- | NQR71 | (C) M14X25 | ||
| 85 | I8-94393 131-0 | BOLT; BRKT | 3 | 1208- | NQR71 | JBK M10X62 FLANGE | ||
| 8 | I9-09851 850-A | WASHER; CM/SHF GEAR | 1 | 1208- | NQR71 | |||
| 5 | I8-97171 399-0 | VALVE; EXH | 4 | 1208- | NQR71 | |||
| 95 | I8-97174 654-0 | SPRING; ROCKER SHAFT | 4 | 1208- | NQR71 | KEIHIN SEIMITSU | ||
| 65 | I5-12565 006-0 | COLLAR; SPLIT | 16 | 1208- | NQR71 | |||
| 78 | I8-97074 614-1 | ARM; ROCKER | 4 | 1208- | NQR71 | |||
| 105 | I0-16956 460-0 | BOLT; IDLE GEAR SHAFT | 1 | 1208- | NQR71 | M14X60 | ||
| 112 | I8-97120 005-1 | GEAR; IDLE | 1 | 1208- | NQR71 | (A) Z=34 | ||
| 7 | I8-94396 439-0 | BOLT; CM/SHF GEAR | 1 | 1208- | NQR71 | |||
| 71 | I8-94399 526-1 | SEAT; SPR | 8 | 1208- | NQR71 | |||
| 224 | I0-28050 816-0 | BOLT; COVER | 2 | 1208- | NQR71 | 02.343 M8X16 FLANGE | ||
| 102 | I8-94334 681-1 | COVER; IDLE GEAR | 1 | 1208- | NQR71 | (A) | ||
| 9 | I8-97094 440-2 | GEAR; CM/SHF | 1 | 1208- | NQR71 | |||
| 84 | I8-94388 109-3 | BRACKET; ROCKER SHAFT,INTER | 3 | 1208- | NQR71 | JBK | ||
| 53 | I8-97074 617-1 | SHAFT; ROCKER ARM | 1 | 1208- | NQR71 | |||
| 12 | I8-94399 487-0 | KEY; CAM GEAR SET | 1 | 1208- | NQR71 | |||
| 95 | I8-94397 263-0 | SPRING; ROCKER SHAFT | 4 | 1208- | NQR71 | JBK | ||
| 101 | I8-94372 221-1 | BOLT; THRUST COLLAR | 1 | 1208- | NQR71 | (A) M14X36.5 | ||
| 68 | I8-97023 559-0 | SPRING; VLV | 8 | 1208- | NQR71 | |||
| 102 | I8-97096 826-A | COVER; IDLE GEAR | 1 | 1208- | NQR71 | (B) OD=51 | ||
| 206 | I1-12528 006-0 | BUSHING; IDLE GEAR | 1 | 1208- | NQR71 | (A) AFTER PRESS FITTING, MACHINE IT. | ||
| 78 | I8-97074 614-1 | ARM; ROCKER | 4 | 1208- | NQR71 | |||
| 112 | I8-97094 546-2 | GEAR; IDLE | 1 | 1208- | NQR71 | (C) Z=61 | ||
| 53 | I8-97174 567-0 | SHAFT; ROCKER ARM | 1 | 1208- | NQR71 | |||
| 107 | I8-98060 780-0 | SHAFT; IDLE GEAR | 1 | 1208- | NQR71 | (D) | ||
| 78 | I8-97014 258-2 | ARM; ROCKER | 4 | 1208- | NQR71 | |||
| 107 | I8-97350 021-A | SHAFT; IDLE GEAR | 1 | 1208- | NQR71 | (B) | ||
| 4 | I8-97171 398-0 | VALVE; INL | 4 | 1208- | NQR71 | |||
| 107 | I8-97186 398-1 | SHAFT; IDLE GEAR | 1 | 1208- | NQR71 | (C) | ||
| 117 | I8-97113 167-0 | BOLT; FLANGE | 1 | 1208- | NQR71 | M14X65 FLANGE | ||
| 112 | I8-97227 074-0 | GEAR; IDLE | 1 | 1208- | NQR71 | (B) Z=72-30; ID=30 | ||
| 37 | I8-97386 189-0 | METAL; CM/SHF | 10 | 1208- | NQR71 | |||
| 223 | I1-09623 423-0 | GASKET; COVER,IDLE GEAR | 1 | 1208- | NQR71 | ID=105.6 | ||
| 72 | I8-94396 609-2 | SEAL; VLV GUIDE | 8 | 1208- | NQR71 | |||
| 66 | I8-94396 015-2 | CAP; VLV STEM END | 8 | 1208- | NQR71 | |||
| 81 | I8-94367 526-2 | SCREW; ADJ,ROCKER ARM | 8 | 1208- | NQR71 | |||
| 112 | I8-94395 109-4 | GEAR; IDLE | 1 | 1805- | NQR71 | (B) Z=72-30; ID=39.8 | ||
| 206 | I8-97606 770-0 | BUSHING; IDLE GEAR | 1 | 1208- | NQR71 | (C) AFTER PRESS FITTING, MACHINE IT. | ||
| 78 | I8-97014 258-2 | ARM; ROCKER | 4 | 1208- | NQR71 | |||
| 1 | I8-97077 829-0 | CAMSHAFT | 1 | 1208- | NQR71 |
