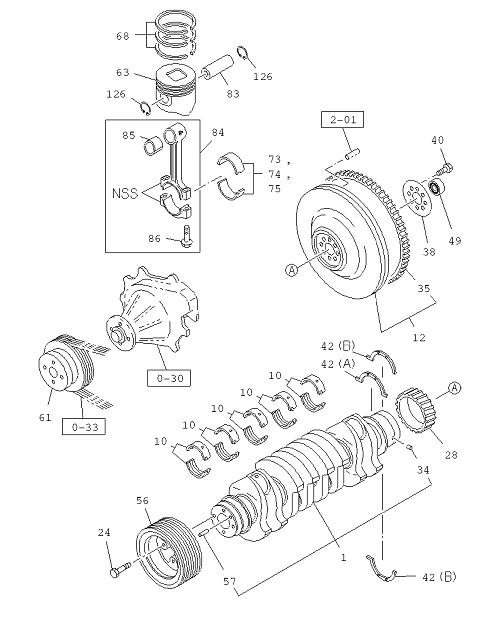

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 68 | I8-98054 995-0 | RING SET; PISTON,STANDARD | 4 | 1208- | NQR71 | |||
| 28 | I8-97109 626-1 | GEAR; CR/SHF | 1 | 1208- | NQR71 | Z=42 | ||
| 12 | I8-97330 892-A | FLYWHEEL | 1 | 1208- | NQR71 | |||
| 40 | I8-97178 013-0 | BOLT; FLYWHEEL | 8 | 1208- | NQR71 | M16X42 | ||
| 73 | I8-97045 800-0 | METAL SET; CONN ROD,STANDARD | 4 | 1208- | NQR71 | |||
| 63 | I8-98209 745-A | PISTON | 4 | 1208- | NQR71 | (IADG) | ||
| 74 | I8-97175 127-0 | METAL SET; CONN ROD,U/S=0.25 | 4 | 1208- | NQR71 | |||
| 35 | I8-97046 366-1 | GEAR; RING | 1 | 1208- | NQR71 | Z=138 | ||
| 10 | I8-97372 078-1 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1208- | NQR71 | BROWN | ||
| 42 | I8-97386 549-0 | WASHER; THRUST,CR/SHF | 2 | 1208- | NQR71 | (B) | ||
| 56 | I8-97222 031-3 | PULLEY; CR/SHF DAMPER | 1 | 1208- | NQR71 | 4-GROOVE | ||
| 42 | I8-97386 548-0 | WASHER; THRUST,CR/SHF | 1 | 1208- | NQR71 | (A) | ||
| 61 | I8-97174 757-3 | PULLEY; FAN DRIVE | 1 | 1208- | NQR71 | 2-GROOVE | ||
| 57 | I9-08150 820-0 | PIN; PULLEY | 2 | 1208- | NQR71 | 00.862 OD=8 L=20 | ||
| 38 | I8-94397 496-A | WASHER; FLYWHEEL | 1 | 1208- | NQR71 | ID=55 OD=110 | ||
| 85 | I8-98121 309-0 | BUSHING; CONNROD | 4 | 1208- | NQR71 | |||
| 10 | I8-97372 077-1 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1208- | NQR71 | BLACK | ||
| 34 | I9-09878 626-0 | PIN; GEAR SETTING | 1 | 1208- | NQR71 | OD=5 L=6 | ||
| 126 | I8-94318 798-2 | RING; SNAP,PISTON PIN | 8 | 1208- | NQR71 | |||
| 84 | I8-97135 032-7 | ROD ASM; CONN | 4 | 1208- | NQR71 | |||
| 73 | I8-97045 801-0 | METAL SET; CONN ROD,STANDARD | 4 | 1208- | NQR71 | |||
| 75 | I8-97175 128-0 | METAL SET; CONN ROD,U/S=0.50 | 4 | 1208- | NQR71 | |||
| 63 | I8-98209 745-0 | PISTON | 4 | 1208- | NQR71 | |||
| 86 | I8-98091 141-0 | BOLT; CONNROD | 8 | 1208- | NQR71 | |||
| 10 | I8-97372 076-1 | METAL SET; CRANKSHAFT,STANDARD | 5 | 1208- | NQR71 | BLUE | ||
| 1 | I8-97112 981-4 | CRANKSHAFT | 1 | 1208- | NQR71 | |||
| 24 | I8-97028 733-0 | BOLT; DAMPER | 4 | 1208- | NQR71 | M16X42 | ||
| 83 | I8-94396 589-1 | PIN; PISTON | 4 | 1208- | NQR71 |
