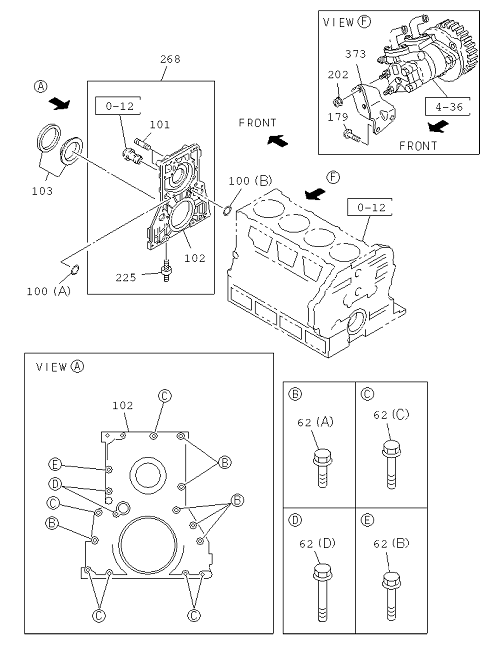

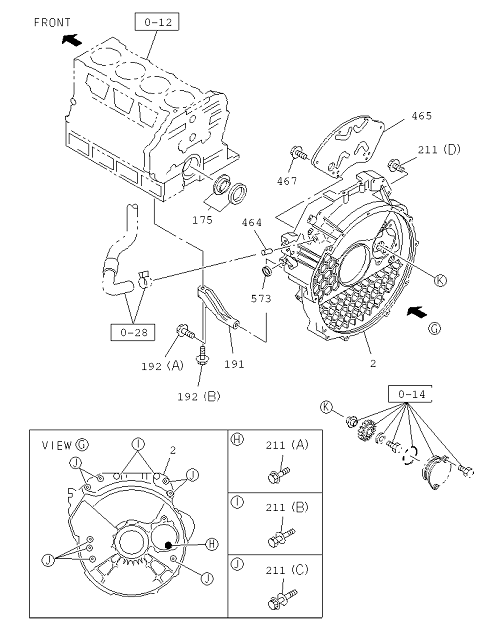

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98328 145-0 | HOUSING; FLYWHEEL | 1 | 1208- | NQR71 | |||
| 179 | I0-28181 018-0 | BOLT; BRKT | 2 | 1208- | NQR71 | |||
| 62 | I1-09044 072-1 | BOLT; COVER | 2 | 1208- | NQR71 | |||
| 225 | I8-97190 392-0 | STUD; OIL PAN | 3 | 1208- | NQR71 | M8X16,M8X19 L=3 9 W/PL WASHER,RUBBER TUBE | ||
| 211 | I8-97200 622-1 | BOLT; HSG | 2 | 1208- | NQR71 | (B) M8X2 0,M8X6 5 L=90 | ||
| 103 | I6-97329 780-0 | SEAL;OIL CR/SHAFT, FR | 1 | 1208- | NQR71 | (IADG) | ||
| 62 | I0-28650 830-0 | BOLT; COVER | 1 | 1208- | NQR71 | |||
| 373 | I8-97149 333-0 | BRACKET; PUMP | 1 | 1208- | NQR71 | |||
| 573 | I8-94150 231-0 | CUP; SEALING | 1 | 1208- | NQR71 | 00 . 034 OD=19 | ||
| 175 | I8-98334 339-0 | SEAL; OIL,CR/SHF,RR | 1 | 1208- | NQR71 | |||
| 211 | I8-97135 419-0 | BOLT; HSG | 1 | 1208- | NQR71 | (A) M12X3 0 FLANGE | ||
| 103 | I6-97329 780-0 | SEAL;OIL CR/SHAFT, FR | 1 | 1208- | NQR71 | (IADG) | ||
| 467 | I8-98030 649-0 | BOLT; PLATE | 6 | 1208- | NQR71 | 06.321 M6X10 | ||
| 268 | I8-98039 931-2 | COVER; FRT | 1 | 1208- | NQR71 | |||
| 101 | I8-97028 541-0 | STUD; WATER PUMP | 1 | 1208- | NQR71 | |||
| 101 | I0-41010 818-0 | STUD; WATER PUMP | 1 | 1208- | NQR71 | |||
| 192 | I0-28151 250-0 | BOLT; STAY TO HSG | 1 | 1208- | NQR71 | 00.685 (A) M12X50 FLANGE | ||
| 100 | I8-97028 748-1 | GASKET; FRT COVER | 1 | 1208- | NQR71 | |||
| 103 | I8-97329 780-0 | SEAL; OIL,CR/SHF,FRT | 1 | 1208- | NQR71 | |||
| 464 | I8-94373 246-3 | PIPE; PCV,FLYWHEEL HSG | 1 | 1208- | NQR71 | .4645833333333 | ||
| 62 | I0-28650 835-0 | BOLT; COVER | 6 | 1208- | NQR71 | |||
| 102 | I8-98039 932-2 | RETAINER; FRT | 1 | 1208- | NQR71 | |||
| 103 | I6-97329 780-0 | SEAL;OIL CR/SHAFT, FR | 1 | 1208- | NQR71 | (IADG) | ||
| 192 | I0-28151 200-0 | BOLT; STAY TO HSG | 1 | 1208- | NQR71 | 02.510 (B) M12X100 FLANGE | ||
| 465 | I8-97363 824-1 | PLATE; FLYWHEEL HSG | 1 | 1208- | NQR71 | |||
| 211 | I0-28651 040-0 | BOLT; HSG | 1 | 1208- | NQR71 | 00.029 (D) M10X40 FLANGE | ||
| 211 | I8-98179 087-1 | BOLT; HSG | 9 | 1208- | NQR71 | (C) M12X70 FLANGE, W/PL WASHER | ||
| 191 | I8-97167 292-0 | STAY; FLYWHEEL HSG | 1 | 1208- | NQR71 | |||
| 100 | I9-09561 318-0 | GASKET; FRT COVER | 1 | 1208- | NQR71 | |||
| 202 | I0-91180 108-0 | NUT; BRKT | 1 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 62 | I0-28650 825-0 | BOLT; COVER | 6 | 1208- | NQR71 |
