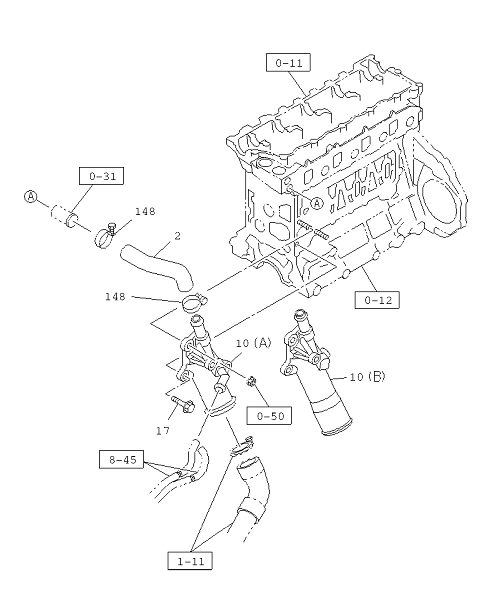

0-32 | WATER PIPING; ENGINE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-94458 473-1 | BOLT; SUCTION PIPE | 1 | 1208- | NQR71 | 03.415 M8X4 8 FLANGE | ||
| 10 | I8-98212 009-0 | PIPE; SUCTION | 1 | 1208- | NQR71 | EXC. HEATER & DEFROSTER(C41),AIR CONDITION ER MANUAL CONT(C60) (B) | ||
| 148 | I1-09704 037-0 | CLIP; BYPASS HOSE | 2 | 1208- | NQR71 | 03.417 ID=30 | ||
| 10 | I8-98166 992-0 | PIPE; SUCTION | 1 | 1208- | NQR71 | HEATER & DEFROSTER(C41),AIR CONDITIONER MA NUAL CONT(C6 0) (A) | ||
| 2 | I8-97209 948-A | HOSE; WATER,BY-PASS | 1 | 1208- | NQR71 |
