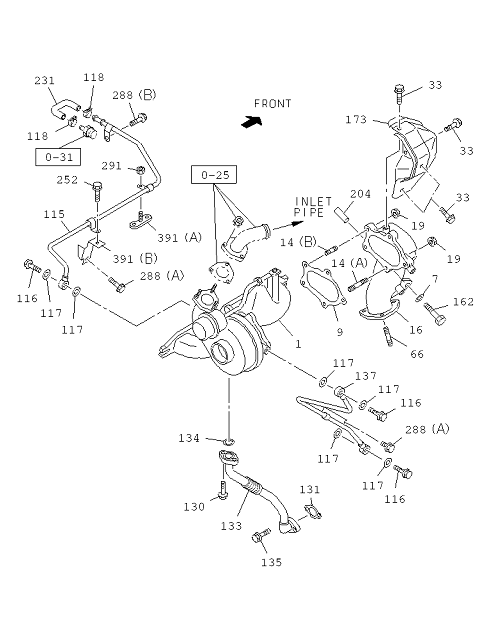

0-36 | TURBOCHARGER SYSTEM
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 133 | I8-98261 657-0 | PIPE ASM; OIL, TURBO DRAIN | 1 | 1411- | NQR71 | NULL | ||
| 291 | I0-91180 108-0 | NUT; PIPE TO BRKT | 1 | 1208- | NQR71 | 01. 062 M8 FLANGE | ||
| 9 | I8-97039 777-1 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 1208- | NQR71 | |||
| 137 | I8-97229 036-0 | PIPE; WATER,TURBOCHARGER IN | 1 | 1208- | NQR71 | |||
| 162 | I5-09000 275-0 | BOLT; ADAPTER | 1 | 1208- | NQR71 | M8X57 | ||
| 231 | I6-97209 950-0 | HOSE WATER TURBO | 1208- | NQR71 | (IADG) | |||
| 231 | I8-97209 950-A | HOSE; RUBBER,TURBOCHARGER OUT | 1 | 1208- | NQR71 | |||
| 391 | I8-97210 078-A | BRACKET; WATER PIPE | 1 | 1208- | NQR71 | (A) | ||
| 14 | I8-97019 477-0 | STUD; TURBOCHARGER TO EXH PIPE | 2 | 1208- | NQR71 | |||
| 14 | I8-97019 478-0 | STUD; TURBOCHARGER TO EXH PIPE | 3 | 1208- | NQR71 | |||
| 130 | I0-50540 620-0 | BOLT; OIL PIPE TO TURBOCHARGER D | 2 | 1208- | NQR71 | |||
| 115 | I8-97210 077-2 | PIPE; WATER,TURBOCHARGER OUT | 1 | 1208- | NQR71 | |||
| 66 | I0-44011 025-0 | STUD; EXH PIPE | 3 | 1208- | NQR71 | |||
| 391 | I8-97221 061-0 | BRACKET; WATER PIPE | 1 | 1208- | NQR71 | (B) | ||
| 137 | I8-98213 680-0 | PIPE ASM; WATER, TURBO IN | 1 | 1411- | NQR71 | NULL | ||
| 252 | I0-28050 812-A | BOLT; BRKT | 1 | 1208- | NQR71 | 02 .343 M8X12 FLANGE | ||
| 288 | I0-28050 812-A | BOLT; WATER PIPE CLIP | 2 | 1208- | NQR71 | 02.343 (A) M8X12 FLANGE | ||
| 288 | I0-28151 016-0 | BOLT; WATER PIPE CLIP | 1 | 1208- | NQR71 | 00.029 (B) M10X16 FLANGE | ||
| 118 | I8-94221 519-0 | CLIP; WATER HOSE | 2 | 1208- | NQR71 | |||
| 135 | I0-28050 820-0 | BOLT; OIL PIPE TO C/BL | 2 | 1208- | NQR71 | 04.338 M8X20 FLANGE | ||
| 204 | I8-97214 384-1 | COLLAR; PIPE ADAPTER | 1 | 1208- | NQR71 | |||
| 116 | I8-98037 827-0 | BOLT; WATER PIPE | 3 | 1208- | NQR71 | |||
| 231 | I6-97209 950-0 | HOSE WATER TURBO | 1 | 1208- | NQR71 | (IADG) | ||
| 131 | I8-94394 671-0 | GASKET; OIL PIPE,C/BL | 1 | 1208- | NQR71 | |||
| 134 | I1-09623 462-0 | GASKET; OIL PIPE,TURBOCHARGER DR | 1 | 1208- | NQR71 | ID=22.8 | ||
| 173 | I8-97178 497-2 | PROTECTOR; HEAT,FUEL PIPE | 1 | 1208- | NQR71 | |||
| 115 | I8-98261 645-0 | PIPE ASM; WATER, TURBO RETURN | 1 | 1411- | NQR71 | NULL | ||
| 33 | I8-97108 669-0 | BOLT; HEAT PROTECTOR | 4 | 1208- | NQR71 | |||
| 133 | I8-98172 659-0 | PIPE; OIL DRAIN,TURBOCHARGER | 1 | 1208- | NQR71 | |||
| 1 | I8-98254 714-0 | TURBOCHARGER ASM | 1 | 1411- | NQR71 | NULL | ||
| 117 | I9-09571 414-0 | GASKET; WATER PIPE | 2 | 1208- | NQR71 | |||
| 7 | I8-94174 537-0 | WASHER; PL,BRKT | 1 | 1208- | NQR71 | |||
| 16 | I8-97178 487-A | ADAPTER; EXH PIPE | 1 | 1208- | NQR71 | |||
| 117 | I1-09630 085-0 | GASKET; WATER PIPE | 4 | 1208- | NQR71 | |||
| 19 | I8-94170 486-0 | NUT; EXH PIPE,TURBOCHARGER | 5 | 1208- | NQR71 | |||
| 1 | I8-97326 752-1 | TURBOCHARGER ASM | 1 | 1208- | NQR71 |
