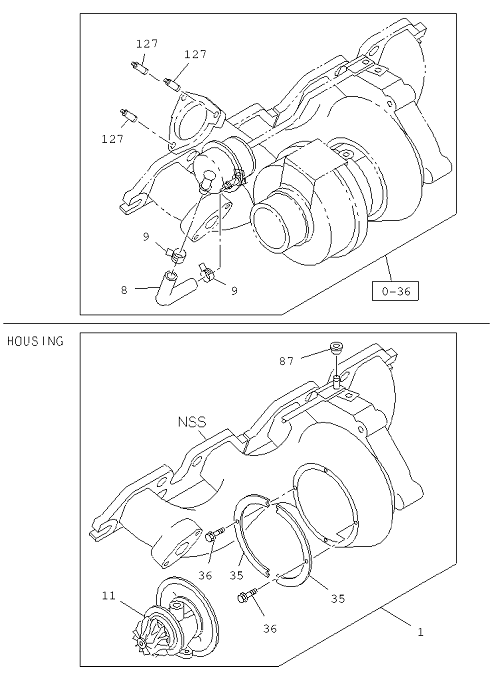

0-37 | TURBOCHARGER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I8-97213 590-0 | CLAMP; TURBINE HSG,TURBOCHARGER | 2 | NQR71 | ||||
| 11 | I8-97326 280-0 | HOUSING ASM; TURBOCHARGER | 1 | NQR71 | ||||
| 127 | I8-97213 578-0 | STUD; TURBOCHARGER | 3 | NQR71 | ||||
| 9 | I8-97213 592-0 | CLIP; ACTUATOR HOSE,TURBOCHARGER | 2 | NQR71 | ||||
| 36 | I1-14419 104-0 | BOLT; LK PLATE,TURBINE HSG,TURBO | 4 | NQR71 | ||||
| 8 | I8-97213 591-0 | HOSE; ACTUATOR TO BLOWER HSG,TC | 1 | NQR71 | ||||
| 87 | I8-97213 588-0 | RING; ACTUATOR,TURBOCHARGER | 1 | NQR71 | ||||
| 1 | I8-97223 905-0 | HOUSING; TURBINE,TURBOCHARGER | 1 | NQR71 |
