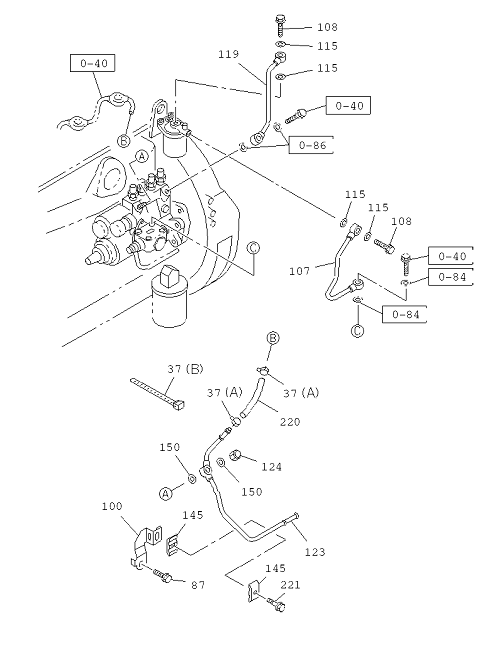

0-42 | FUEL PUMP AND PIPE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I8-98150 358-0 | CLIP; FUEL HOSE | 2 | 1208- | NQR71 | |||
| 150 | I9-09572 014-0 | GASKET; FUEL PIPE | 2 | 1208- | NQR71 | |||
| 100 | I8-97108 315-0 | CLIP; "B",FUEL PIPE | 1 | 1208- | NQR71 | |||
| 115 | I9-09572 014-0 | GASKET; JOINT BOLT,FUEL PIPE | 4 | 1208- | NQR71 | |||
| 87 | I0-28050 812-A | BOLT; STAY,FUEL PIPE | 1 | 1208- | NQR71 | |||
| 145 | I8-97016 323-1 | CLIP; FUEL PIPE | 2 | 1208- | NQR71 | |||
| 119 | I8-97211 323-A | PIPE; FUEL,FUEL FILTER TO INJ PU | 1 | 1208- | NQR71 | |||
| 221 | I0-28650 640-0 | BOLT; FUEL PIPE | 1 | 1208- | NQR71 | |||
| 108 | I1-09675 086-0 | BOLT; JOINT,FUEL FILTER | 2 | 1208- | NQR71 | |||
| 220 | I8-97208 874-A | HOSE; FUEL | 1 | 1208- | NQR71 | |||
| 123 | I8-97223 179-A | PIPE; FUEL,FUEL FILTER LEAK OFF | 1 | 1208- | NQR71 | |||
| 124 | I1-09468 002-1 | NUT; CAP,FUEL PIPE | 1 | 1208- | NQR71 | |||
| 37 | I5-09707 031-1 | CLIP; FUEL HOSE | 1 | 1208- | NQR71 | |||
| 107 | I8-97210 721-A | PIPE; FUEL,FEED PUMP TO FUEL FIL | 1 | 1208- | NQR71 |
