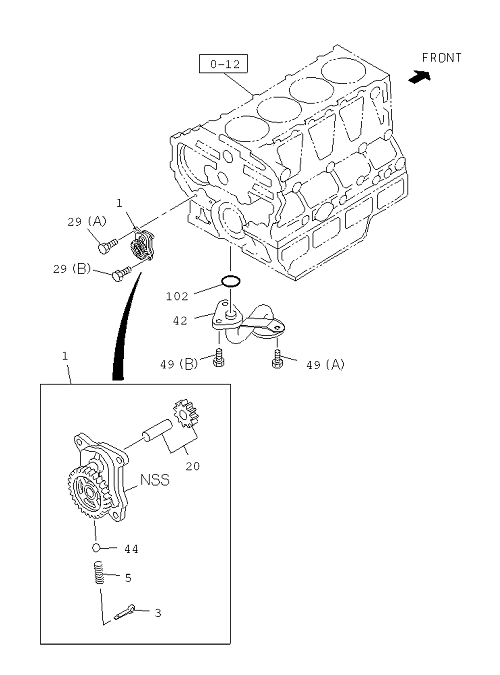

0-51 | OIL PUMP AND OIL STRAINER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I8-97071 956-0 | BOLT; STRAINER,OIL PUMP | 1 | 1208- | NQR71 | (A) M10X80 | ||
| 3 | I0-81124 030-0 | PIN; SPLIT | 1 | 1208- | NQR71 | 06.022 L=30 | ||
| 29 | I0-28060 825-0 | BOLT; OIL PUMP | 2 | 1208- | NQR71 | 06.174 (A) M8X25 FLANGE | ||
| 20 | I8-98059 192-0 | GEAR; DRIVE,OIL PUMP | 1 | 1208- | NQR71 | |||
| 29 | I0-28060 830-0 | BOLT; OIL PUMP | 2 | 1208- | NQR71 | (B) M8X3 0 FLANGE | ||
| 5 | I5-09580 098-0 | SPRING; COIL | 1 | 1208- | NQR71 | |||
| 102 | I8-94399 398-0 | GASKET; STRAINER | 1 | 1208- | NQR71 | 01.531 ID=2 4.5 | ||
| 44 | I5-09843 003-0 | BALL; RELIEF VLV | 1 | 1208- | NQR71 | |||
| 1 | I8-98017 585-1 | PUMP ASM; OIL | 1 | 1208- | NQR71 | |||
| 49 | I0-28060 816-0 | BOLT; STRAINER,OIL PUMP | 2 | 1208- | NQR71 | 00 . 724 (B) M8X16 FLANGE | ||
| 42 | I8-98213 867-0 | STRAINER; OIL,OIL PUMP | 1 | 1208- | NQR71 |
