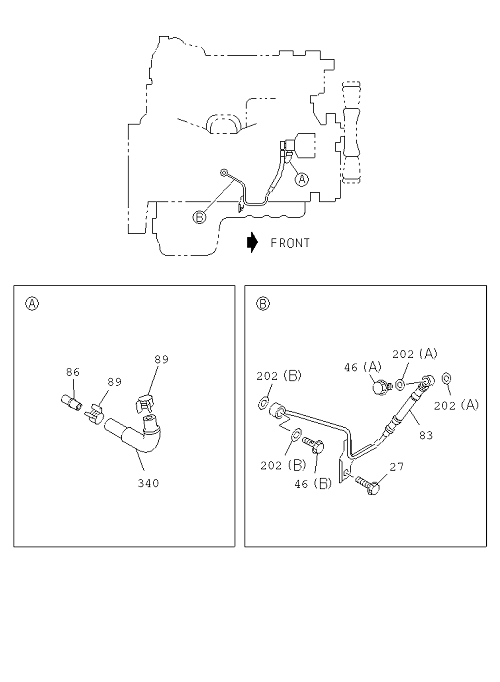

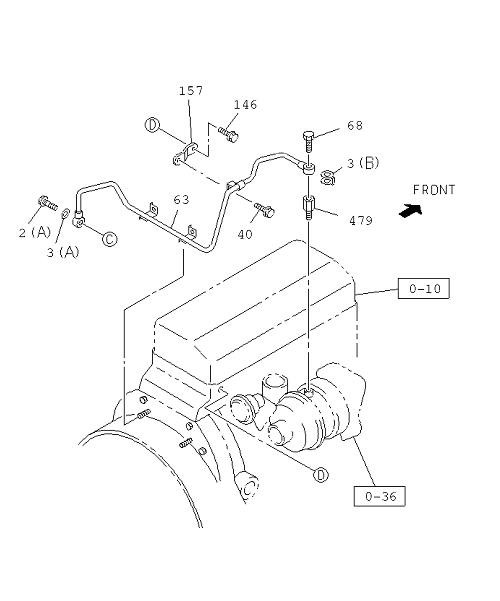

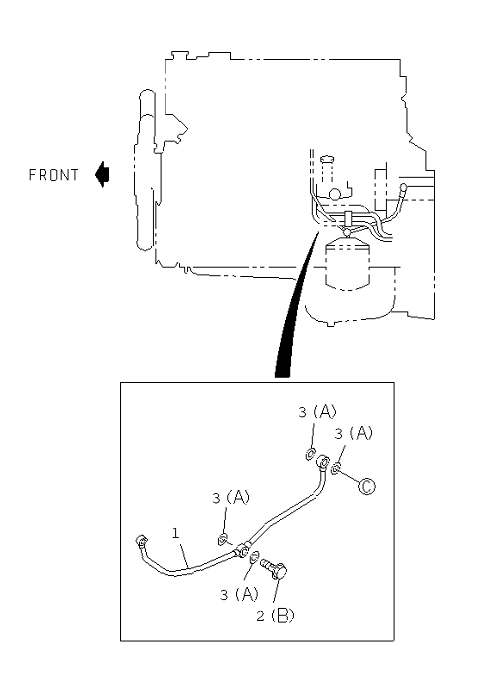

0-52 | 0-52 OIL AND VACUUM PIPING; ENGINE
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 88 | I6-94339 073-3 | HOSE; VAC PUMP RET | 1208- | NQR71 | (IADG) 4681 | |||
| 63 | I8-98261 644-0 | PIPE ASM; OIL, TURBO FEED | 1 | 1411- | NQR71 | NULL | ||
| 3 | I8-98158 135-0 | GASKET; EYE BOLT,OIL PIPE | 4 | 1407- | NQR71 | (B) ID=10.2 | ||
| 89 | I8-94122 679-0 | CLIP; VAC HOSE | 1 | 1208- | NQR71 | 03.280 ID=17.1 | ||
| 86 | I8-94455 311-1 | PIPE; OIL,VAC PUMP RETURN | 1 | 1208- | NQR71 | 1430 | ||
| 2 | I9-09906 205-1 | BOLT; EYE,OIL PIPE | 1 | 1208- | NQR71 | 03 .280 (B) M10X24 | ||
| 40 | I0-28050 812-A | BOLT; OIL PIPE | 1 | 1208- | NQR71 | 02 .343 M8X12 FLANGE | ||
| 83 | I8-97228 671-0 | PIPE; OIL,C/BL TO VAC PUMP | 1 | 1208- | NQR71 | |||
| 147 | I8-98029 475-0 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 1407- | NQR71 | ID=16 | ||
| 89 | I8-94122 679-0 | CLIP; VAC HOSE | 1 | 1208- | NQR71 | 03 .280 ID=17.1 | ||
| 3 | I1-09630 083-0 | GASKET; EYE BOLT,OIL PIPE | 5 | 1208- | NQR71 | (A) ID=10.2 OD=15.2 | ||
| 88 | I6-94339 073-3 | HOSE; VAC PUMP RET | 1 | 1208- | NQR71 | (IADG) 4681 | ||
| 63 | I8-97372 936-A | PIPE; OIL,TURBOCHARGER FEED | 1 | 1208- | NQR71 | |||
| 202 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 1208- | NQR71 | (A) ID=10.2 OD=15.2 | ||
| 46 | I1-09675 086-0 | BOLT; JOINT,OIL FEED PIPE,VAC PU | 1 | 1208- | NQR71 | 03 . 162 (B) M14X2 7 FLANGE | ||
| 146 | I0-28050 812-A | BOLT; BRKT | 1 | 1208- | NQR71 | 02.343 M8X12 FLANGE | ||
| 340 | I6-94339 073-3 | HOSE; VAC PUMP RET | 1 | 1208- | NQR71 | (IADG) 4681 | ||
| 340 | I8-94339 073-3 | HOSE; VAC PUMP,RETURN | 1 | 1208- | NQR71 | 4681 | ||
| 88 | I6-94339 073-3 | HOSE; VAC PUMP RET | 1 | 1208- | NQR71 | (IADG) 4681 | ||
| 479 | I8-94436 891-A | ADAPTER | 1 | 1208- | NQR71 | 1800 | ||
| 1 | I8-97200 615-4 | PIPE; OIL,INJ PUMP TO C/BL | 1 | 1208- | NQR71 | |||
| 68 | I8-97166 518-1 | BOLT; EYE,OIL PIPE,TURBOCHARGER | 1 | 1208- | NQR71 | M12X2 8 FLANGE | ||
| 27 | I0-28050 816-0 | BOLT; OIL PIPE FIX | 1 | 1208- | NQR71 | 02 .343 M8X16 FLANGE | ||
| 2 | I8-97182 847-0 | BOLT; EYE,OIL PIPE | 1 | 1208- | NQR71 | (A) M10X4 0 FLANGE | ||
| 340 | I6-94339 073-3 | HOSE; VAC PUMP RET | 1 | 1208- | NQR71 | (IADG) 4681 | ||
| 157 | I8-97181 586-A | BRACKET; OIL PIPE | 1 | 1208- | NQR71 | |||
| 46 | I8-97372 239-0 | BOLT; JOINT,OIL FEED PIPE,VAC PU | 1 | 1208- | NQR71 | (A) M10X21 FLANGE | ||
| 3 | I8-97331 137-1 | GASKET; EYE BOLT,OIL PIPE | 1 | 1208- | NQR71 | (B) ID=12.6 | ||
| 202 | I1-09630 085-0 | GASKET; OIL PIPE | 2 | 1208- | NQR71 | 03 . 163 (B) ID=14.2 OD=19.2 |
