0-56 | EMISSION SYSTEM
ELF
NQR 71

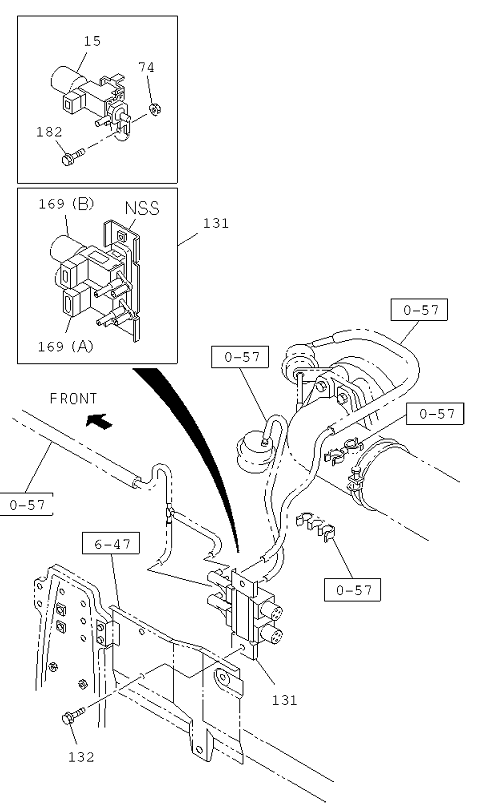

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 132 | I0-28650 625-0 | BOLT; VSV BRKT | 2 | 1208- | NQR71 | 00.685 M6X25 FLANGE IDN | ||
| 169 | I8-97037 165-2 | VALVE; VAC SWITCHING | 1 | 1208- | NQR71 | (A) | ||
| 182 | I0-28050 812-A | BOLT; VLV | 1 | 1208- | NQR71 | 02.343 M8X12 FLANGE | ||
| 15 | I8-97352 151-0 | VALVE; VAC SW | 1 | 1208- | NQR71 | |||
| 74 | I8-97329 625-0 | NUT; VSV | 1 | 1208- | NQR71 | 01.840 M8 W/DISHED WASHER | ||
| 169 | I8-97021 705-1 | VALVE; VAC SWITCHING | 1 | 1208- | NQR71 | (B) | ||
| 131 | I8-97030 324-1 | VALVE; VAC SWITCHING | 1 | 1208- | NQR71 |
