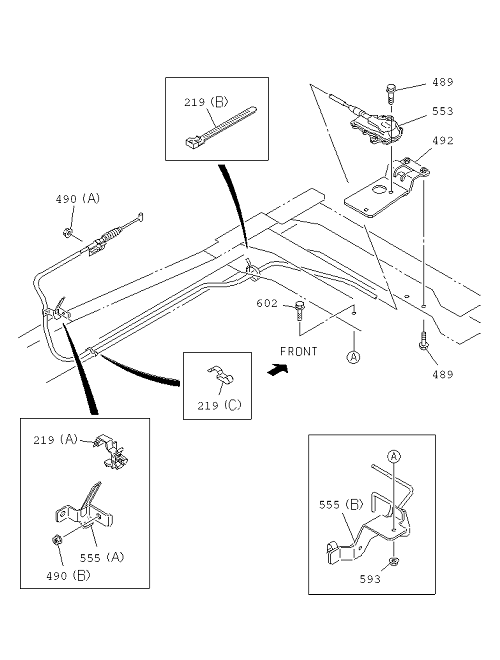

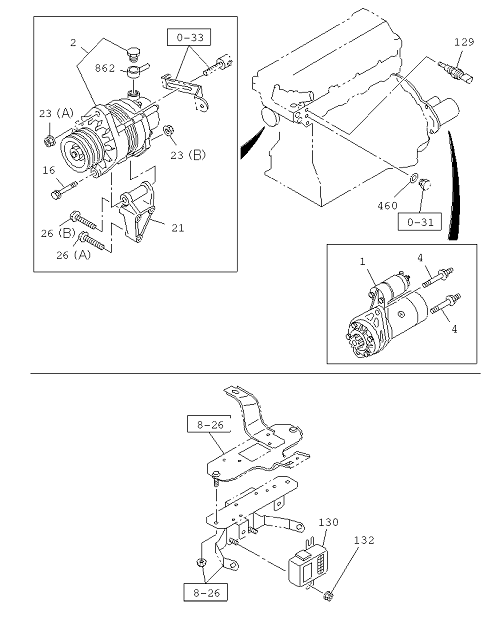

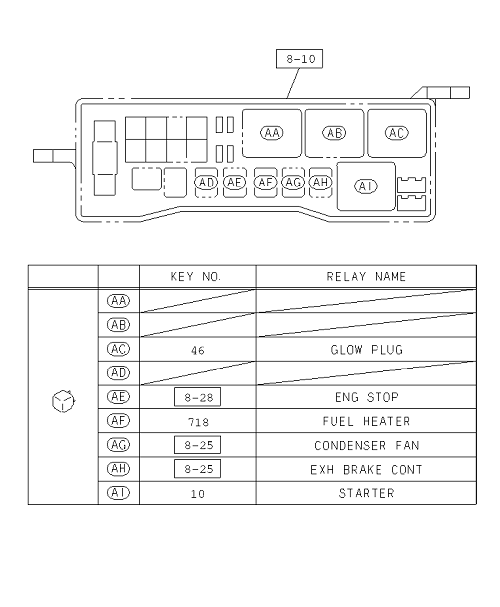

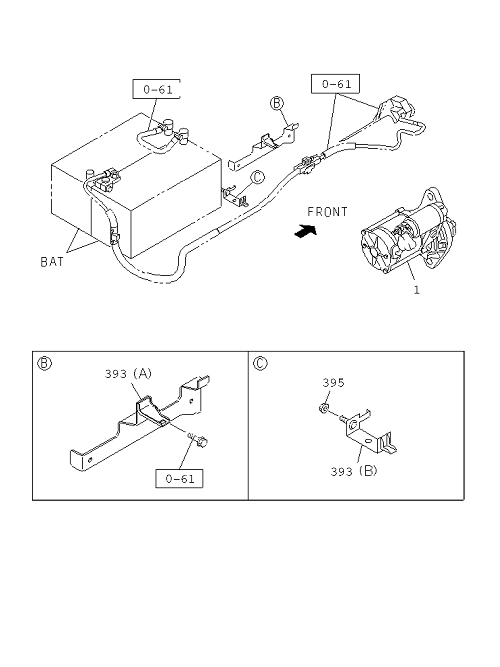

0-60 | ENGINE ELECTRICAL CONTROL PARTS
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I0-91180 108-0 | NUT; GEN | 1 | 1208- | NQR71 | 01.062 (A) M8 FLANGE | ||
| 553 | I8-98100 510-4 | MOTOR ASM; ENG STOP | 1 | 1208- | NQR71 | |||
| 23 | I7-05110 010-A | NUT; GEN | 1 | 1208- | NQR71 | 04.085 (B) M10 FLANGE | ||
| 490 | I0-91180 108-0 | NUT; ENG STOP | 1 | 1208- | NQR71 | 01. 062 (B) M8 FLANGE | ||
| 4 | I8-97212 602-0 | BOLT; STARTER | 2 | 1208- | NQR71 | M10X15,M14X75 L=103 | ||
| 490 | I0-91180 106-0 | NUT; ENG STOP | 1 | 1208- | NQR71 | 01. 062 (A) M6 FLANGE | ||
| 219 | I5-09707 030-1 | CLIP; ENG STOP CABLE | 1 | 1208- | NQR71 | 02.559 (B) L=250 IDN | ||
| 2 | I8-97351 573-0 | GENERATOR ASM | 1 | 1208- | NQR71 | GENERATOR 2 4V6 0A(KG2) 2 4V 6 0A HITACHI | ||
| 130 | I8-98170 223-2 | CONTROLLER; EGR | 1 | 1208- | NQR71 | |||
| 602 | I0-28650 825-0 | BOLT; BRKT | 1 | 1208- | NQR71 | 06.216 M8X25 FLANGE IDN | ||
| 219 | I8-97371 947-0 | CLIP; ENG STOP CABLE | 1 | 1208- | NQR71 | 02.559 (C) T=4.5 & 9 | ||
| 26 | I0-28151 070-0 | BOLT; GEN BRKT | 2 | 1208- | NQR71 | (B) M10X7 0 FLANGE | ||
| 26 | I0-28151 050-0 | BOLT; GEN BRKT | 1 | 1208- | NQR71 | 02.042 (A) M10X5 0 FLANGE | ||
| 21 | I8-97075 884-2 | BRACKET; GEN | 1 | 1208- | NQR71 | |||
| 395 | I0-91180 108-0 | NUT; BRKT FIX | 1 | 1208- | NQR71 | 01. 062 M8 FLANGE | ||
| 129 | I8-98023 717-0 | SENSOR; GLOW PLUG,THERMO | 1 | 1208- | NQR71 | UNISIA JECS | ||
| 46 | I8-97173 947-0 | RELAY; GLOW PLUG | 1 | 1208- | NQR71 | EXC. GLOW SYSTEM DELETE<7RK> 2 4V 5 0A | ||
| 489 | I0-28650 825-0 | BOLT; ENG STOPPER | 4 | 1208- | NQR71 | 06.216 M8X25 FLANGE IDN | ||
| 862 | I8-97351 626-0 | CONNECTOR; GEN | 1 | 1208- | NQR71 | GENERATOR 24V60A(KG2) ,GENERATOR 24V50A(6QN ) | ||
| 393 | I8-98018 251-1 | BRACKET; HARNESS TO BODY | 1 | 1208- | NQR71 | 02.483 (B) | ||
| 2 | I8-97351 572-1 | GENERATOR ASM | 1 | 1208- | NQR71 | GENERATOR 2 4V50A(6QN) 2 4V 5 0A HITACHI | ||
| 219 | I8-97040 812-0 | CLIP; ENG STOP CABLE | 1 | 1208- | NQR71 | 02.559 (A) ID=16 | ||
| 492 | I8-98100 401-2 | BRACKET; ENG STOPPER | 1 | 1208- | NQR71 | |||
| 16 | I8-97146 998-0 | BOLT; GEN | 1 | 1208- | NQR71 | M10X133 | ||
| 1 | I8-98245 258-1 | STARTER ASM | 1 | 1208- | NQR71 | STARTER 2 4V4.5KW<78M> 2 4V 4.5KW HITACHI | ||
| 10 | I8-97264 947-0 | RELAY; STARTER | 1 | 1208- | NQR71 | 2 4V 5 0A | ||
| 132 | I0-91180 106-0 | NUT; CONTROLLER | 2 | 1208- | NQR71 | 01.062 M6 FLANGE | ||
| 718 | I8-97173 035-1 | RELAY; FUEL HTR | 1 | 1208- | NQR71 | FUEL SEDIMENTER WITH HEATER<6HU> 08.852 2 4V 10A MATSUSHITA IDN | ||
| 555 | I8-98146 418-0 | BRACKET; ENG STOP | 1 | 1208- | NQR71 | (B) | ||
| 460 | I1-09630 086-0 | GASKET; PLUG | 1 | 1208- | NQR71 | 04.868 ID=16.2 | ||
| 555 | I8-98100 404-3 | BRACKET; ENG STOP | 1 | 1208- | NQR71 | (A) | ||
| 593 | I0-91180 108-0 | NUT; BRKT | 1 | 1208- | NQR71 | 01. 062 M8 FLANGE | ||
| 1 | I8-98222 018-2 | STARTER ASM | 1 | 1208- | NQR71 | EXC. STARTER 24V4.5KW<78M> 2 4V 4.0KW HITACHI | ||
| 129 | I8-98023 717-0 | SENSOR; GLOW PLUG,THERMO | 1 | 1208- | NQR71 | NIPPON THERMOSTAT | ||
| 393 | I8-98041 946-1 | BRACKET; HARNESS TO BODY | 1 | 1208- | NQR71 | (A) |
