| 14 |
I8-97377 691-0 |
|
GASKET; YOKE,STARTER |
1 |
|
|
NQR71 |
|
| 85 |
I8-94408 500-A |
|
BOLT; ENGAGE SW FIX,STARTER |
2 |
|
|
NQR71 |
|
| 19 |
I8-98253 306-0 |
|
COIL; FIELD,STARTER |
1 |
|
|
NQR71 |
|
| 32 |
I5-81129 069-A |
|
COVER; RUBBER,STARTER |
1 |
|
|
NQR71 |
|
| 50 |
I8-97230 560-0 |
|
BRUSH; (-),STARTER |
2 |
|
|
NQR71 |
|
| 20 |
I8-97230 560-0 |
|
BRUSH; (+),STARTER |
2 |
|
|
NQR71 |
|
| 10 |
I8-97179 772-0 |
|
SHAFT; GEAR STARTER |
1 |
|
|
NQR71 |
|
| 2 |
I8-98022 776-0 |
|
CASE; PINION,STARTER |
1 |
|
|
NQR71 |
|
| 17 |
I8-97030 387-A |
|
BEARING; ARMATURE,STARTER |
1 |
|
|
NQR71 |
(B) |
| 50 |
I8-98055 296-0 |
|
BRUSH; (-),STARTER |
2 |
|
|
NQR71 |
IDN |
| 38 |
I8-97230 559-0 |
|
GASKET; RR COVER,STARTER |
1 |
|
|
NQR71 |
|
| 19 |
I8-98055 295-0 |
|
COIL; FIELD,STARTER |
1 |
|
|
NQR71 |
IDN |
| 9 |
I8-97025 674-0 |
|
BEARING; GEAR SHAFT STARTER |
1 |
|
|
NQR71 |
(A) |
| 7 |
I8-97179 770-A |
|
CLUTCH ASM; PINION,STARTER |
1 |
|
|
NQR71 |
|
| 45 |
I8-98246 369-0 |
|
RETAINER; BEARING,STARTER |
1 |
|
|
NQR71 |
(C) |
| 31 |
I8-98246 367-0 |
|
SWITCH; ENGAGE STARTER |
1 |
|
|
NQR71 |
|
| 45 |
I8-97179 774-A |
|
RETAINER; BEARING,STARTER |
1 |
|
|
NQR71 |
(B) |
| 45 |
I8-94435 567-0 |
|
RETAINER; BEARING,STARTER |
1 |
|
|
NQR71 |
(A) |
| 16 |
I8-97192 299-0 |
|
ARMATURE; STARTER |
1 |
|
|
NQR71 |
|
| 9 |
I8-94228 436-A |
|
BEARING; GEAR SHAFT STARTER |
1 |
|
|
NQR71 |
(B) |
| 31 |
I8-97161 789-A |
|
SWITCH; ENGAGE STARTER |
1 |
|
|
NQR71 |
|
| 41 |
I8-97117 107-A |
|
SCREW; RR COVER,STARTER |
2 |
|
|
NQR71 |
|
| 22 |
I8-98055 298-0 |
|
HOLDER; BRUSH STARTER |
1 |
|
|
NQR71 |
IDN |
| 9 |
I8-97025 673-0 |
|
BEARING; GEAR SHAFT STARTER |
2 |
|
|
NQR71 |
(C) |
| 10 |
I8-98159 734-0 |
|
SHAFT; GEAR STARTER |
1 |
|
|
NQR71 |
|
| 22 |
I8-97230 562-0 |
|
HOLDER; BRUSH STARTER |
1 |
|
|
NQR71 |
|
| 28 |
I8-98179 218-0 |
|
LEVER; SHIFT,STARTER |
1 |
|
|
NQR71 |
|
| 27 |
I8-97192 423-0 |
|
BOLT; THROUGH,STARTER |
2 |
|
|
NQR71 |
IDN |
| 27 |
I8-97192 423-0 |
|
BOLT; THROUGH,STARTER |
2 |
|
|
NQR71 |
IDN |

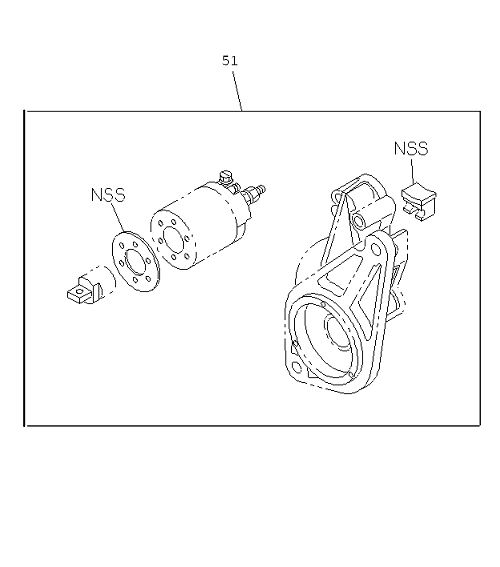

| 51 |
I8-97179 778-A |
|
COVER SET; DUST ENGAGE SW STARTE |
1 |
|
|
NQR71 |
|
| 23 |
I8-97227 901-0 |
|
COVER; RR COVER STARTER |
1 |
|
|
NQR71 |
|
| 23 |
I8-98022 772-0 |
|
COVER; RR COVER STARTER |
1 |
|
|
NQR71 |
|
| 32 |
I8-98253 307-0 |
|
COVER; RUBBER,STARTER |
1 |
|
|
NQR71 |
|
| 28 |
I8-97179 776-0 |
|
LEVER; SHIFT,STARTER |
1 |
|
|
NQR71 |
|
| 54 |
I8-98222 106-0 |
|
CLUTCH; PINION,STARTER |
1 |
|
|
NQR71 |
|
| 85 |
I8-94408 500-A |
|
BOLT; ENGAGE SW FIX,STARTER |
2 |
|
|
NQR71 |
|

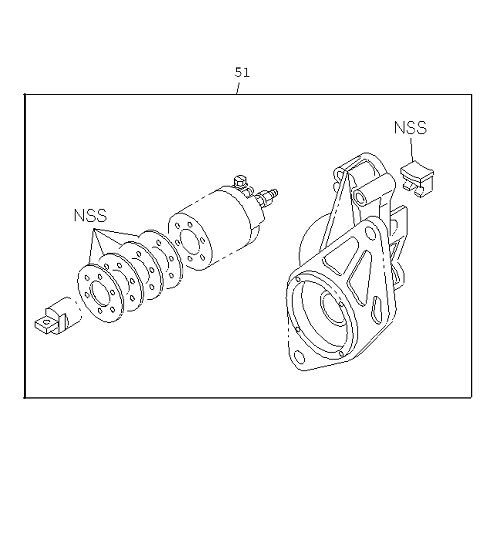

| 51 |
I8-98022 789-0 |
|
COVER SET; DUST ENGAGE SW STARTE |
1 |
|
|
NQR71 |
|
| 73 |
I8-97030 396-0 |
|
STOPPER SET; PINION |
1 |
|
|
NQR71 |
|
| 20 |
I8-98055 296-0 |
|
BRUSH; (+),STARTER |
2 |
|
|
NQR71 |
IDN |
| 41 |
I8-97117 107-A |
|
SCREW; RR COVER,STARTER |
2 |
|
|
NQR71 |
|
| 17 |
I5-81129 113-0 |
|
BEARING; ARMATURE,STARTER |
1 |
|
|
NQR71 |
(A) |
| 16 |
I8-97230 557-0 |
|
ARMATURE; STARTER |
1 |
|
|
NQR71 |
|
| 7 |
I8-98159 731-0 |
|
CLUTCH ASM; PINION,STARTER |
1 |
|
|
NQR71 |
|
| 54 |
I8-98222 101-0 |
|
CLUTCH; PINION,STARTER |
1 |
|
|
NQR71 |
|
| 38 |
I8-97115 763-A |
|
GASKET; RR COVER,STARTER |
1 |
|
|
NQR71 |
|
| 9 |
I8-97025 673-0 |
|
BEARING; GEAR SHAFT STARTER |
1 |
|
|
NQR71 |
(C) |
| 17 |
I8-94228 436-A |
|
BEARING; ARMATURE,STARTER |
1 |
|
|
NQR71 |
(A) |
| 17 |
I8-97030 387-A |
|
BEARING; ARMATURE,STARTER |
1 |
|
|
NQR71 |
(B) |
| 2 |
I8-98055 786-1 |
|
CASE; PINION,STARTER |
1 |
|
|
NQR71 |
IDN |
| 21 |
I8-94242 064-0 |
|
SPRING; BRUSH HOLDER STARTER |
4 |
|
|
NQR71 |
|
| 21 |
I8-94242 064-0 |
|
SPRING; BRUSH HOLDER STARTER |
4 |
|
|
NQR71 |
|
