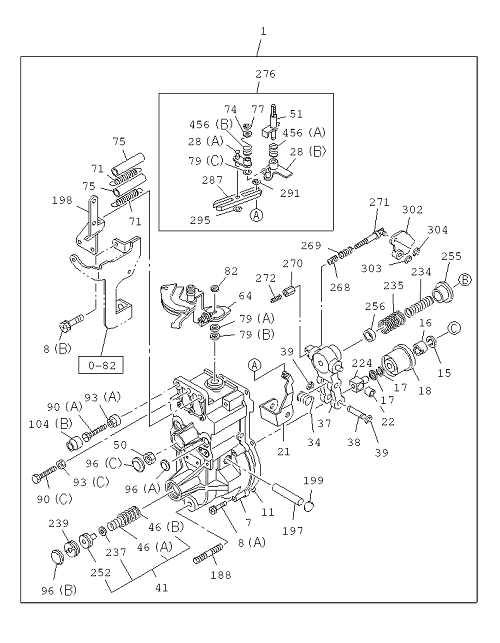

| 17 |
I5-15729 287-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=1.50 |
| 96 |
I5-15729 076-0 |
|
PLUG; LEVER SHAFT,GOV |
1 |
|
|
NQR71 |
(A) |
| 270 |
I5-15729 051-0 |
|
NUT; TORQUE ROD LK,GOV |
1 |
|
|
NQR71 |
|
| 116 |
I8-97121 632-0 |
|
LEVER; ENG STOP,GOV |
1 |
|
|
NQR71 |
|
| 5 |
I1-15779 106-0 |
|
GASKET; GOV TO INJ PUMP HSG |
1 |
|
|
NQR71 |
|
| 305 |
I8-97089 312-0 |
|
SHIM; STOP LEVER,GOV |
AR |
|
|
NQR71 |
T=0.80 |
| 51 |
I1-15729 876-0 |
|
SHAFT; LOAD CONT LEVER,GOV |
1 |
|
|
NQR71 |
|
| 266 |
I0-91110 505-0 |
|
NUT; PIN TO LINK,CONT RACK,GOV |
1 |
|
|
NQR71 |
17.185 M5 |
| 17 |
I9-81325 088-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=0.20 |
| 295 |
I9-81325 445-0 |
|
RING; SNAP |
1 |
|
|
NQR71 |
3306 |
| 17 |
I1-15729 891-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=2.00 |
| 7 |
I8-97142 962-0 |
|
COVER; GOV HSG,INJ PUMP |
1 |
|
|
NQR71 |
|
| 199 |
I5-15729 076-0 |
|
PLUG; LEVER SHAFT,GOV COVER |
2 |
|
|
NQR71 |
|
| 79 |
I1-15729 079-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.30 |
| 305 |
I8-97089 308-0 |
|
SHIM; STOP LEVER,GOV |
AR |
|
|
NQR71 |
T=0.20 |
| 170 |
I5-15723 033-0 |
|
SPRING; LEVER TO LEVER,GOV |
1 |
|
|
NQR71 |
|
| 255 |
I8-94171 173-0 |
|
SEAT; GOV SPRING,INJ PUMP |
1 |
|
|
NQR71 |
|
| 22 |
I8-94368 298-1 |
|
COLLAR; LEVER,GOV |
1 |
|
|
NQR71 |
|
| 90 |
I1-15729 800-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X3 4 |
| 46 |
I8-97115 983-0 |
|
SPRING; GOV,INJ PUMP |
1 |
|
|
NQR71 |
(B) |
| 291 |
I9-81325 445-0 |
|
RING; SNAP,CONT SHAFT,GOV |
1 |
|
|
NQR71 |
3306 |
| 128 |
I1-15729 897-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.60 |
| 48 |
I8-94171 146-1 |
|
SHAFT; GOV,INJ PUMP |
1 |
|
|
NQR71 |
|
| 17 |
I5-15729 286-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=0.50 |
| 272 |
I8-94171 138-0 |
|
SCREW; ADJ,TORQUE CAM ROD,GOV |
1 |
|
|
NQR71 |
|
| 121 |
I9-01910 612-0 |
|
BOLT; ENG STOP LEVER,GOV |
1 |
|
|
NQR71 |
04.665 M6X12 W/LK WASHER |
| 104 |
I8-97085 021-0 |
|
CAP; LOCK NUT,ADJ SCREW |
1 |
|
|
NQR71 |
(A) |
| 133 |
I1-15729 834-0 |
|
BOLT; BRKT FIX,GOV |
2 |
|
|
NQR71 |
|
| 175 |
I8-97176 488-0 |
|
LEVER; GOV,INJ PUMP |
1 |
|
|
NQR71 |
|
| 90 |
I1-15729 642-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(A) M8X62 |
| 128 |
I9-88410 421-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.20 |
| 82 |
I1-15729 236-0 |
|
NUT; CONT LEVER FIX,GOV |
1 |
|
|
NQR71 |
|
| 271 |
I5-15725 009-1 |
|
ROD; TORQUE CAM,GOV |
1 |
|
|
NQR71 |
|
| 93 |
I8-97026 924-0 |
|
NUT; ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
NQR71 |
(C) |
| 34 |
I8-94171 140-1 |
|
SPRING; SPD CONT LEVER,GOV |
1 |
|
|
NQR71 |
|
| 38 |
I1-15729 370-0 |
|
PIN; TENSION LEVER,GOV |
1 |
|
|
NQR71 |
|
| 93 |
I1-15729 807-0 |
|
NUT; ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
NQR71 |
01.531 (B) |
| 79 |
I1-15729 617-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.70 |
| 304 |
I0-91805 504-0 |
|
RING; SNAP,LINK TO CAM PLATE,GOV |
1 |
|
|
NQR71 |
04.040 ID=4 |
| 116 |
I8-97121 631-0 |
|
LEVER; ENG STOP,GOV |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 517-0 |
|
SHIM; LEVER SETTING,GOV |
1 |
|
|
NQR71 |
(C) |
| 305 |
I9-81325 553-0 |
|
SHIM; STOP LEVER,GOV |
1 |
|
|
NQR71 |
T=1.00 |
| 75 |
I1-15729 963-0 |
|
TUBE; RETURN SPRING,STOPPER LEVE |
2 |
|
|
NQR71 |
3306 |
| 2 |
I1-15721 265-0 |
|
HOUSING; GOV,INJ PUMP |
1 |
|
|
NQR71 |
|
| 96 |
I8-94171 148-0 |
|
PLUG; LEVER SHAFT,GOV |
1 |
|
|
NQR71 |
(C) |
| 90 |
I1-15729 842-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X31 |
| 79 |
I1-15729 896-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.60 |
| 423 |
I1-15729 820-0 |
|
SHAFT; CONT,GOV HSG,INJ PUMP |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 618-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.90 |
| 269 |
I5-15723 070-1 |
|
SPRING; ROD OUTER,TORQUE CAM,GOV |
1 |
|
|
NQR71 |
|
| 188 |
I1-15729 790-0 |
|
STUD; COVER |
1 |
|
|
NQR71 |
|
| 28 |
I1-15725 472-0 |
|
LEVER; SUPPORTING,GOV |
1 |
|
|
NQR71 |
(A) |
| 168 |
I1-15729 796-0 |
|
PLUG; CONT SHAFT,GOV HSG |
1 |
|
|
NQR71 |
|
| 96 |
I8-94171 145-0 |
|
PLUG; LEVER SHAFT,GOV |
1 |
|
|
NQR71 |
(B) |
| 119 |
I1-15729 236-0 |
|
NUT; ENG STOP LEVER,GOV |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 081-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.40 |
| 237 |
I1-15729 968-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=0.80 |
| 17 |
I9-81325 553-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=1.00 |
| 37 |
I8-97214 455-0 |
|
LEVER ASM; TENSION,GOV |
1 |
|
|
NQR71 |
|
| 17 |
I9-81325 552-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=0.40 |
| 305 |
I8-97089 311-0 |
|
SHIM; STOP LEVER,GOV |
AR |
|
|
NQR71 |
T=0.60 |
| 1 |
I8-97214 531-3 |
|
GOVERNOR ASM; INJ PUMP |
1 |
|
|
NQR71 |
|
| 303 |
I5-15729 023-0 |
|
RING; SNAP,CAM PLATE,GOV |
1 |
|
|
NQR71 |
3320 |
| 239 |
I8-94171 144-0 |
|
SCREW; GOV |
1 |
|
|
NQR71 |
|
| 163 |
I1-15629 859-0 |
|
GASKET; CONT SHAFT,GOV |
1 |
|
|
NQR71 |
|
| 305 |
I8-97089 309-0 |
|
SHIM; STOP LEVER,GOV |
AR |
|
|
NQR71 |
T=0.30 |
| 90 |
I1-15729 799-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X33 |
| 17 |
I1-15729 893-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=4.00 |
| 79 |
I1-15729 080-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.35 |
| 150 |
I9-81315 065-0 |
|
ADAPTER; GOV HSG,INJ PUMP |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 076-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.95 |
| 128 |
I9-81325 559-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.25 |
| 177 |
I9-81325 445-0 |
|
RING; SNAP,GOV LEVER,INJ PUMP |
1 |
|
|
NQR71 |
|
| 4 |
I1-15779 591-0 |
|
PLATE; START SPRING,GOV |
1 |
|
|
NQR71 |
|
| 256 |
I1-15779 214-0 |
|
SEAT; GOV SPRING |
1 |
|
|
NQR71 |
|
| 237 |
I8-94472 270-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=0.25 |
| 169 |
I5-15723 032-0 |
|
SPRING; LEVER SET,GOV |
1 |
|
|
NQR71 |
|
| 90 |
I1-15729 801-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X35 |
| 237 |
I1-15729 967-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=0.50 |
| 117 |
I8-94336 925-0 |
|
SPRING; STOP LEVER,GOV |
1 |
|
|
NQR71 |
|
| 90 |
I1-15729 803-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X3 7 |
| 130 |
I1-15725 496-0 |
|
LEVER; CONT,GOV |
1 |
|
|
NQR71 |
|
| 13 |
I8-94221 411-0 |
|
KEY; FLYWEIGHT,GOV |
1 |
|
|
NQR71 |
16MM |
| 252 |
I1-15779 003-1 |
|
SCREW; GUIDE |
1 |
|
|
NQR71 |
|
| 180 |
I8-97121 643-0 |
|
PLATE; GOV COVER |
1 |
|
|
NQR71 |
|
| 77 |
I9-88410 201-0 |
|
RING; SNAP,CONT LEVER,GOV |
1 |
|
|
NQR71 |
|
| 64 |
I8-97026 934-1 |
|
LEVER; LOAD CONT,GOV |
1 |
|
|
NQR71 |
|
| 276 |
I1-15725 534-0 |
|
LEVER ASM; LOAD CONT,GOV |
1 |
|
|
NQR71 |
|
| 79 |
I8-97066 844-0 |
|
SHIM; LEVER SETTING,GOV |
1 |
|
|
NQR71 |
(A) |
| 21 |
I8-97223 398-0 |
|
LEVER ASM; GUIDE,GOV |
1 |
|
|
NQR71 |
|
| 267 |
I1-15729 858-0 |
|
BOLT; CONN,CONT RACK,GOV |
1 |
|
|
NQR71 |
|
| 237 |
I8-94472 268-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=0.10 |
| 90 |
I1-15729 843-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X32 |
| 197 |
I5-15725 008-0 |
|
SHAFT; LEVER,GOV COVER |
1 |
|
|
NQR71 |
|
| 93 |
I1-15729 643-0 |
|
NUT; ADJ SCREW LK,INJ PUMP GOV |
1 |
|
|
NQR71 |
03.308 (A) |
| 104 |
I8-97085 022-0 |
|
CAP; LOCK NUT,ADJ SCREW |
1 |
|
|
NQR71 |
(B) |
| 46 |
I8-97115 982-0 |
|
SPRING; GOV,INJ PUMP |
1 |
|
|
NQR71 |
(A) |
| 125 |
I8-94171 168-0 |
|
CAP; STOP LEVER SPRING,GOV |
1 |
|
|
NQR71 |
|
| 237 |
I8-94472 269-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=0.20 |
| 15 |
I5-15729 034-0 |
|
WASHER; LK,FLYWEIGHT FIX,GOV |
1 |
|
|
NQR71 |
|
| 287 |
I1-15725 542-0 |
|
LEVER; GOV |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 619-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.80 |
| 305 |
I8-97089 310-0 |
|
SHIM; STOP LEVER,GOV |
AR |
|
|
NQR71 |
T=0.40 |
| 41 |
I8-97085 009-0 |
|
SPRING CAPSULE; IDLE CONT,GOV |
1 |
|
|
NQR71 |
|
| 71 |
I8-97026 929-0 |
|
SPRING; CONT LEVER,GOV |
2 |
|
|
NQR71 |
|
| 50 |
I8-94171 147-0 |
|
NUT; GOV SHAFT,INJ PUMP |
1 |
|
|
NQR71 |
|
| 128 |
I9-81325 558-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.40 |
| 24 |
I5-15723 035-0 |
|
SPRING; START,GOV,INJ PUMP |
1 |
|
|
NQR71 |
|
| 151 |
I0-50540 818-0 |
|
BOLT; ADAPTER,GOV HSG,INJ PUMP |
1 |
|
|
NQR71 |
M8X18 W/LK WASHER |
| 39 |
I9-88410 201-0 |
|
RING; SNAP,LEVER PIN,GOV |
2 |
|
|
NQR71 |
|
| 74 |
I9-09160 506-0 |
|
WASHER; LEVER SPR |
1 |
|
|
NQR71 |
00.206 ID=6.4 |
| 90 |
I1-15729 761-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(C) M8X65 |
| 128 |
I1-15729 898-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.80 |
| 224 |
I8-94171 142-0 |
|
SHIFTER; TENSION LEVER,GOV |
1 |
|
|
NQR71 |
|
| 235 |
I8-97214 456-0 |
|
SPRING; OUTER,GOV,INJ PUMP |
1 |
|
|
NQR71 |
|
| 90 |
I1-15729 802-0 |
|
SCREW; FULL LOAD ADJ,GOV |
1 |
|
|
NQR71 |
(B) M6X36 |
| 8 |
I5-15729 033-0 |
|
BOLT; GOV COVER,INJ PUMP |
5 |
|
|
NQR71 |
(A) |
| 126 |
I1-15729 853-0 |
|
GASKET; STOP LEVER,GOV |
1 |
|
|
NQR71 |
|
| 237 |
I8-94472 271-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=1.00 |
| 23 |
I1-15725 928-0 |
|
LINK; LEVER TO CONT RACK,GOV |
1 |
|
|
NQR71 |
|
| 456 |
I8-94413 728-0 |
|
SPRING; LEVER,GOV |
1 |
|
|
NQR71 |
(A) |
| 234 |
I8-97214 457-0 |
|
SPRING; INNER,GOV,INJ PUMP |
1 |
|
|
NQR71 |
|
| 128 |
I9-81325 560-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.35 |
| 8 |
I1-15729 535-0 |
|
BOLT; GOV COVER,INJ PUMP |
2 |
|
|
NQR71 |
(B) |
| 79 |
I1-15729 082-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.50 |
| 11 |
I1-15779 107-0 |
|
GASKET; COVER TO HSG,GOV |
1 |
|
|
NQR71 |
|
| 456 |
I1-15723 295-0 |
|
SPRING; LEVER,GOV |
1 |
|
|
NQR71 |
03.306 (B) |
| 128 |
I9-81325 557-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.30 |
| 18 |
I5-15729 372-0 |
|
SLEEVE; GOV |
1 |
|
|
NQR71 |
|
| 16 |
I9-81325 086-0 |
|
NUT; FLYWEIGHT FIX,GOV |
1 |
|
|
NQR71 |
|
| 3 |
I5-15729 071-0 |
|
BOLT; GOV HSG,INJ PUMP |
1 |
|
|
NQR71 |
(B) M6X16 |
| 128 |
I9-81325 556-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.50 |
| 128 |
I1-15729 899-0 |
|
SHIM; CONT SHAFT,GOV |
AR |
|
|
NQR71 |
T=0.90 |
| 17 |
I9-81325 551-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=0.30 |
| 28 |
I1-15725 485-0 |
|
LEVER; SUPPORTING,GOV |
1 |
|
|
NQR71 |
(B) |
| 268 |
I5-15723 056-0 |
|
SPRING; ROD INNER,TORQUE CAM,GOV |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 077-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.20 |
| 198 |
I8-97085 014-0 |
|
BRACKET; COVER |
1 |
|
|
NQR71 |
|
| 237 |
I1-15729 966-0 |
|
SHIM; SPR CAPSULE,TIMER,INJ PUMP |
AR |
|
|
NQR71 |
T=0.30 |
| 17 |
I1-15729 892-0 |
|
SHIM; FLYWEIGHT SLEEVE,GOV |
AR |
|
|
NQR71 |
T=3.00 |
| 12 |
I5-15722 017-0 |
|
FLYWEIGHT ASM; GOV |
1 |
|
|
NQR71 |
|
| 179 |
I8-94171 132-0 |
|
LEVER; SPD ADJ,GOV |
1 |
|
|
NQR71 |
|
| 79 |
I1-15729 078-0 |
|
SHIM; LEVER SETTING,GOV |
AR |
|
|
NQR71 |
(B) T=0.25 |
| 3 |
I5-15729 027-0 |
|
BOLT; GOV HSG,INJ PUMP |
5 |
|
|
NQR71 |
(A) M6X15 |
| 302 |
I8-97214 458-0 |
|
PLATE; CAM,GOV |
1 |
|
|
NQR71 |
|
