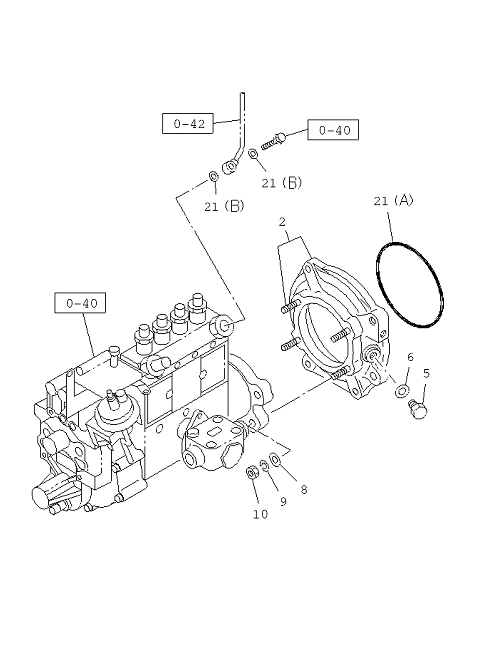

0-86 | MISCELLANEOUS PARTS; INJECTION PUMP
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I8-97039 200-1 | GASKET; INJ PUMP | 1 | 1208- | NQR71 | (A) | ||
| 10 | I5-15639 002-0 | NUT; HSG BRKT,INJ PUMP | 4 | 1208- | NQR71 | |||
| 2 | I8-97123 609-0 | BRACKET; HSG & TIMER,INJ PUMP | 1 | 1208- | NQR71 | |||
| 8 | I9-09164 510-0 | WASHER; PL,HSG BRKT,INJ PUMP | 4 | 1208- | NQR71 | 06.896 ID=10.5 | ||
| 9 | I1-09985 185-0 | WASHER; LK,HSG BRKT,INJ PUMP | 4 | 1208- | NQR71 | 00.002 ID=10.2 | ||
| 6 | I1-15729 787-0 | GASKET; PLUG,INJ PUMP BRKT | 1 | 1208- | NQR71 | 3308 | ||
| 21 | I9-09572 014-0 | GASKET; INJ PUMP | 2 | 1208- | NQR71 | 03.107 (B) ID=14.2 OD=2 3.0 IDN | ||
| 5 | I8-97026 919-0 | PLUG; HSG BRKT,INJ PUMP | 1 | 1208- | NQR71 |
