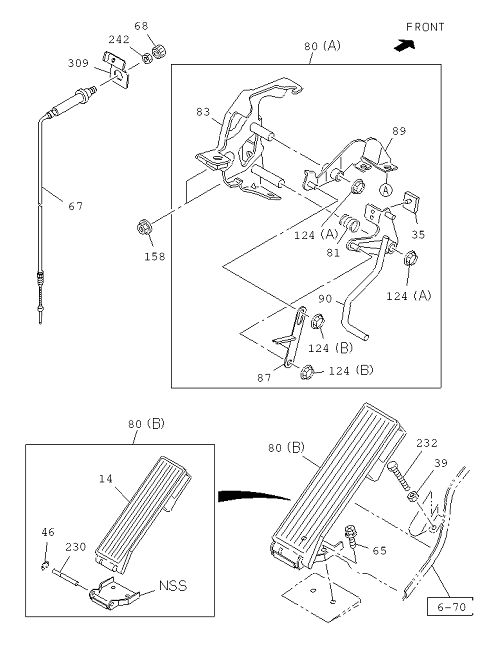

1-01 | ACCELERATOR PEDAL AND CONTROL
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 314 | I8-98120 569-1 | BRACKET; ACCEL CABLE | 1 | 1208- | NQR71 | (E) | ||
| 238 | I8-97118 729-0 | LEVER; ACCEL CONT | 1 | 1208- | NQR71 | |||
| 14 | I8-97853 062-2 | PAD; PEDAL,ACCEL | 1 | 1208- | NQR71 | |||
| 46 | I0-91805 504-0 | RING; SNAP,ACCEL CONT PEDAL | 1 | 1208- | NQR71 | |||
| 659 | I0-95235 532-0 | CLIP; ACCEL CONT CABLE | 1 | 1208- | NQR71 | 04.686 (B) ID=16 L=2 0 | ||
| 729 | I8-97118 760-0 | COLLAR; JOINT | 1 | 1208- | NQR71 | |||
| 124 | I8-94279 042-0 | NUT; LEVER | 2 | 1208- | NQR71 | (B) ID=4.9 PUSH NUT | ||
| 385 | I0-91180 106-0 | NUT; CLIP | 2 | 1208- | NQR71 | 01. 062 M6 FLANGE | ||
| 108 | I8-97120 004-0 | BUSHING; ENG CONT | 1 | 1208- | NQR71 | |||
| 314 | I8-98094 801-1 | BRACKET; ACCEL CABLE | 1 | 1208- | NQR71 | (A) IDN | ||
| 67 | I8-98124 108-3 | CABLE ASM; IDLE CONT | 1 | 1208- | NQR71 | |||
| 66 | I0-91180 108-0 | NUT; BRKT | 1 | 1208- | NQR71 | |||
| 90 | I8-98059 513-0 | LEVER; RELAY,ENG CONT | 1 | 1208- | NQR71 | |||
| 100 | I8-97118 737-0 | SHAFT ASM; ENG CONT | 1 | 1208- | NQR71 | |||
| 158 | I8-94279 060-0 | NUT; BRKT | 2 | 1208- | NQR71 | 08.857 M8 FLANGE | ||
| 101 | I0-91610 708-0 | WASHER; ENG CONT | 2 | 1208- | NQR71 | 1276 | ||
| 65 | I8-94310 730-0 | BOLT | 2 | 1208- | NQR71 | |||
| 124 | I8-97022 566-0 | NUT; LEVER | 2 | 1208- | NQR71 | 09.011 (A) ID=9.9 PUSH NUT | ||
| 35 | I8-97302 305-0 | STOPPER; ACCEL PEDAL | 1 | 1208- | NQR71 | |||
| 39 | I0-91110 508-0 | NUT; ACCEL PEDAL STOPPER | 1 | 1208- | NQR71 | |||
| 89 | I8-97868 042-0 | LEVER; RELAY | 1 | 1208- | NQR71 | |||
| 80 | I8-98038 416-1 | LINK ASM; ENG CONT | 1 | 1208- | NQR71 | |||
| 314 | I8-98100 387-1 | BRACKET; ACCEL CABLE | 1 | 1208- | NQR71 | (D) | ||
| 392 | I5-09707 030-1 | CLIP; ACCEL CONT CABLE | 1 | 1208- | NQR71 | 02.559 L=250 IDN | ||
| 447 | I0-91180 108-0 | NUT; BRKT,CONT WIRE | 2 | 1208- | NQR71 | 01. 062 (A) M8 FLANGE | ||
| 175 | I0-28650 825-0 | BOLT; BRKT,ACCEL CABLE | 1 | 1208- | NQR71 | 06.216 M8X25 FLANGE IDN | ||
| 384 | I0-28650 825-0 | BOLT; CLIP,CONT CABLE | 2 | 1208- | NQR71 | 06.216 (A) M8X25 FLANGE IDN | ||
| 230 | I8-97853 064-0 | PIN; JOINT,ACCEL PEDAL TO BRKT | 1 | 1208- | NQR71 | |||
| 242 | I8-97853 233-0 | NUT; ACCEL PEDAL | 1 | 1208- | NQR71 | M18 | ||
| 232 | I8-97378 461-0 | BOLT; STOPPER,ACCEL PEDAL | 1 | 1208- | NQR71 | M8X45 | ||
| 87 | I8-97853 204-1 | LINK; ENG CONT | 1 | 1208- | NQR71 | |||
| 309 | I8-98124 981-1 | BRACKET; IDLE CONT CABLE | 1 | 1208- | NQR71 | |||
| 384 | I0-28050 612-0 | BOLT; CLIP,CONT CABLE | 1 | 1208- | NQR71 | 03 . 162 (B) M6X12 FLANGE | ||
| 659 | I0-95235 552-0 | CLIP; ACCEL CONT CABLE | 1 | 1208- | NQR71 | 04. 785 (A) ID=16 L=2 8 | ||
| 83 | I8-98093 900-0 | BRACKET; CONT LINK | 1 | 1208- | NQR71 | |||
| 54 | I7-11117 040-A | CABLE; ENG CONT | 1 | 1208- | NQR71 | |||
| 54 | I8-98099 702-3 | CABLE; ENG CONT | 1 | 1208- | NQR71 | |||
| 272 | I0-28050 816-0 | BOLT; LEVER | 3 | 1208- | NQR71 | 02.343 M8X16 FLANGE | ||
| 314 | I8-98120 570-0 | BRACKET; ACCEL CABLE | 1 | 1208- | NQR71 | (C) | ||
| 80 | I8-97853 061-A | LINK ASM; ENG CONT | 1 | 1208- | NQR71 | |||
| 314 | I8-98120 571-0 | BRACKET; ACCEL CABLE | 1 | 1208- | NQR71 | (B) | ||
| 81 | I8-98031 665-0 | SPRING; RETURN,ENG CONT LEVER | 1 | 1208- | NQR71 | |||
| 104 | I0-91180 108-0 | NUT; ENG CONT | 1 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 68 | I8-97853 765-1 | KNOB; IDLE CONT | 1 | 1208- | NQR71 | |||
| 447 | I0-91180 106-0 | NUT; BRKT,CONT WIRE | 1 | 1208- | NQR71 | 01. 062 (B) M6 FLANGE |
