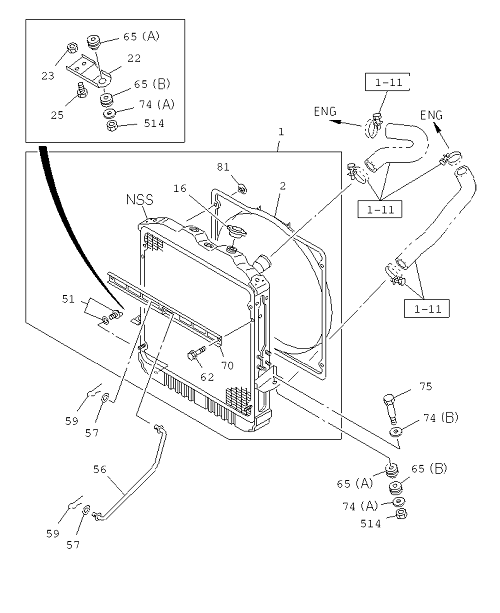

| 25 |
I0-28651 030-0 |
|
BOLT; BRKT |
2 |
1208- |
|
NQR71 |
00.029 M10X3 0 FLANGE |
| 514 |
I0-91180 108-0 |
|
NUT; RAD |
2 |
1208- |
|
NQR71 |
01.062 M8 FLANGE |
| 57 |
I0-91610 510-0 |
|
WASHER; PL,STAY |
2 |
1208- |
|
NQR71 |
17.198 ID=10.5 |
| 70 |
I8-98034 644-0 |
|
STAY; RAD |
1 |
1208- |
|
NQR71 |
|
| 59 |
I8-97359 052-0 |
|
PIN; SNAP,STAY |
2 |
1208- |
|
NQR71 |
L=32.6 |
| 2 |
I8-98095 606-0 |
|
GUIDE; FAN |
1 |
1208- |
|
NQR71 |
|
| 65 |
I8-94249 347-A |
|
INSULATOR; RAD |
2 |
1208- |
|
NQR71 |
01.270 (B) IDN |
| 16 |
I8-98096 226-0 |
|
CAP; RAD |
1 |
1208- |
|
NQR71 |
|
| 23 |
I0-91180 110-0 |
|
NUT; RAD MTG |
2 |
1208- |
|
NQR71 |
03.162 M10 FLANGE |
| 1 |
I8-98095 587-2 |
|
RADIATOR ASM |
1 |
1208- |
|
NQR71 |
|
| 74 |
I0-91610 710-0 |
|
WASHER; PL,CUSHION RUBBER |
1 |
1208- |
|
NQR71 |
(B) ID=10.5 |
| 51 |
I8-97171 437-0 |
|
PLUG; DRAIN |
1 |
1208- |
|
NQR71 |
W/GASKET |
| 62 |
I0-28050 812-A |
|
BOLT; STAY |
2 |
1208- |
|
NQR71 |
02.343 M8X12 FLANGE |
| 75 |
I8-94249 446-0 |
|
BOLT; CUSHION RUBBER,RAD MTG |
1 |
1208- |
|
NQR71 |
01.274 M8X63 |
| 74 |
I8-97359 049-1 |
|
WASHER; PL,CUSHION RUBBER |
2 |
1208- |
|
NQR71 |
(A) ID=8.5 OD=36 |
| 56 |
I8-98058 497-0 |
|
STAY; RAD |
1 |
1208- |
|
NQR71 |
|
| 22 |
I8-97074 093-0 |
|
BRACKET; RAD MTG |
1 |
1208- |
|
NQR71 |
|
| 65 |
I8-94249 346-A |
|
INSULATOR; RAD |
2 |
1208- |
|
NQR71 |
01.270 (A) IDN |
| 81 |
I8-97088 810-A |
|
SCREW; FAN GUIDE,RAD |
2 |
1208- |
|
NQR71 |
|
