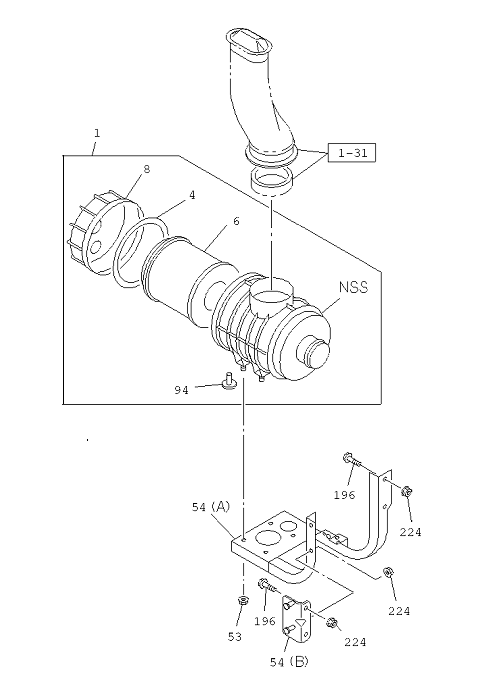

1-30 | AIR CLEANER
ELF
NQR 71
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 224 | I0-91180 110-0 | NUT; BRKT | 5 | 1208- | NQR71 | 03.162 M10 FLANGE | ||
| 6 | I6-97062 294-0 | FILTER; AIR CLEANER | 1 | 1208- | NQR71 | (IADG) | ||
| 54 | I8-98032 125-1 | BRACKET; ACL | 1 | 1208- | NQR71 | (B) | ||
| 4 | I8-97352 113-0 | GASKET; COVER TO BODY | 1 | 1208- | NQR71 | |||
| 54 | I8-98047 140-3 | BRACKET; ACL | 1 | 1208- | NQR71 | (A) | ||
| 54 | I8-98251 988-0 | BRACKET; ACL | 1 | 1401- | NQR71 | (A) | ||
| 94 | I8-97093 694-0 | VALVE; VACUATOR | 1 | 1208- | NQR71 | |||
| 53 | I0-91180 108-0 | NUT; ACL | 4 | 1208- | NQR71 | 01.062 M8 FLANGE | ||
| 196 | I0-28651 030-0 | BOLT; BRKT,ACL | 2 | 1208- | NQR71 | 00.029 M10X3 0 FLANGE | ||
| 196 | I0-28651 035-0 | BOLT; BRKT,ACL | 2 | 1208- | NQR71 | 02.277 M10X35 FLANGE IDN | ||
| 1 | I8-98122 915-0 | CLEANER ASM; AIR | 1 | 1208- | NQR71 | |||
| 6 | I8-97062 294-0 | FILTER; ACL | 1 | 1208- | NQR71 | |||
| 8 | I8-98050 434-1 | COVER ASM; ACL | 1 | 1208- | NQR71 |
