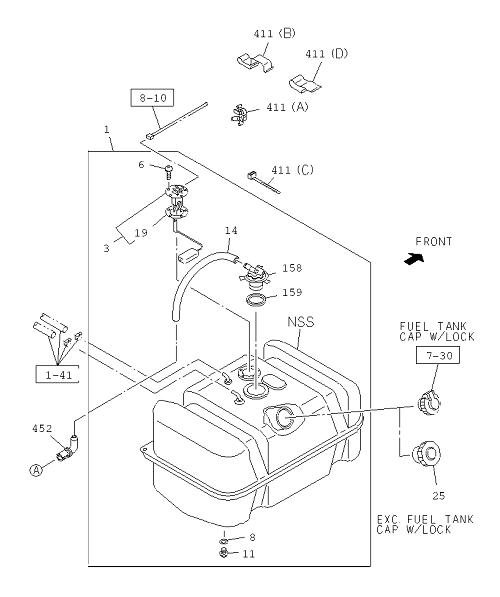

| 3 |
I8-98302 536-0 |
|
UNIT; FUEL TANK, SUB |
1 |
1208- |
|
NQR71 |
LOCAL FUEL TANK |
| 158 |
I8-97179 645-0 |
|
VALVE; ROLL OVER & FLOAT |
1 |
1208- |
|
NQR71 |
IDN |
| 485 |
I0-01259 300-0 |
|
HOSE; FUEL |
1 |
1208- |
|
NQR71 |
03.003 (A) L=360 SERVICED BY L=3000 |
| 43 |

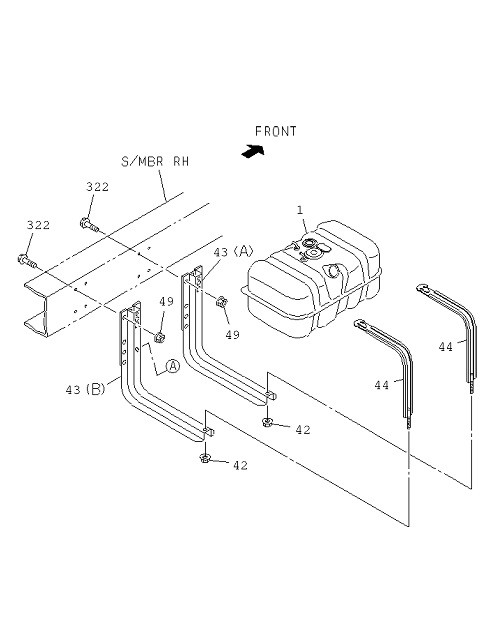

I8-97384 062-6 |
|
BRACKET; FUEL TANK |
1 |
1208- |
|
NQR71 |
(B) IDN |
| 1 |
I8-98062 738-4 |
|
TANK; FUEL |
1 |
1208- |
|
NQR71 |
100L |
| 411 |
I1-09709 287-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
1208- |
|
NQR71 |
06.525 (A) ID=5-12 L=18 |
| 6 |
I0-36220 512-0 |
|
SCREW; TANK UNIT TO SUB FUEL TAN |
5 |
1208- |
|
NQR71 |
M5X12 W/LK WASHER |
| 485 |

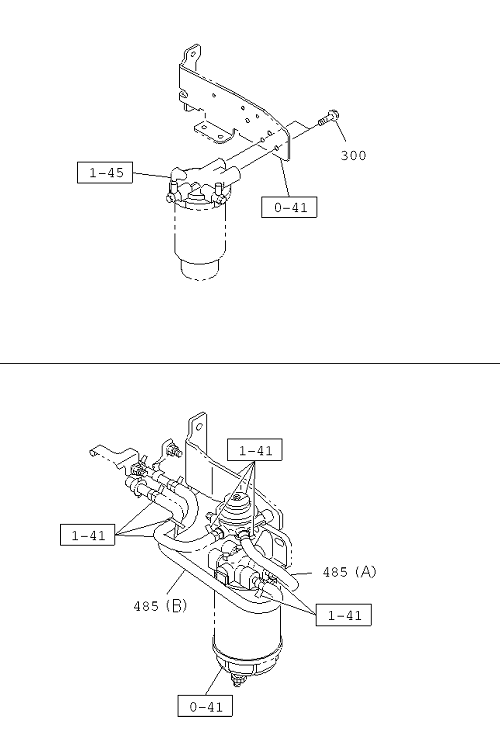

I0-01259 300-0 |
|
HOSE; FUEL |
1 |
1208- |
|
NQR71 |
FUEL FILTER DUAL(S6B) 03.003 (B) L=250 SERVICED BY L=3000 |
| 411 |
I5-09707 031-1 |
|
CLIP; FUEL TANK UNIT HARNESS |
1 |
1208- |
|
NQR71 |
03.162 (C) L=140 IDN |
| 25 |
I8-97387 179-0 |
|
CAP; FILLER,FUEL TANK |
1 |
1208- |
|
NQR71 |
EXC. FUEL TANK CAP W/LOCK |
| 411 |
I8-97371 947-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
3 |
1208- |
|
NQR71 |
(B) T=4.5 & 9 |
| 300 |
I0-28650 820-0 |
|
BOLT; BRKT TO BODY |
2 |
1208- |
|
NQR71 |
01.531 M8X2 0 FLANGE IDN |
| 452 |
I8-97357 261-0 |
|
BREATHER; FUEL TANK |
1 |
1208- |
|
NQR71 |
IDN |
| 14 |
I8-98157 809-0 |
|
HOSE; BREATHER,OUTLET |
1 |
1208- |
|
NQR71 |
L=420 IDN |
| 159 |
I8-97326 488-0 |
|
SEAL; ROLL OVER & FLOAT VALVE |
1 |
1208- |
|
NQR71 |
IDN |
| 19 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
1208- |
|
NQR71 |
|
| 43 |
I8-97384 060-5 |
|
BRACKET; FUEL TANK |
1 |
1208- |
|
NQR71 |
(A) IDN |
| 11 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
1 |
1208- |
|
NQR71 |
01.453 M14X14 IDN |
| 411 |
I8-97371 951-0 |
|
CLIP; FUEL TANK UNIT HARNESS |
2 |
1208- |
|
NQR71 |
(D) T=5.5 |
| 44 |
I8-98368 249-0 |
|
BAND; FUEL TANK |
2 |
1208- |
|
NQR71 |
L=795 IDN |
| 1 |
I7-22227 014-A |
|
TANK; FUEL |
1 |
1208- |
|
NQR71 |
LOCAL FUEL TANK |
| 3 |
I8-98056 705-0 |
|
UNIT; FUEL TANK, SUB |
1 |
1208- |
|
NQR71 |
100L |
| 8 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
1208- |
|
NQR71 |
03.107 ID=14.2 OD=23.0 IDN |
| 42 |
I9-09130 408-0 |
|
NUT; SUPPORT BELT |
2 |
1208- |
|
NQR71 |
M8 FLANGE |
